Body Control Module (BCM) C1

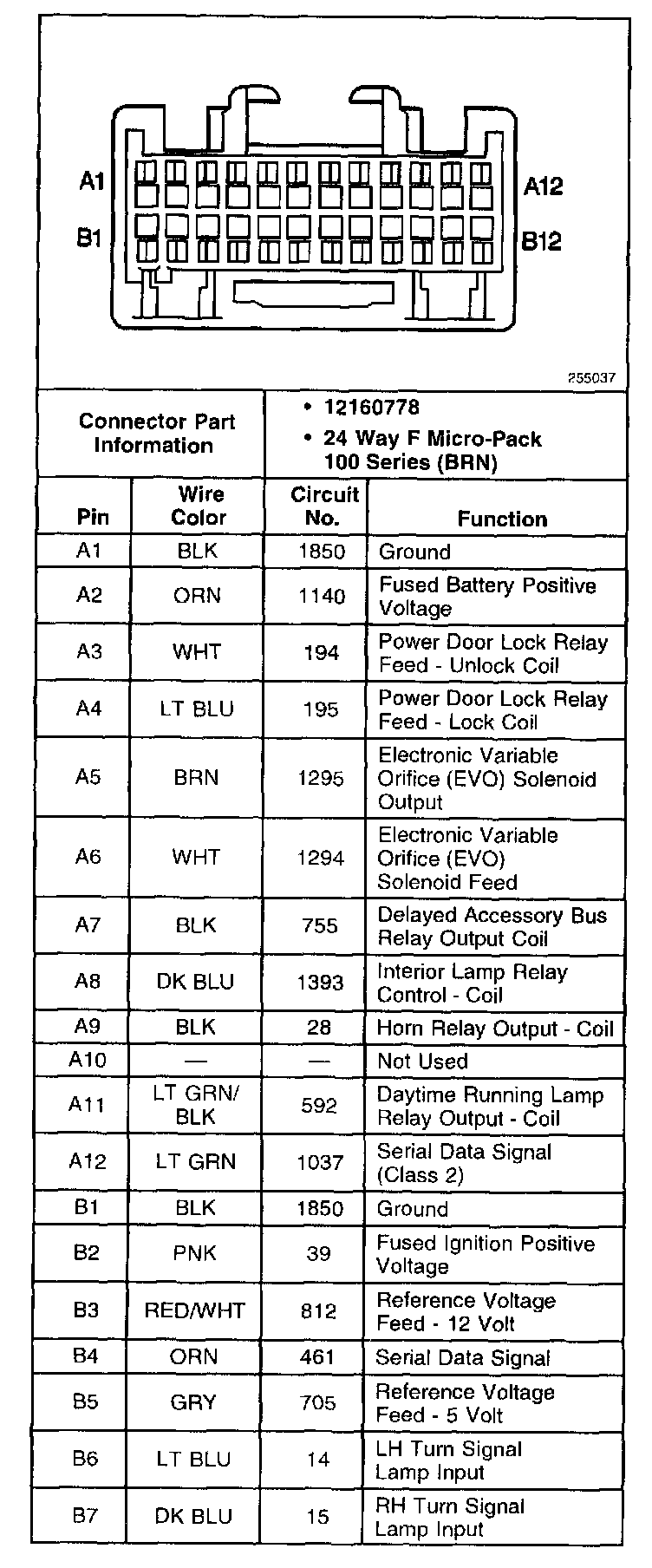

C-1 Body Control Module (Part 1 Of 2):
C-1 Body Control Module (Part 2 Of 2):
