Manifold Pressure/Vacuum Sensor: Service and Repair

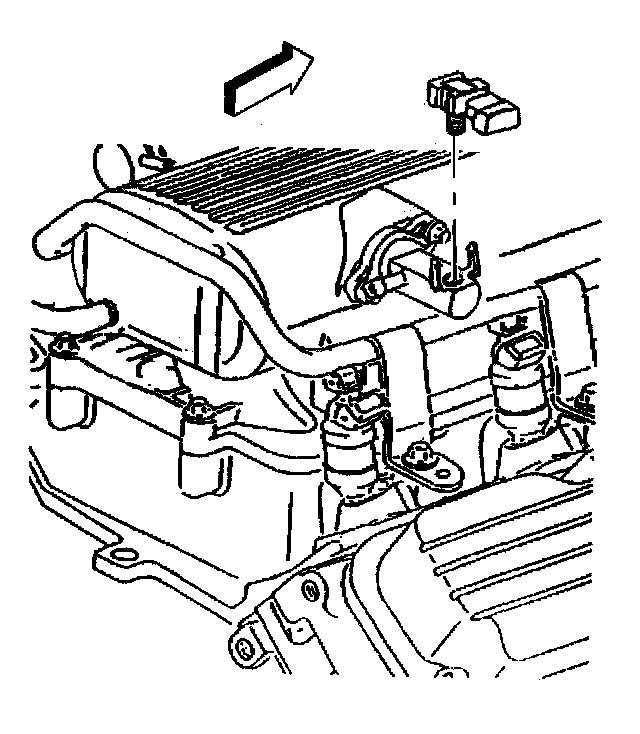

REMOVAL PROCEDURE
1. Disconnect the MAP sensor electrical connector.
2. Carefully open the MAP sensor retaining tabs just enough to remove the MAP sensor from the vacuum source.
3. Pull the MAP sensor straight out of vacuum source.

INSTALLATION PROCEDURE
1. Ensure that the seal is correctly installed on MAP sensor and that the seal is not damaged.
2. Install the MAP sensor to the vacuum source. Ensure the retaining tabs engage.
3. Connect the MAP sensor electrical connector.
