Manual Transmission/Transaxle

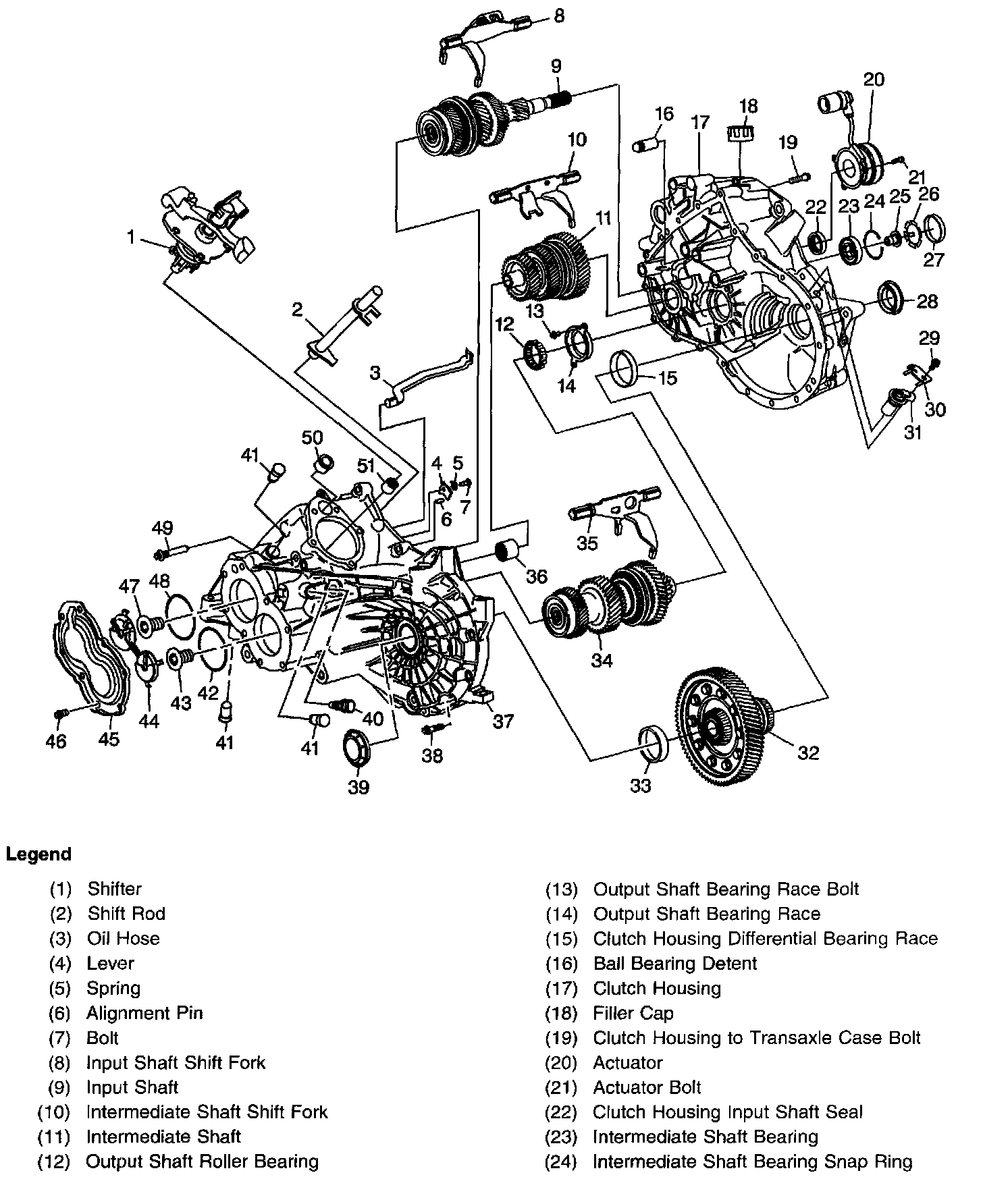

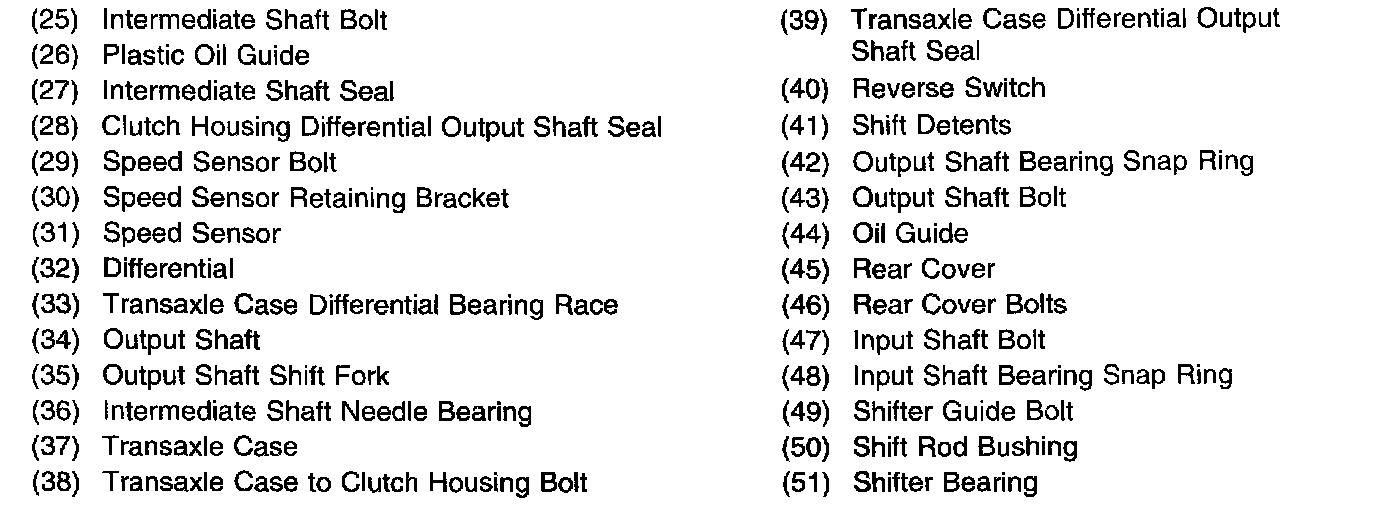

Case Components

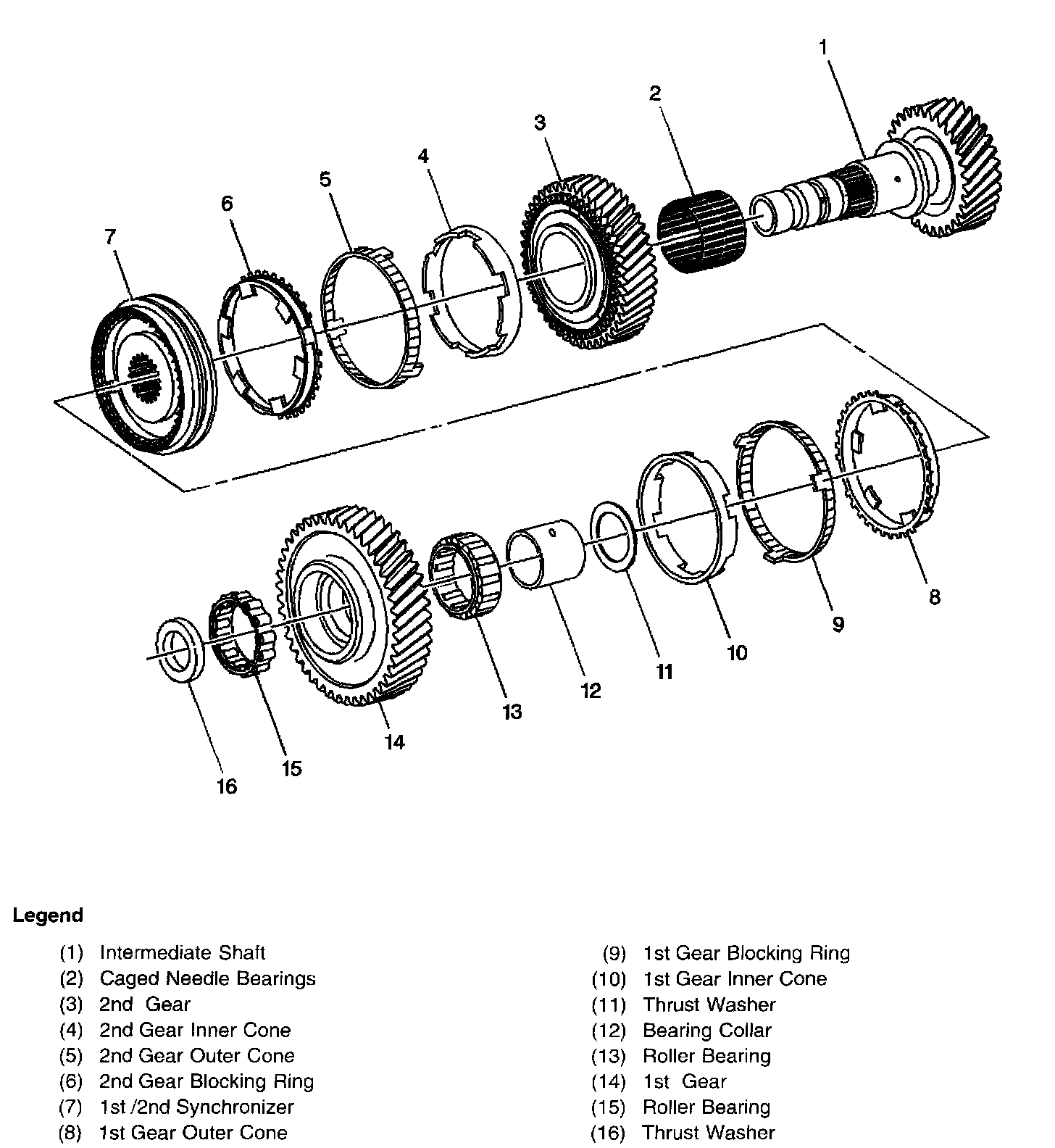

Intermediate Shaft Components

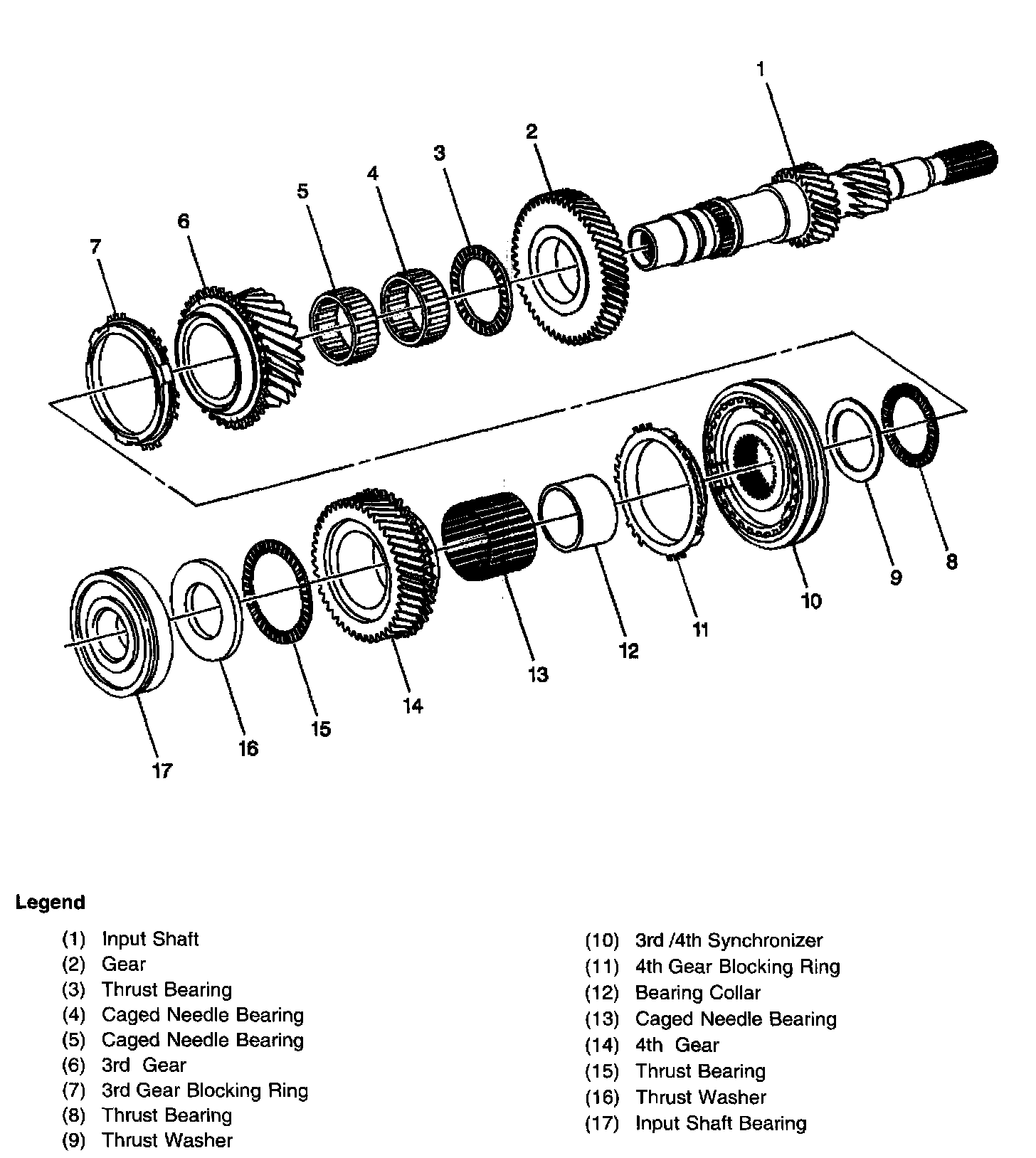

Input Shaft Components

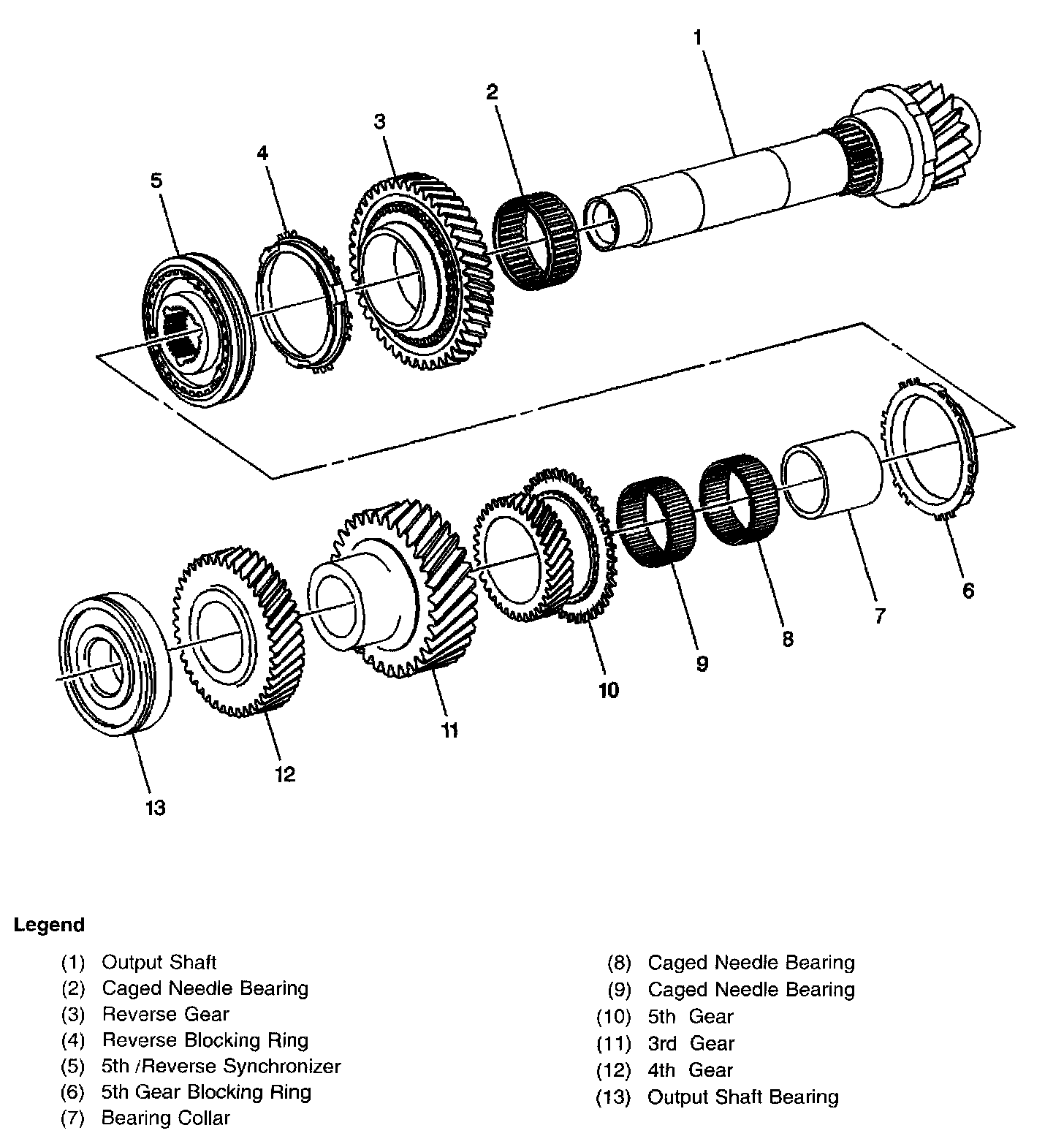

Output Shaft Components

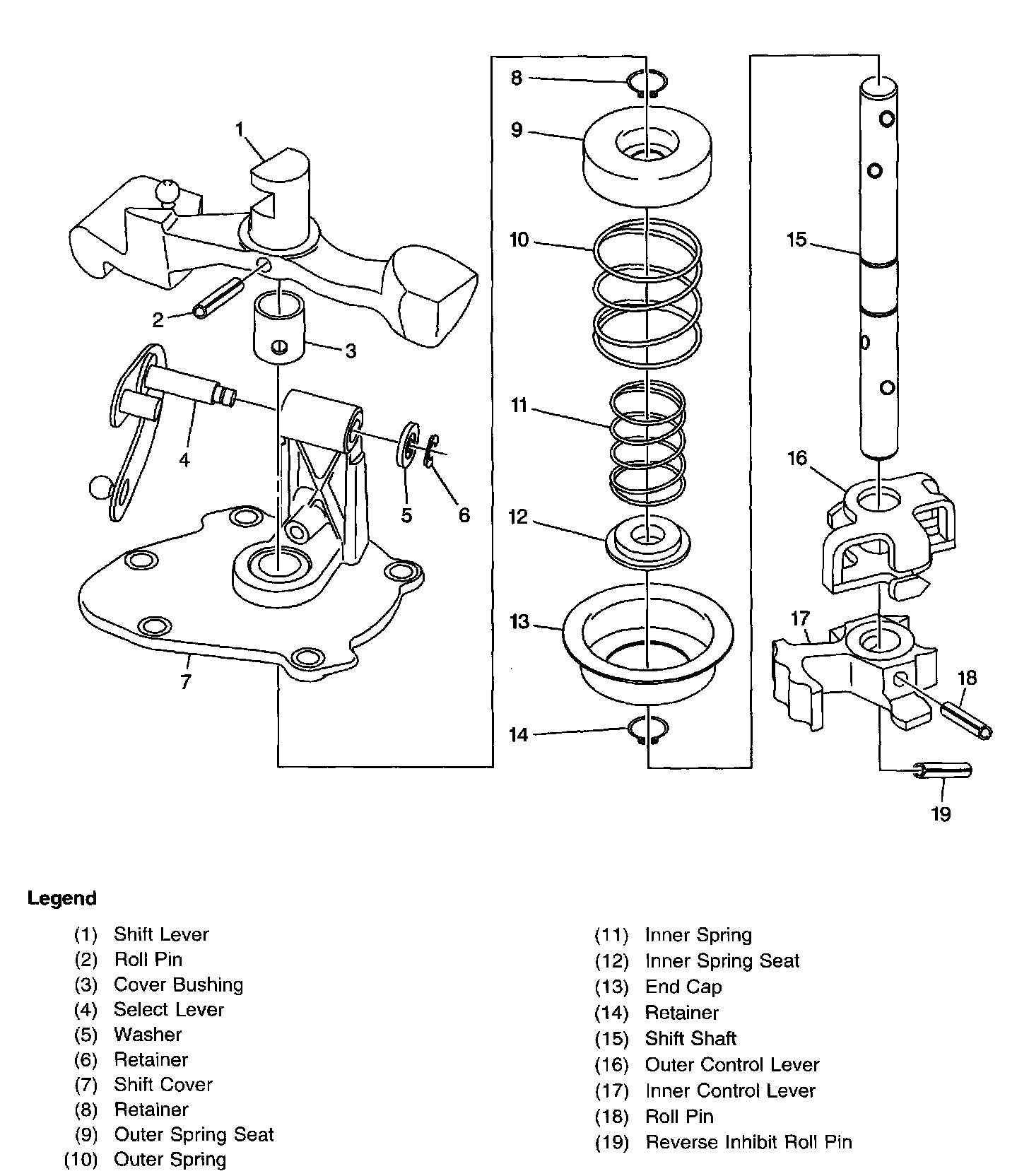

Shifter Components

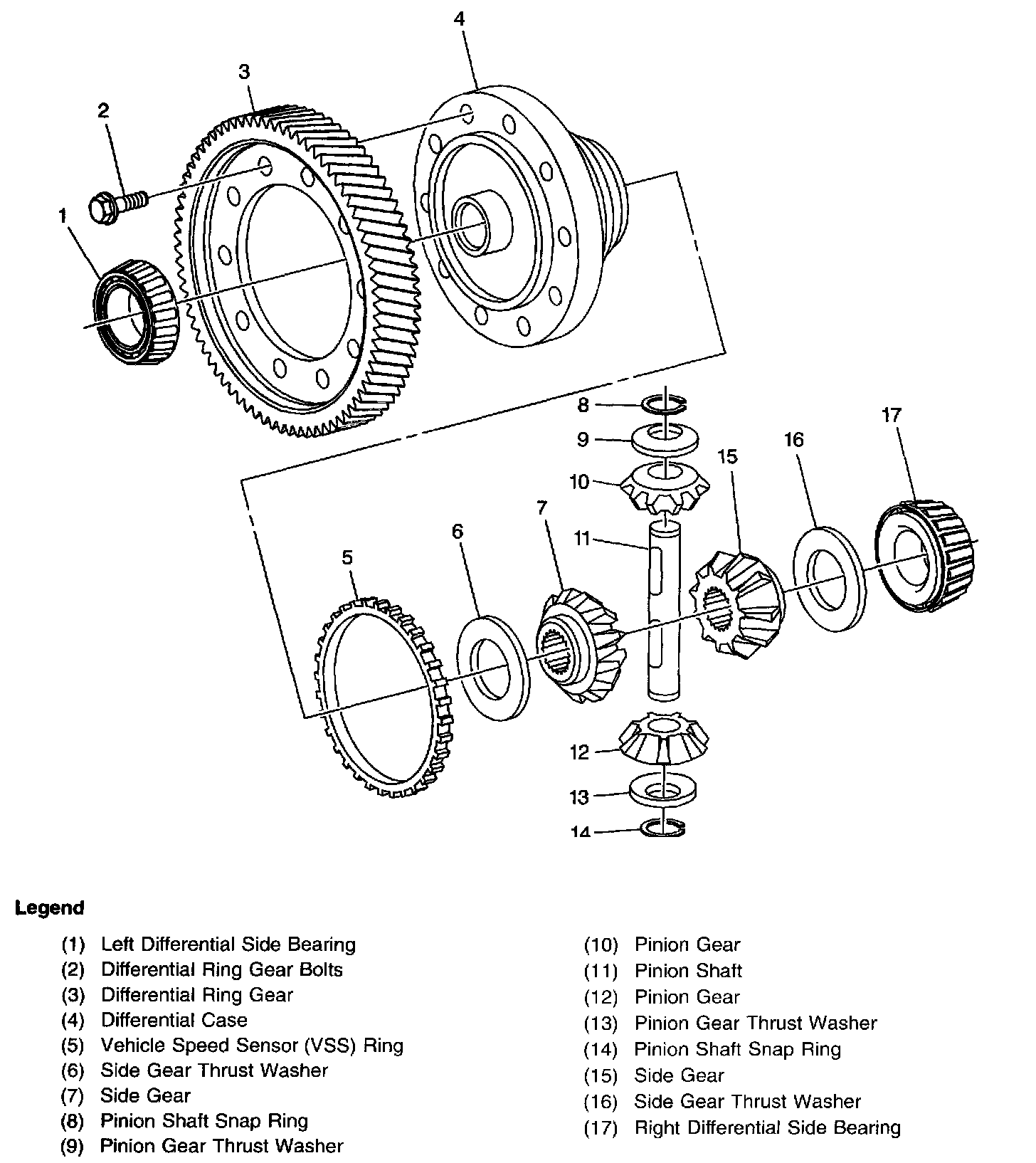

Differential Components
