Drive Belt: Service and Repair

Removal Procedure

^ Tools Required
- J 37059 Accessory Drive Belt Tensioner Wrench

Caution: To avoid personal Injury when rotating the accessory drive belt tensioner, use a tight fitting 13 mm wrench that is at least 46 cm (18 inch) long.

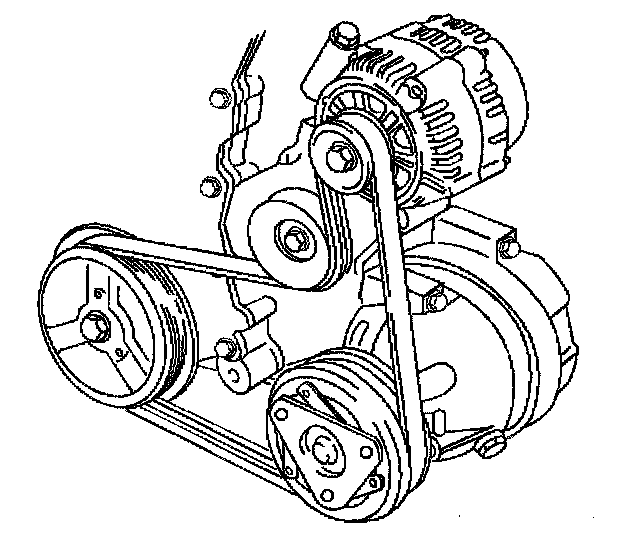

Use J 37059 in order to remove the accessory drive belt by rotating the tensioner counter clockwise.

Installation Procedure

^ Tools Required
- J 37059 Accessory Drive Belt Tensioner Wrench

Caution: To avoid personal Injury when rotating the accessory drive belt tensioner, use a tight fitting 13 mm wrench that is at least 46 cm (18 inch) long.

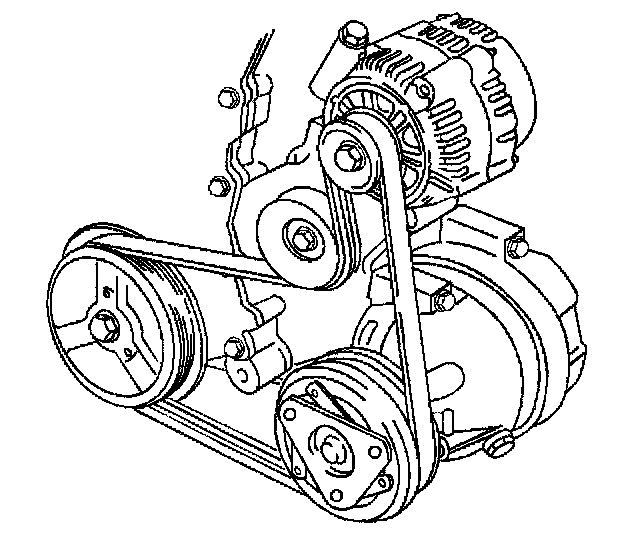

Use J 37059 in order to install the accessory drive belt by rotating the tensioner counter clockwise.
