Automatic Transmission Controls Schematics

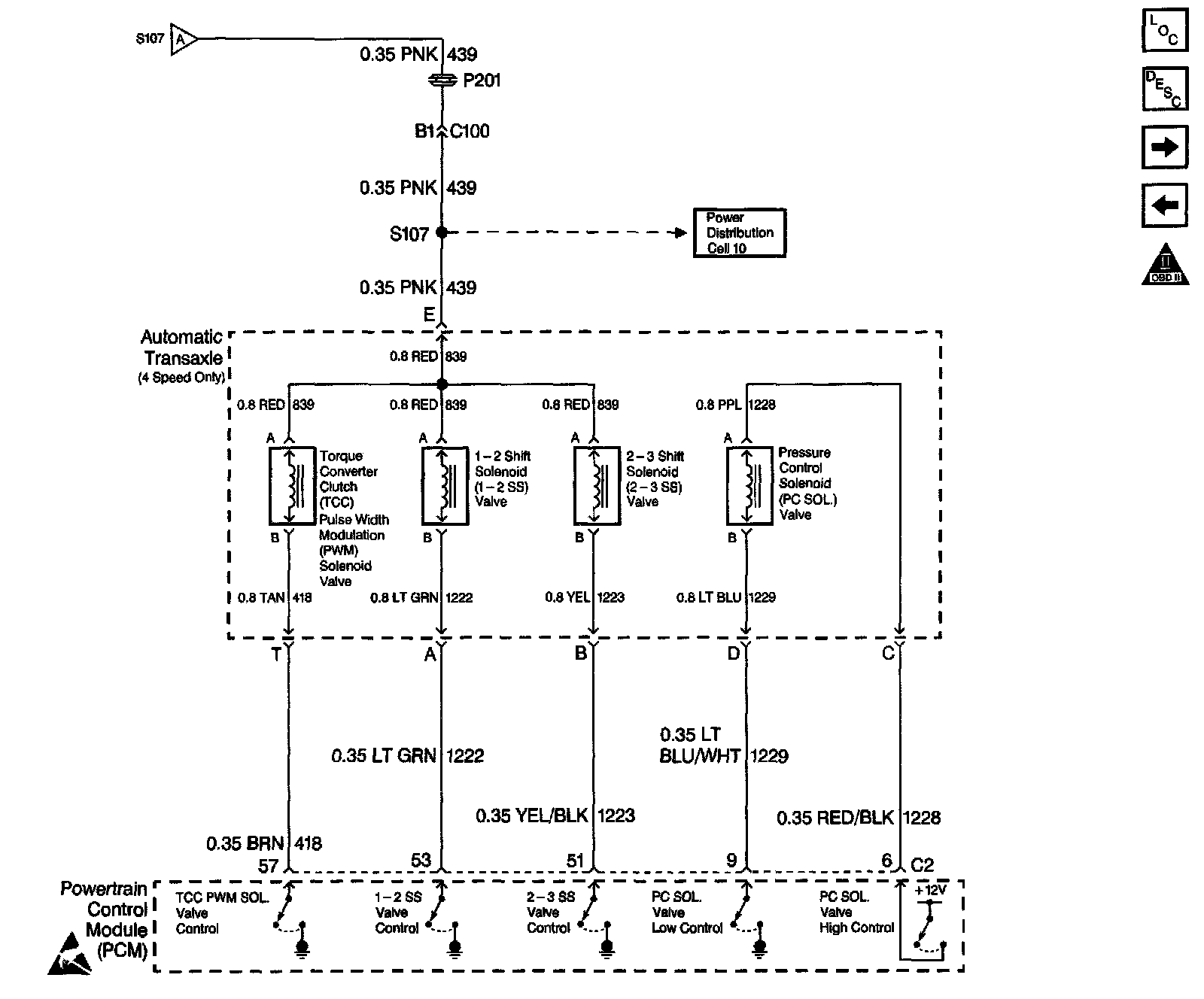

Engine Controls Schematics: Automatic Transaxle (Part 1 Of 2):

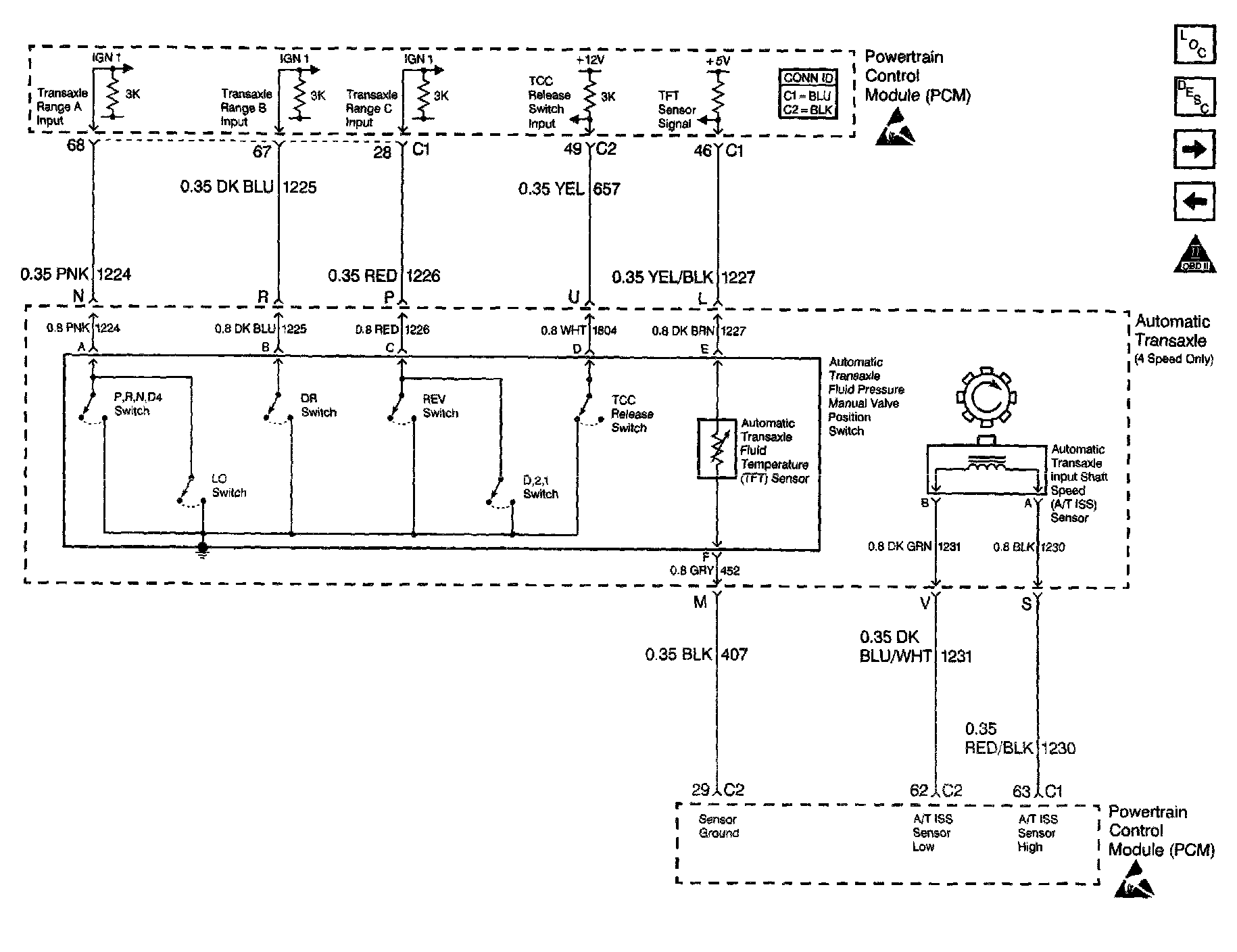

Engine Controls Schematics: Automatic Transaxle (Part 2 Of 2):
