Wiper/Washer System Component Views
WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

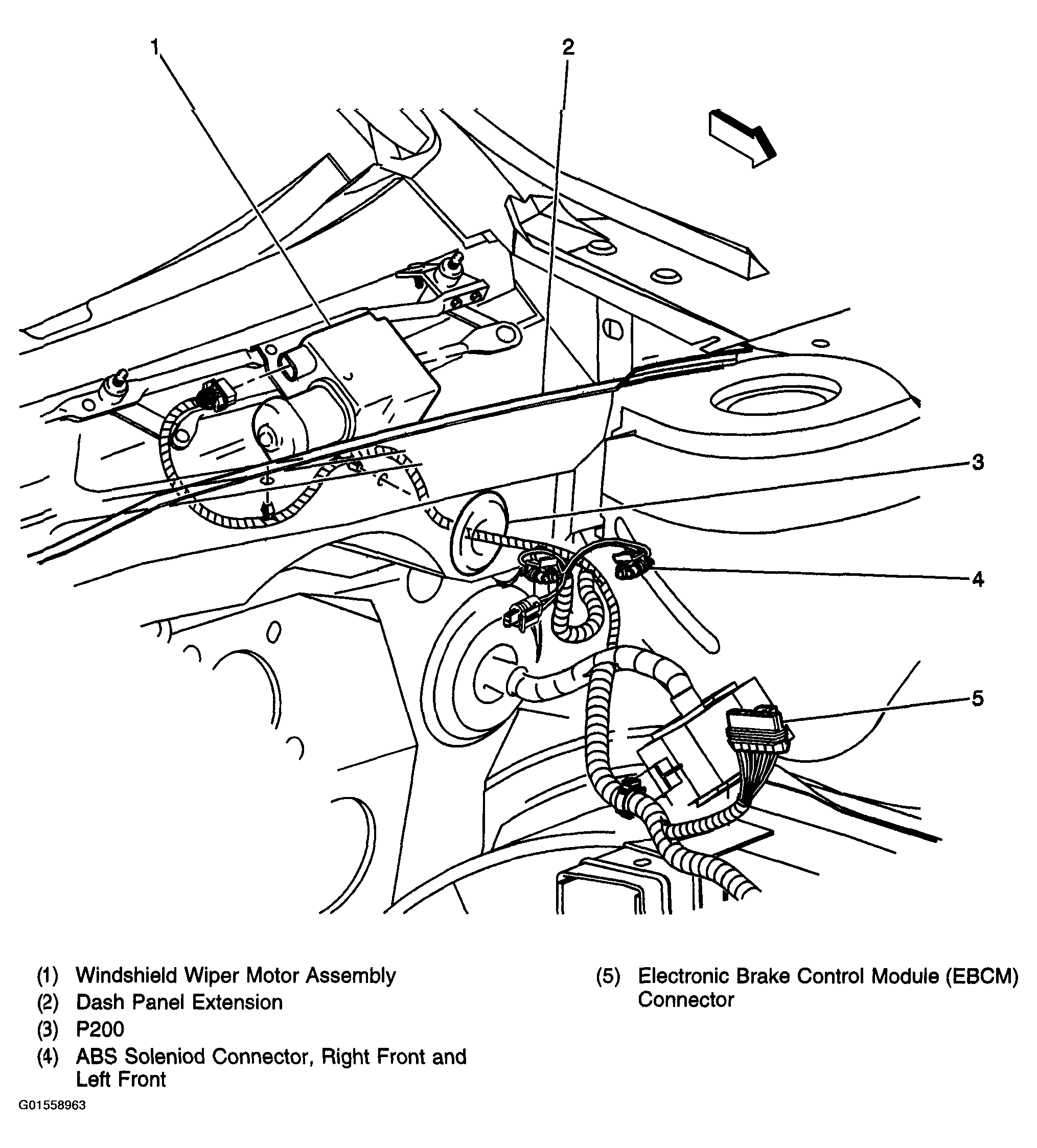

Fig 1: Locating Wiper/Washer System Components (Under Battery Tray)
Courtesy of GENERAL MOTORS CORP.
Fig 2: Locating Wiper/Washer System Components (Left Rear Of Engine Compartment)
