Wiper/Washer System Connector End Views

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

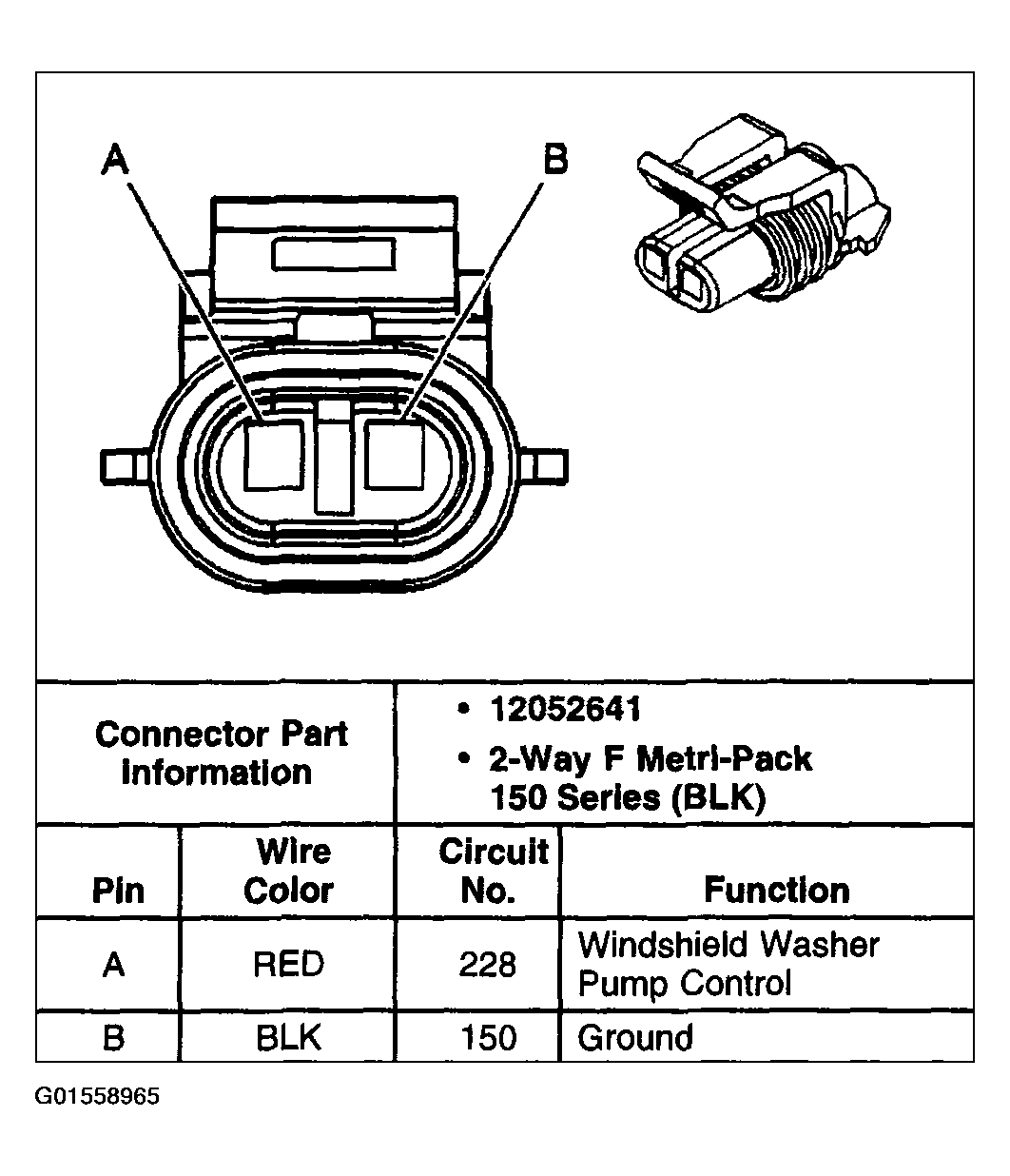

Fig 1: Identifying Windshield Washer Pump Connector Terminals
G01558965Courtesy of GENERAL MOTORS CORP.

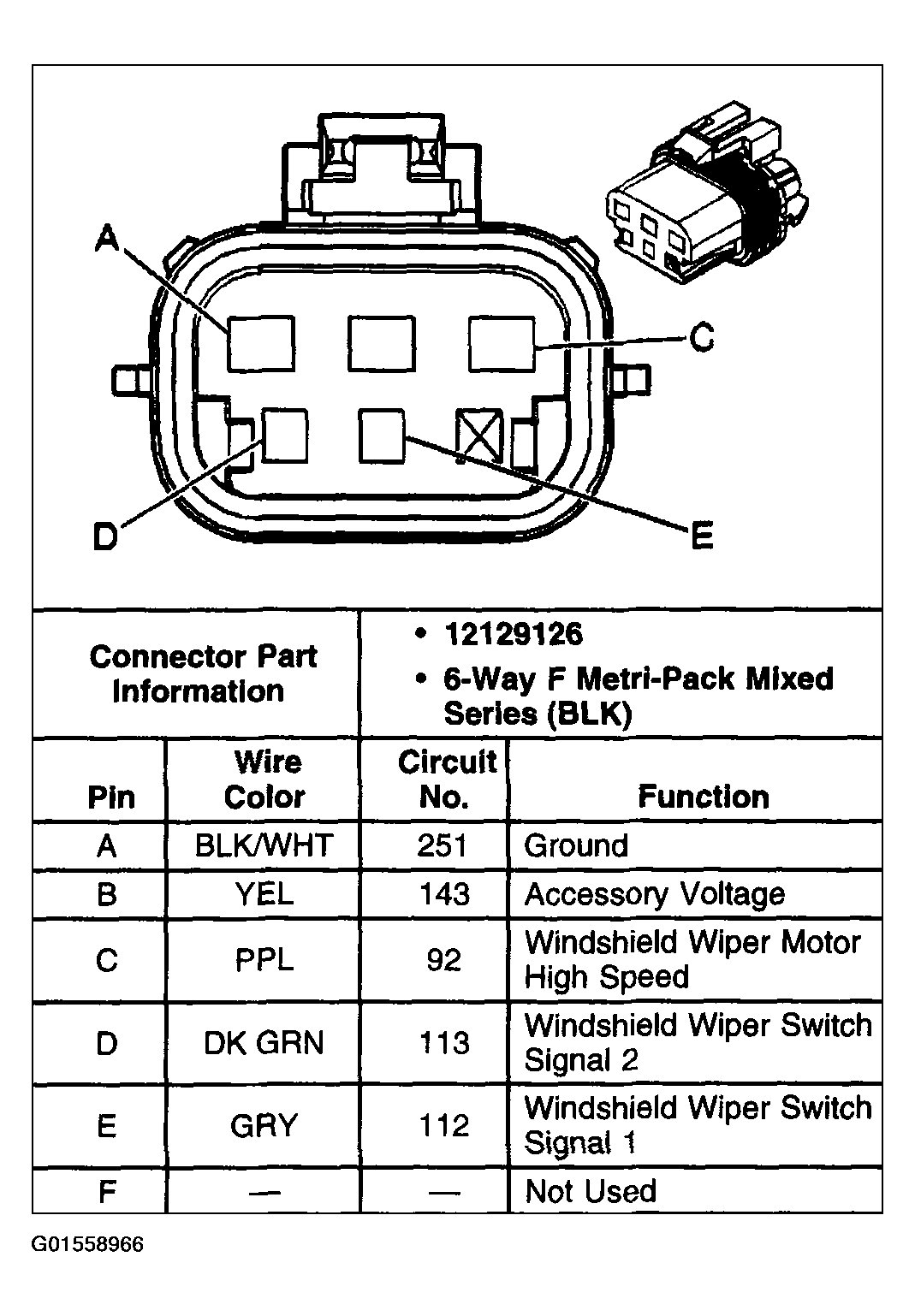

Fig 2: Identifying Windshield Wiper Motor Assembly Connector Terminals
G01558966Courtesy of GENERAL MOTORS CORP.

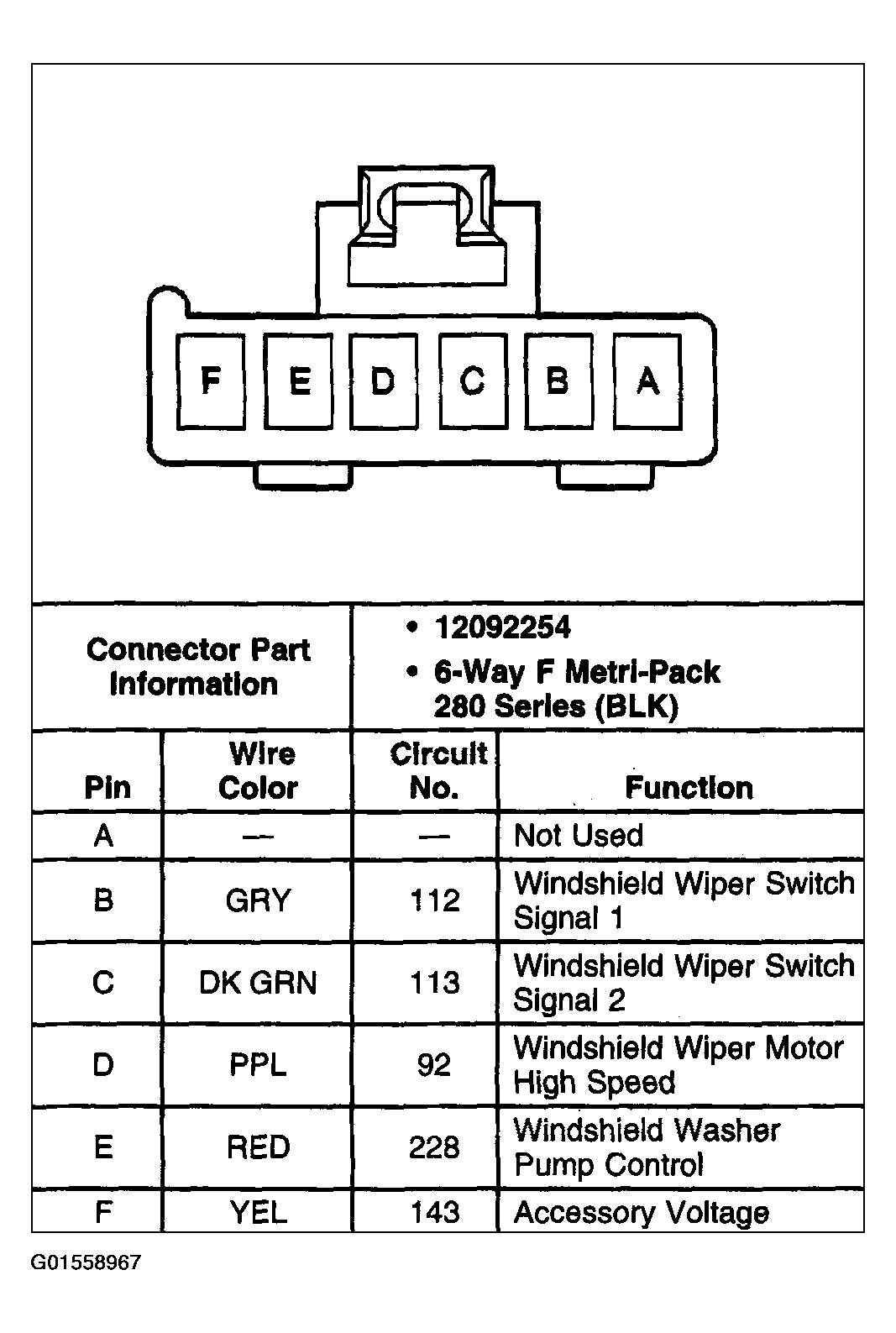

Fig 3: Identifying Windshield Wiper Switch Assembly Connector Terminals
G01558967Courtesy of GENERAL MOTORS CORP.
