HVAC Component Views
WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Camshaft Position (CMP) Sensor |
| 2 | Mass Air Flow (MAF) Sensor |
| 3 | Throttle Actuator Control (TAC) Module |
| 4 | Ignition Control Module (ICM) |
| 5 | Engine Control Module (ECM) |
| 6 | Engine Coolant Temperature (ECT) Sensor |
| 7 | Crankshaft Position (CKP) Sensor |
| 8 | Knock Sensor (KS) 2 |
| 9 | A/C Compressor Clutch Coil (Hidden) |
| 10 | Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 |
| 11 | Generator |

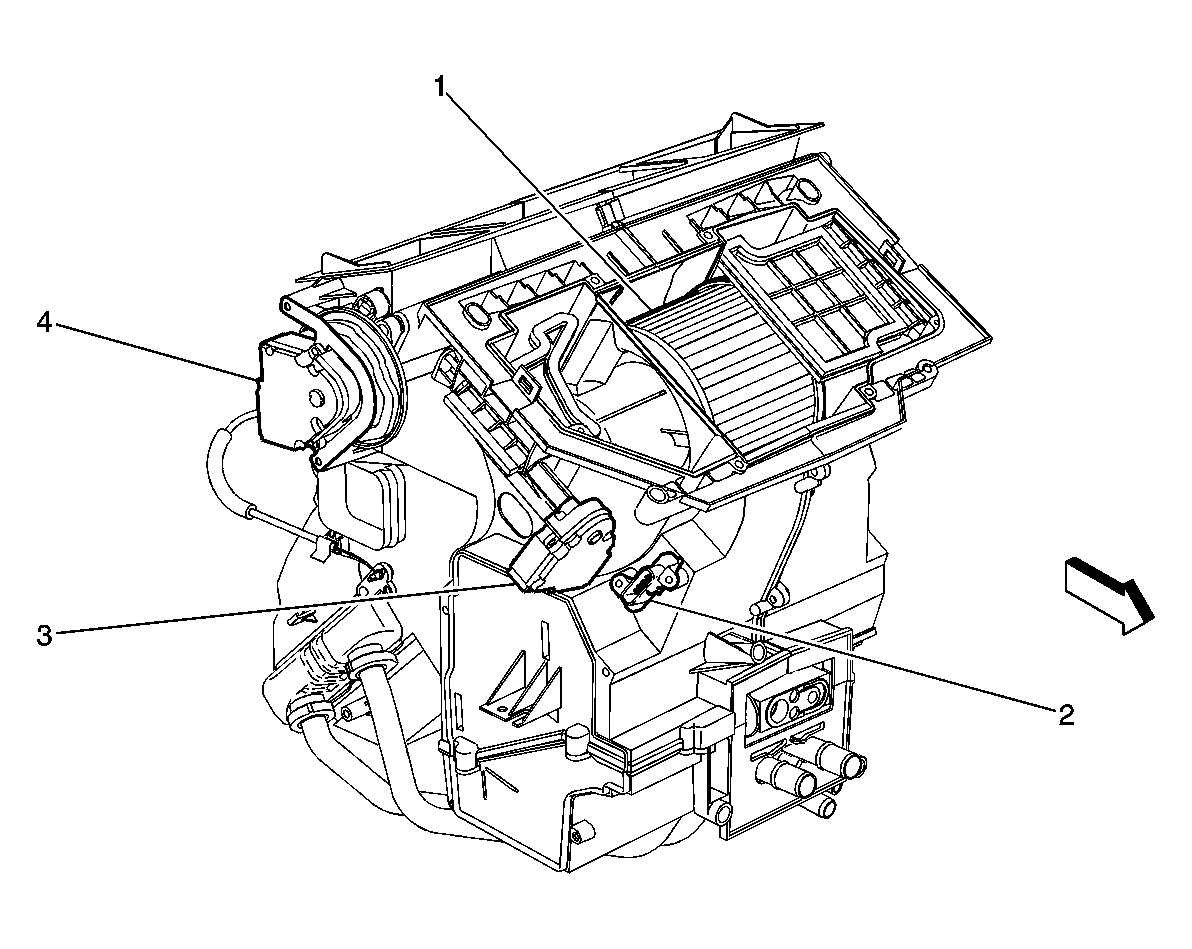

| Callout | Component Name |
|---|---|
| 1 | Blower Motor |
| 2 | Blower Motor Speed Control Module |
| 3 | Recirculation Actuator |
| 4 | Mode Actuator |
| Callout | Component Name |
|---|---|
| 1 | Ambient Light Sensor |
| 2 | Windshield Wiper/Washer Switch |
| 3 | Left Heated Seat/Fog Lamp Switch |
| 4 | Hazard Switch |
| 5 | Right Heated Seat/Traction Switch |
| 6 | Radio |
| 7 | HVAC Control Module |
| 8 | Headlamp/Turn Signal Switch |
| 9 | Dimmer/Rear Compartment Lid Release Switch |
| 10 | Instrument Panel Cluster (IPC) |
| 11 | Ignition Lock Cylinder Solenoid |
