Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Important: The Remote Function Actuation (RFA) system uses the same receiver as the Tire Pressure Monitor (TPM) system. The service replacement receiver must be programmed to accept both the keyless entry transmitters and the TPM sensors. Refer to Transmitter Programming and TIRE PRESSURE MONITORING SENSOR PROGRAMMING .

Turn the ignition to OFF.

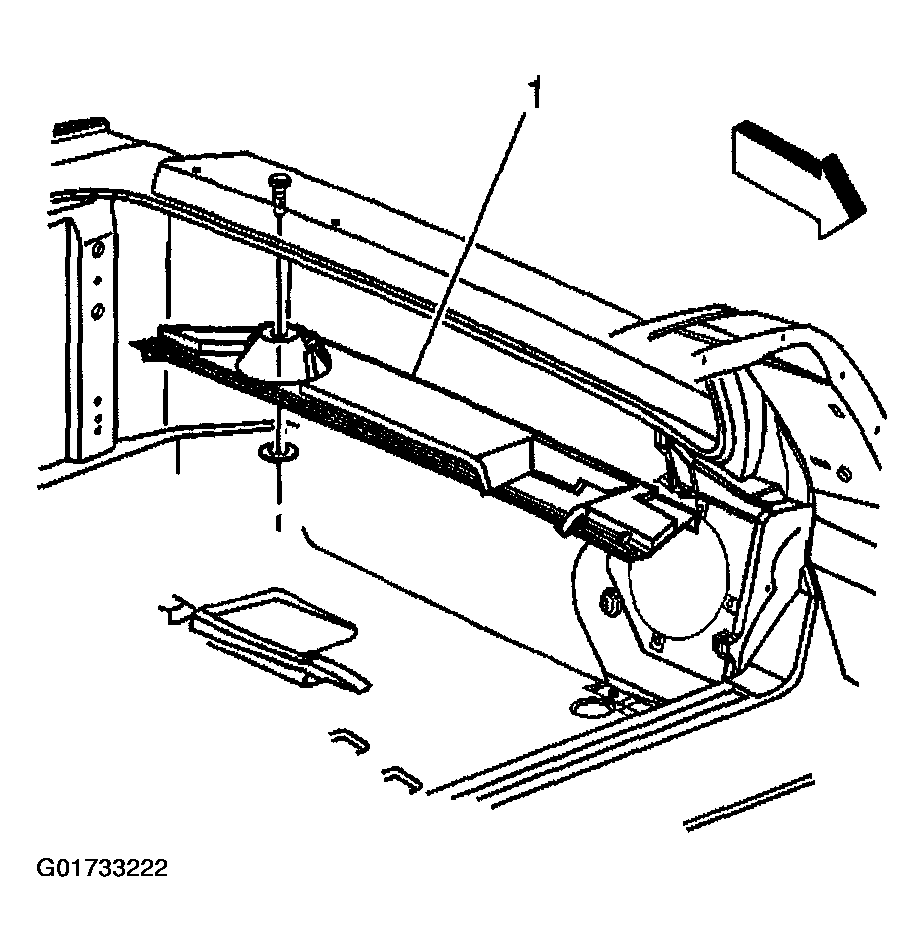

Remove the left rear compartment insulator (1).

Fig 1: Removing Left Rear Compartment Insulator
Courtesy of GENERAL MOTORS CORP.
Gently pull on the retainer at the back side of the receiver (1).
Pull out the receiver (1) only enough to expose the connector (2).
Disconnect the receiver connector (2).

Fig 2: Disconnecting Receiver Connector
Courtesy of GENERAL MOTORS CORP.
