Entertainment Connector End Views

WARNING: This page is about a different car, the 2002 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

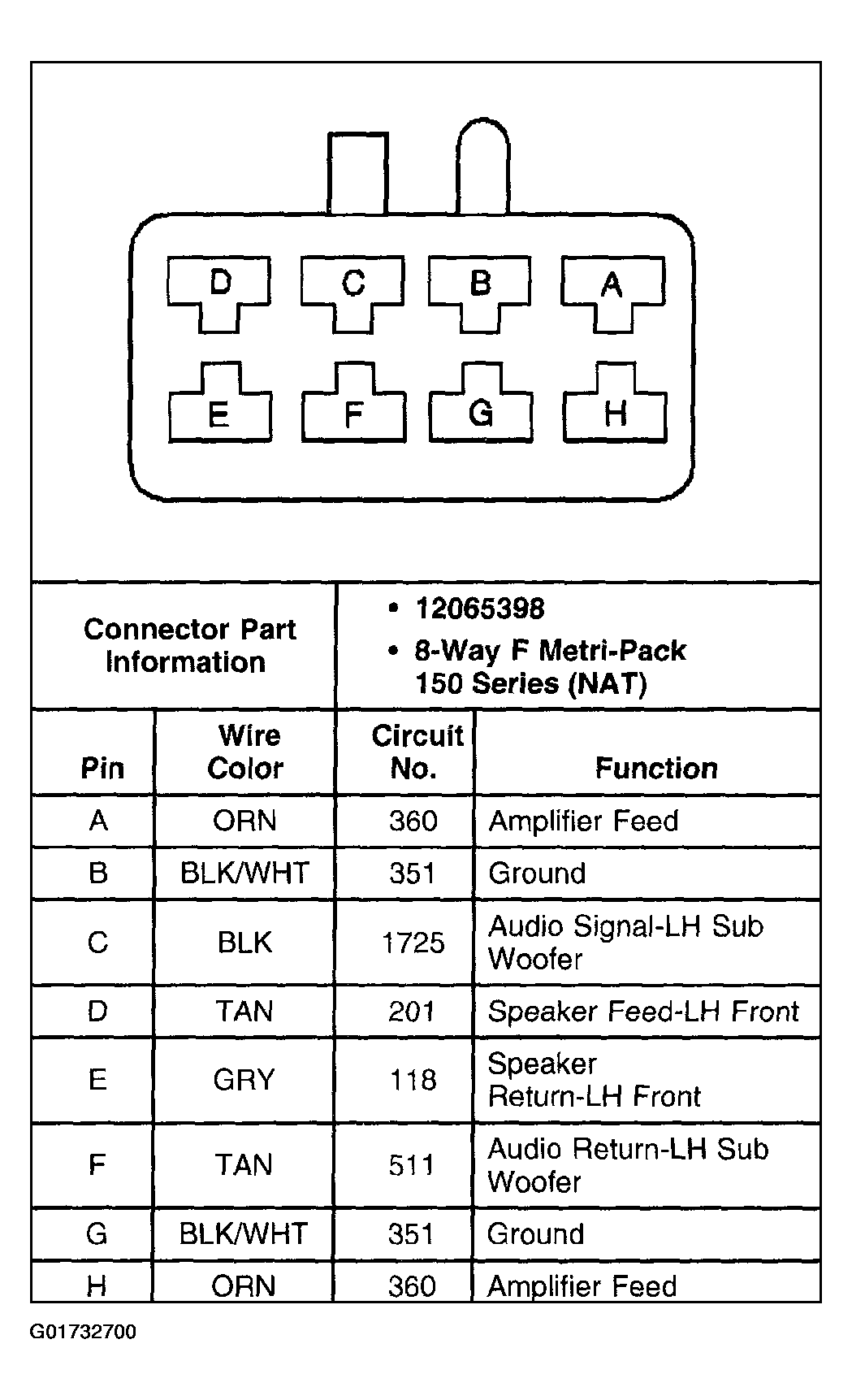

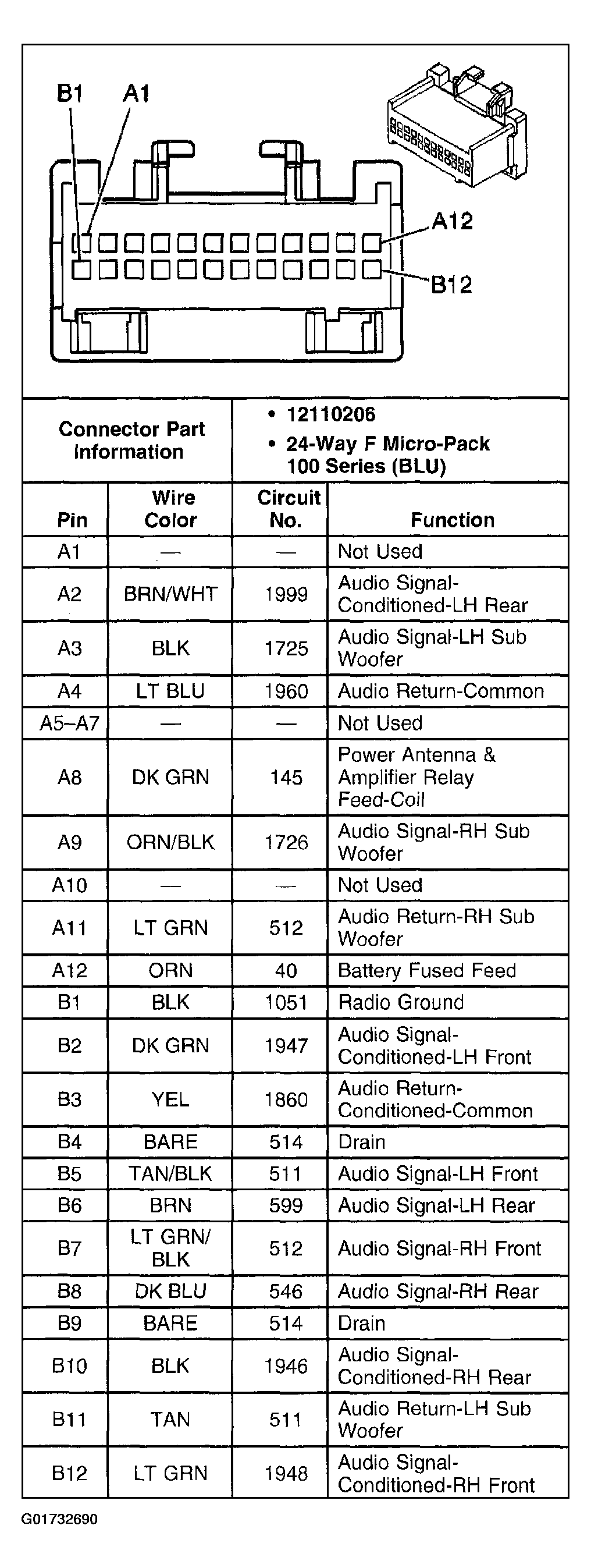

Fig 1: Bose® Signal Processor - Coupe

Courtesy of GENERAL MOTORS CORP.

Fig 2: Bose® Signal Processor - Hardtop/Convertible

Courtesy of GENERAL MOTORS CORP.

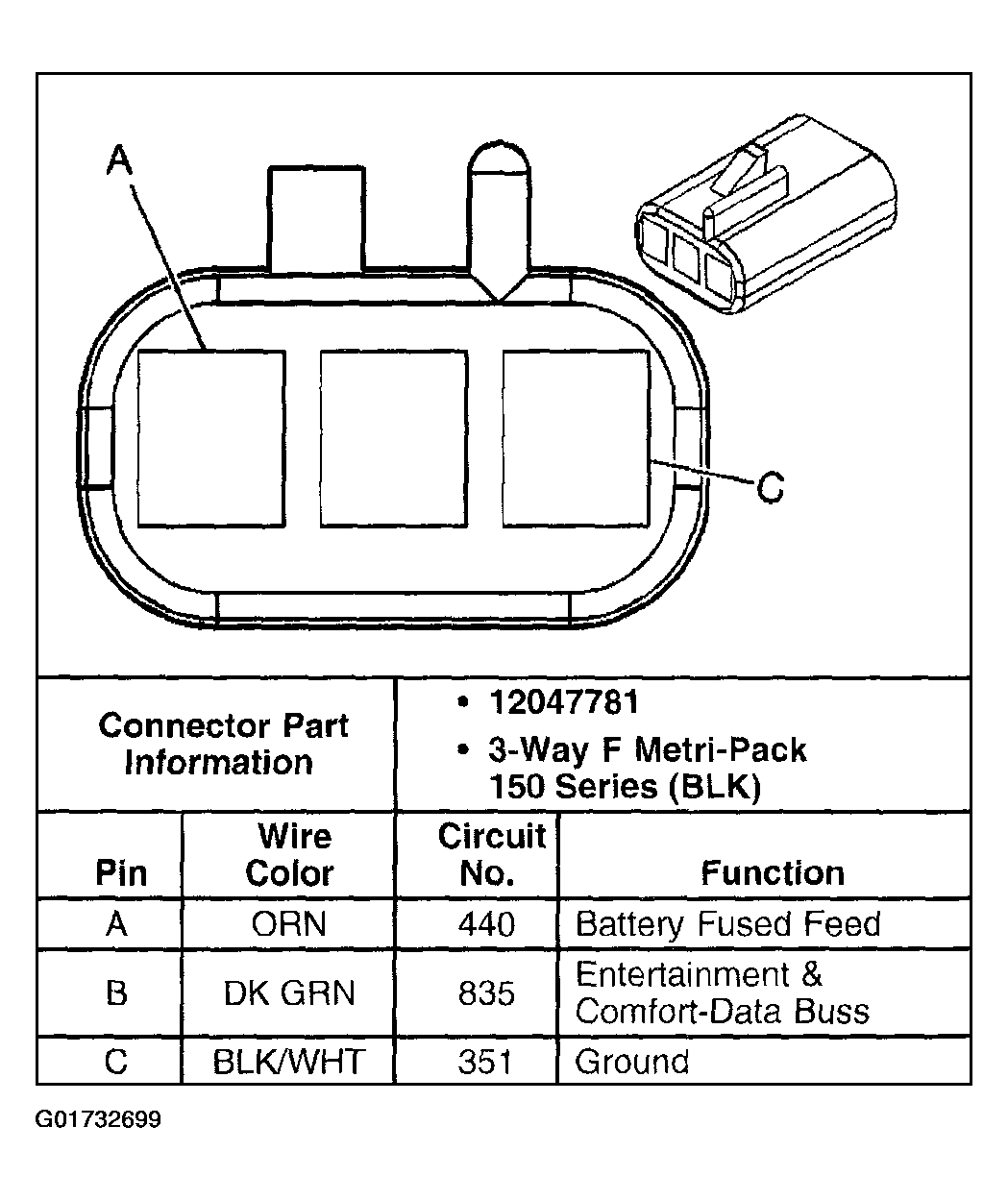

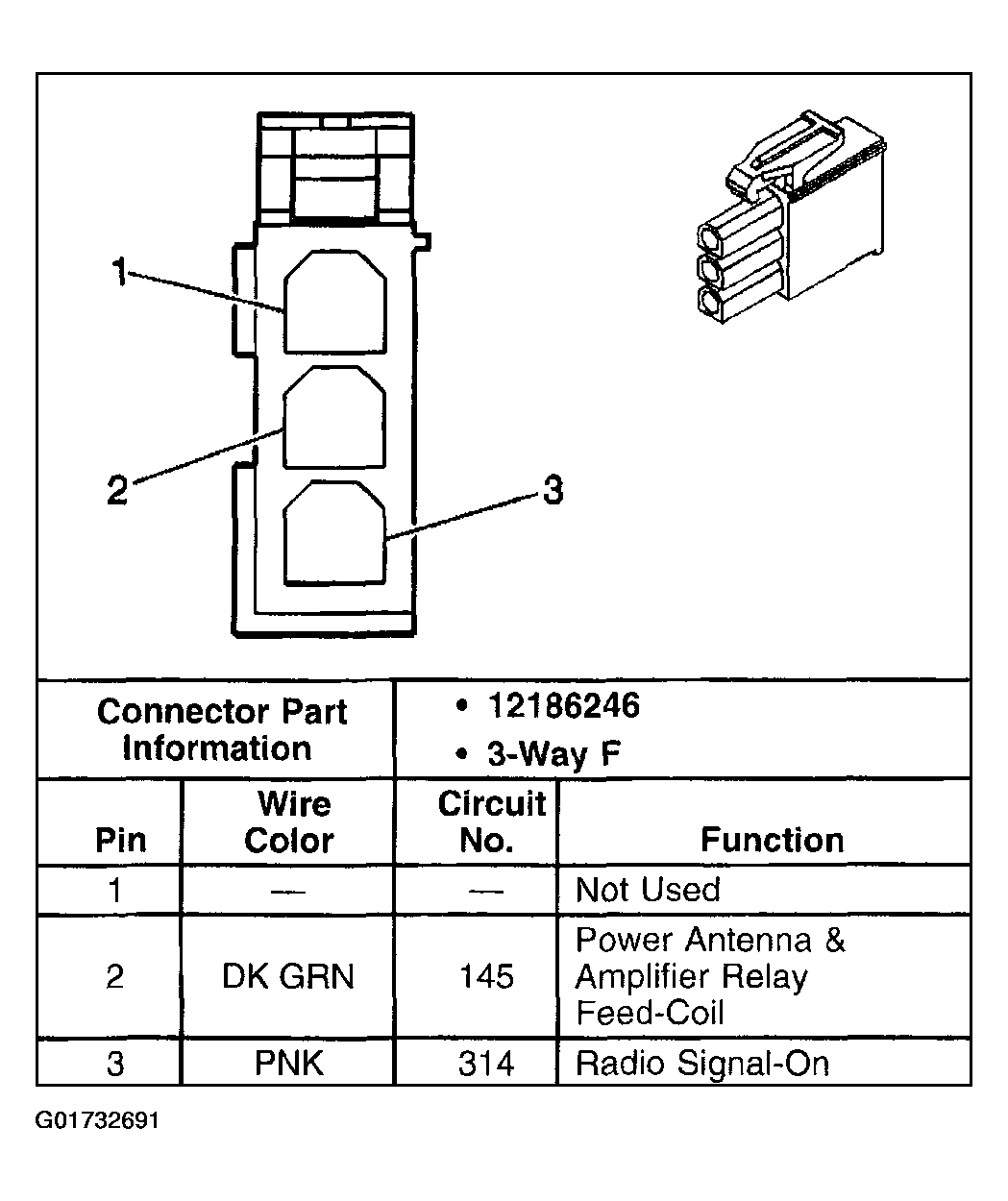

Fig 3: Radio Antenna Module - Coupe

Courtesy of GENERAL MOTORS CORP.

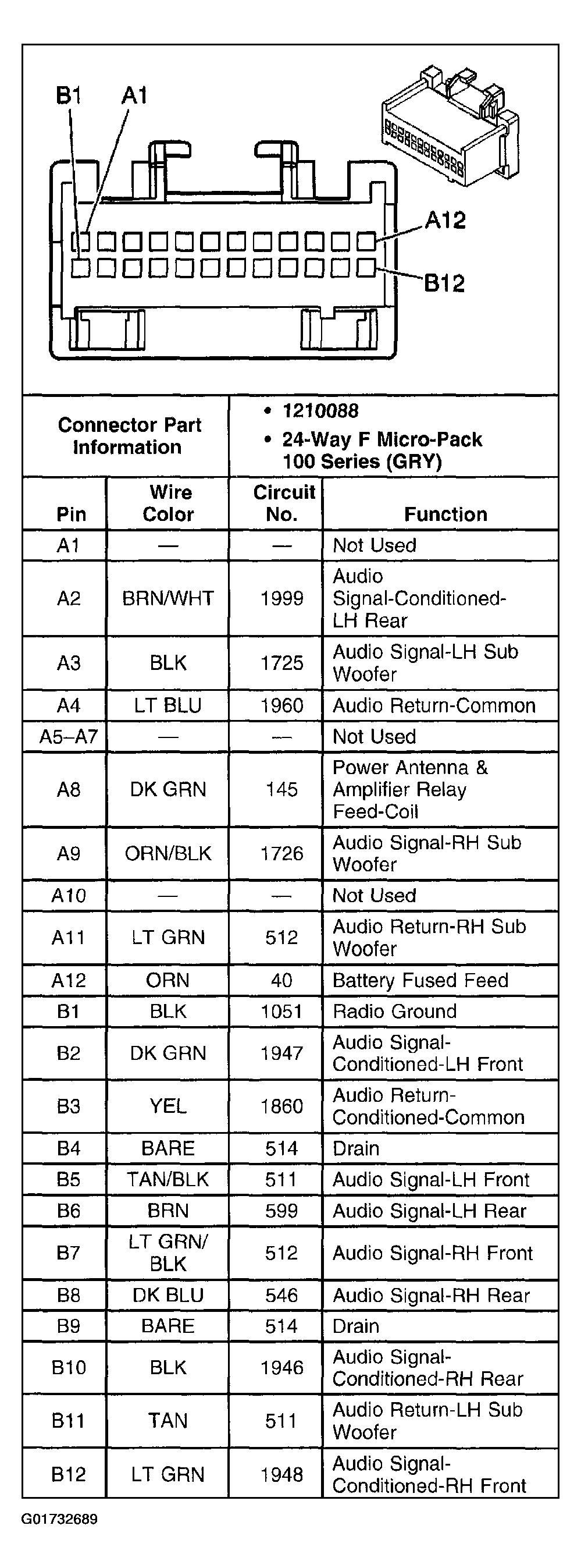

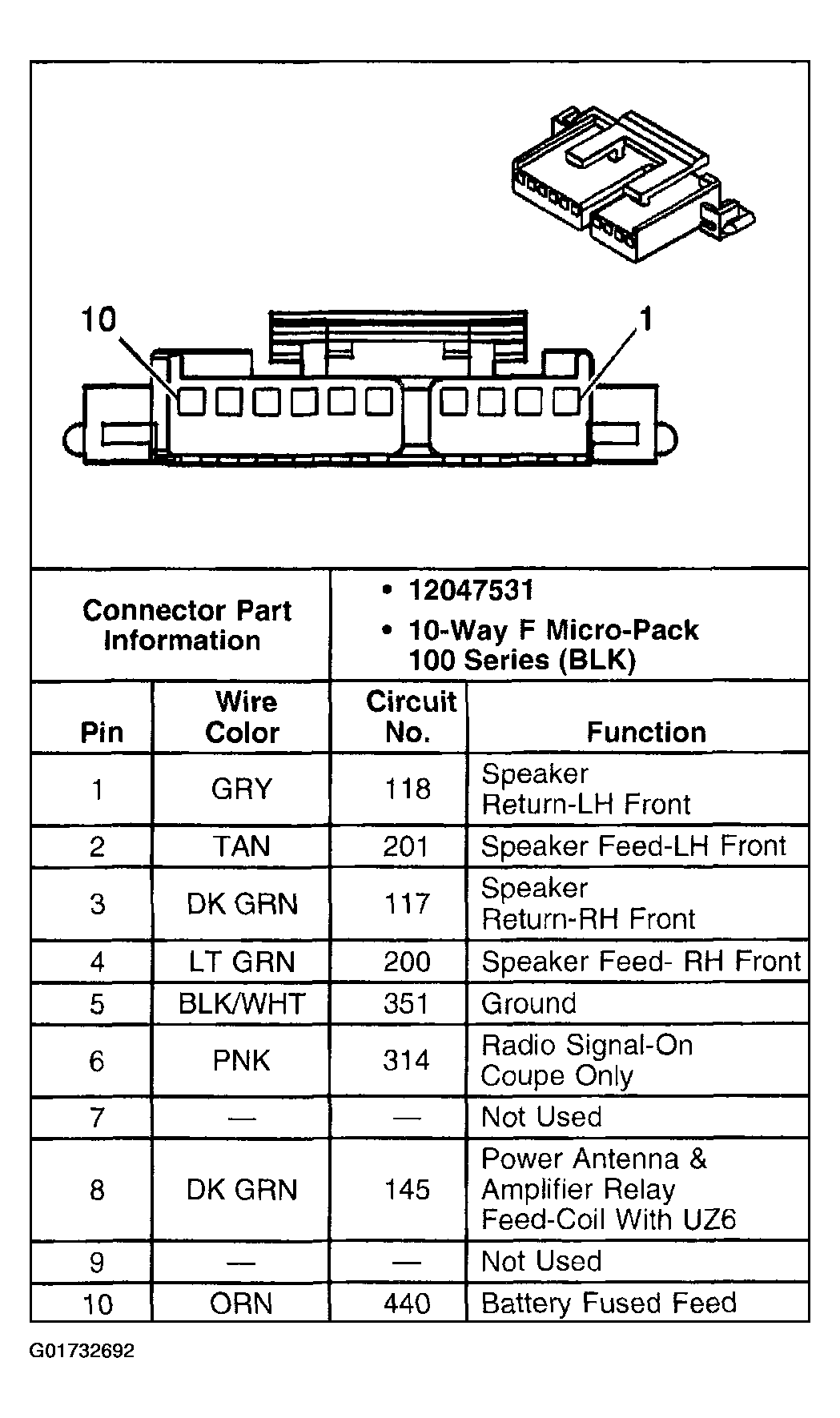

Fig 4: Radio C1

Courtesy of GENERAL MOTORS CORP.

Fig 5: Radio C2

Courtesy of GENERAL MOTORS CORP.

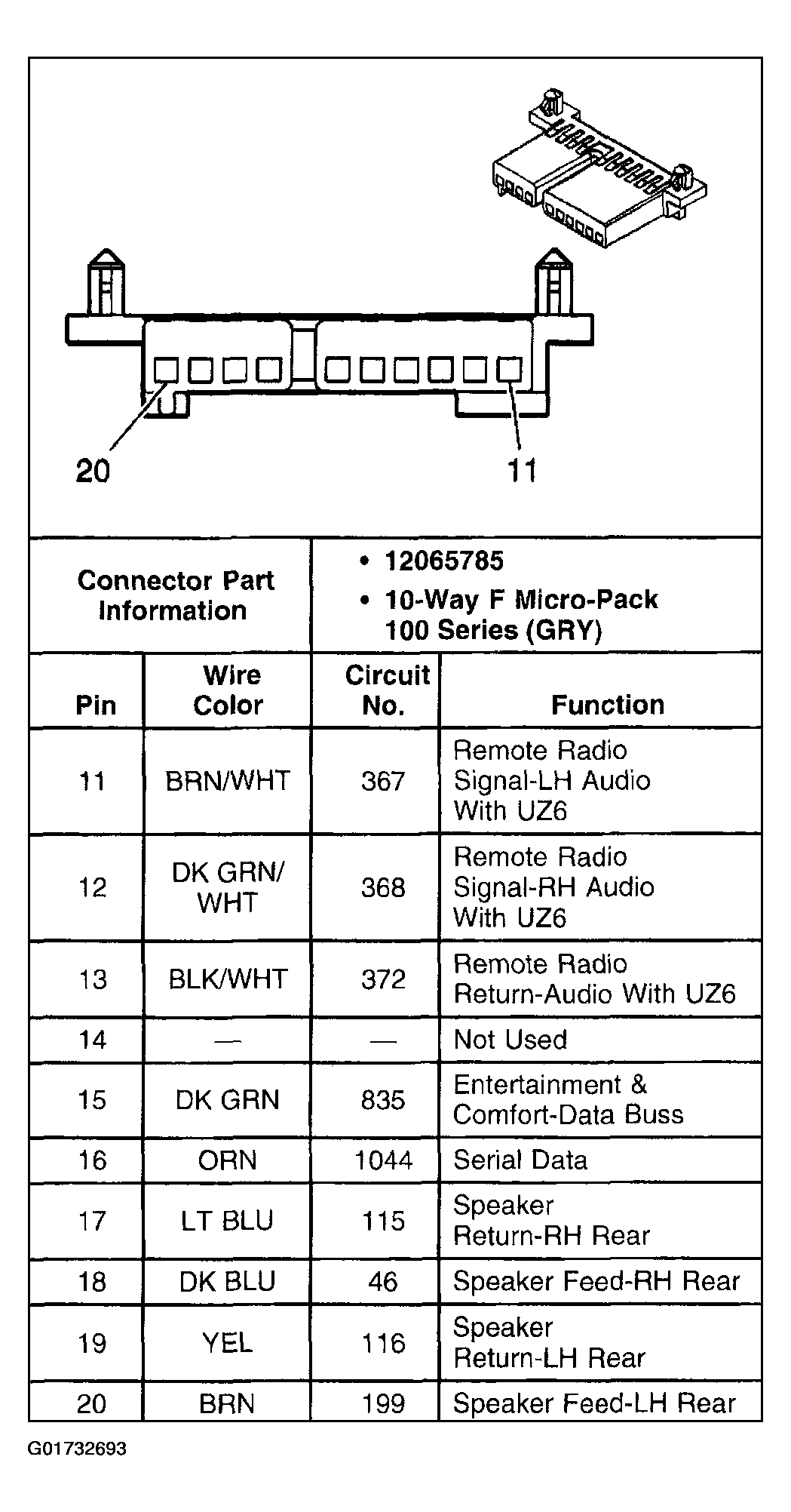

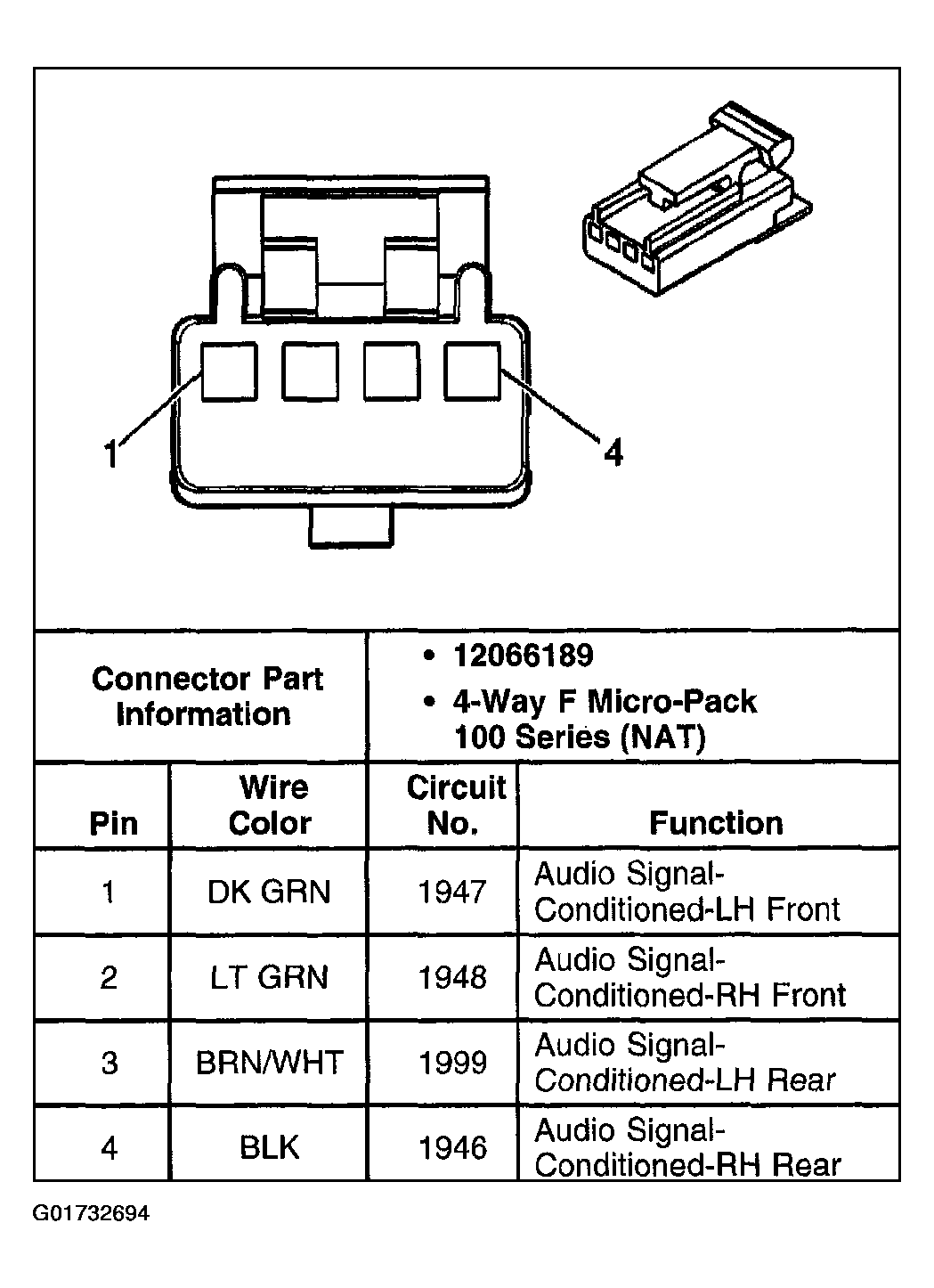

Fig 6: Radio C3

Courtesy of GENERAL MOTORS CORP.

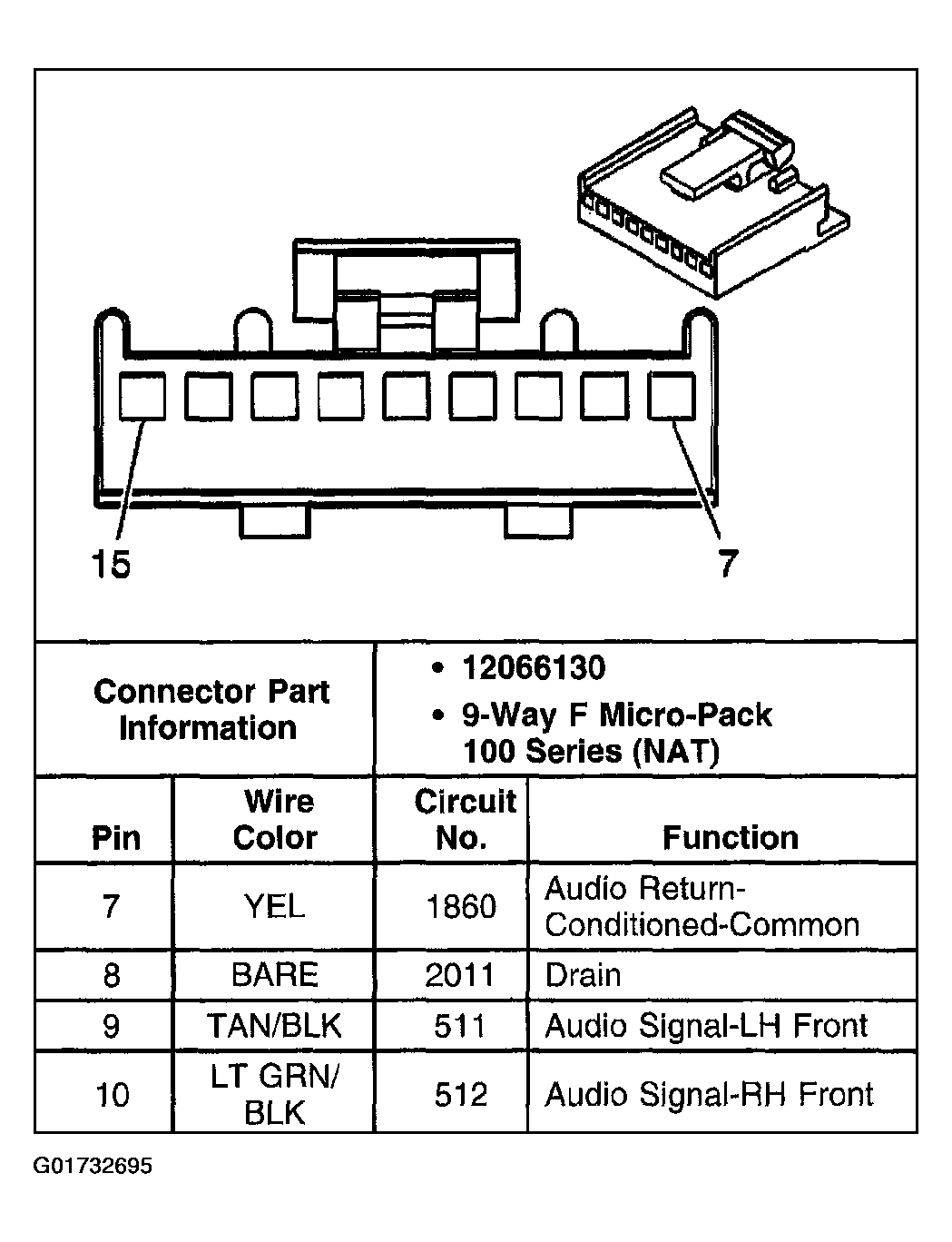

Fig 7: Radio C4 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

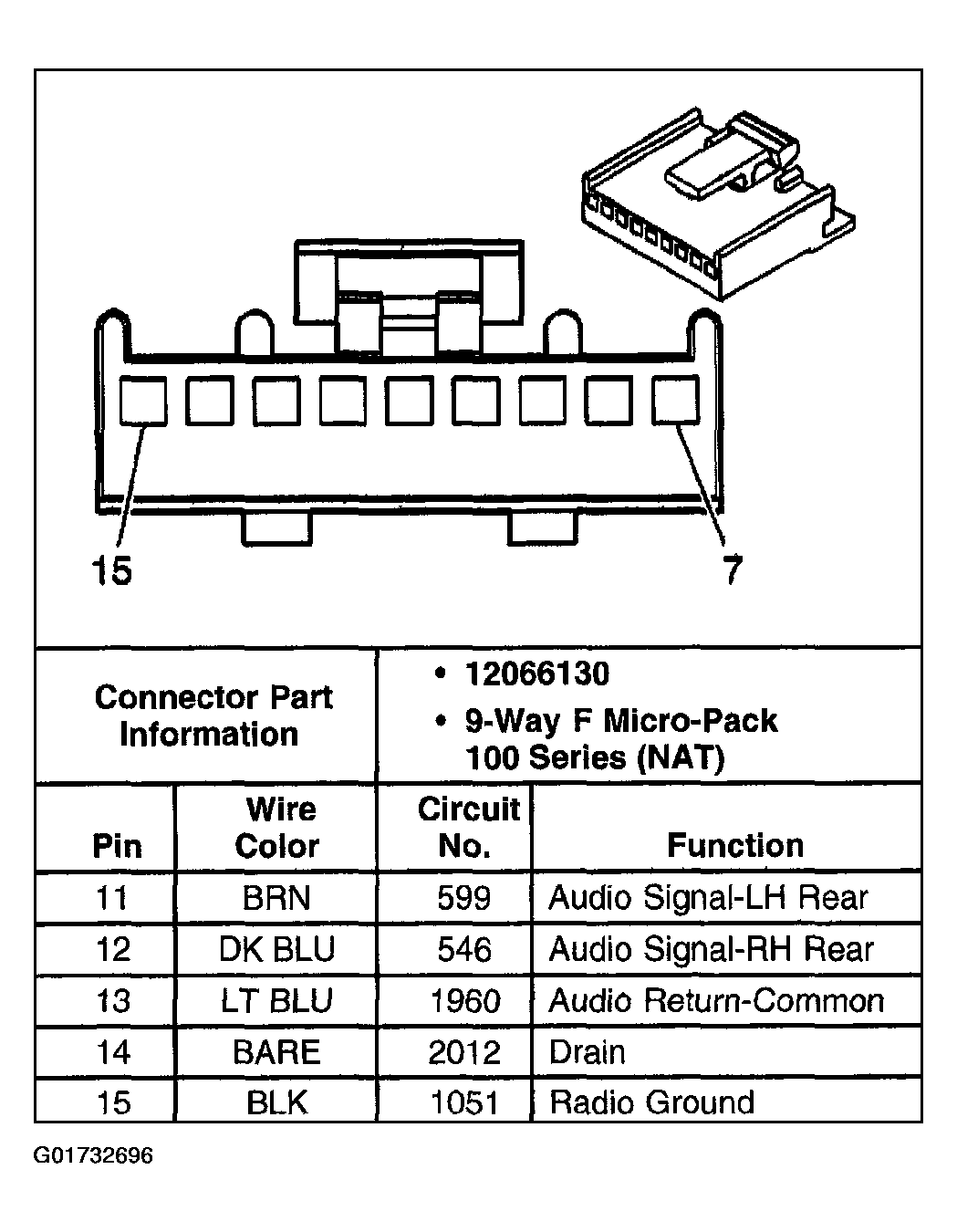

Fig 8: Radio C4 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

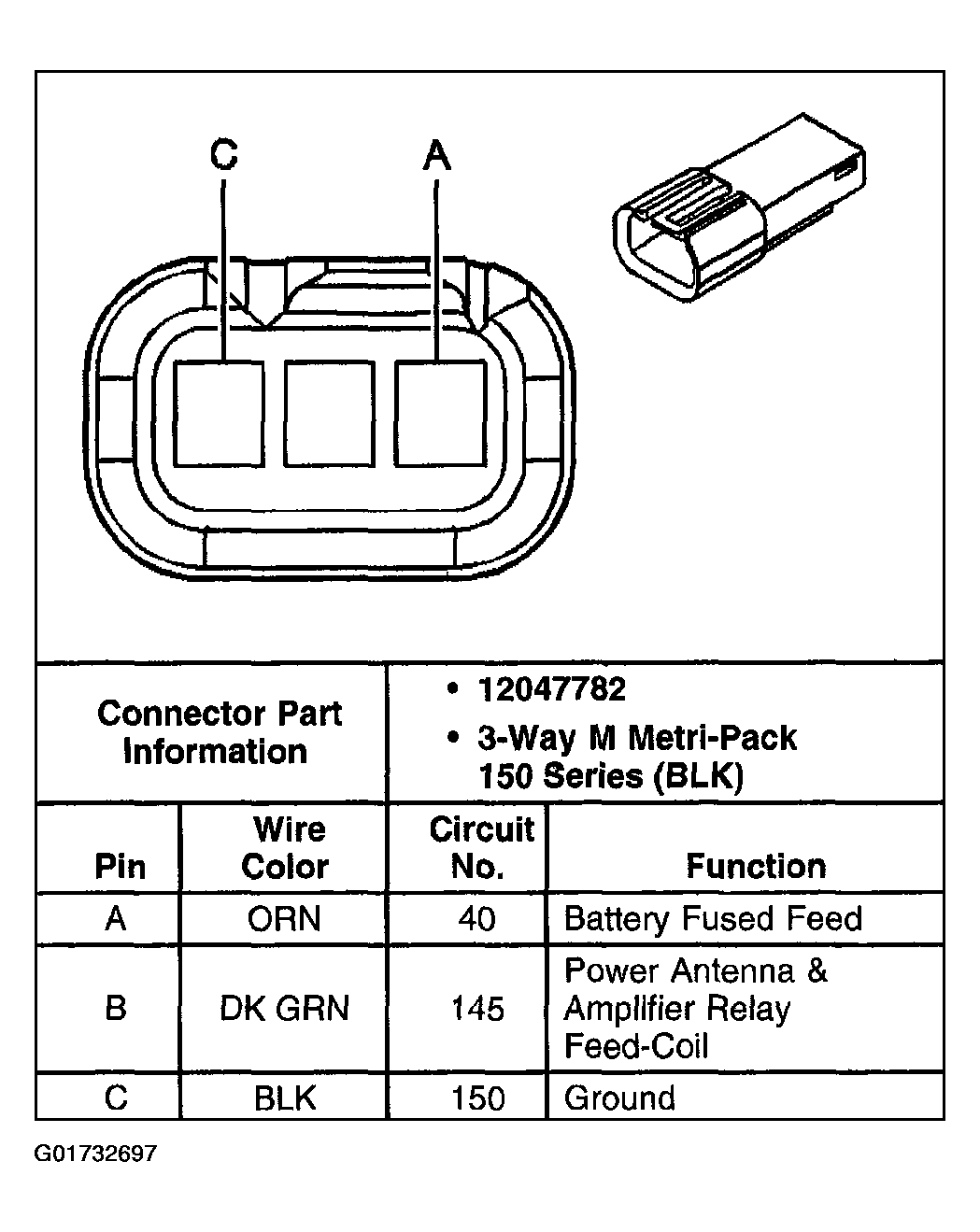

Fig 9: Radio Power Antenna - Convertible

Courtesy of GENERAL MOTORS CORP.

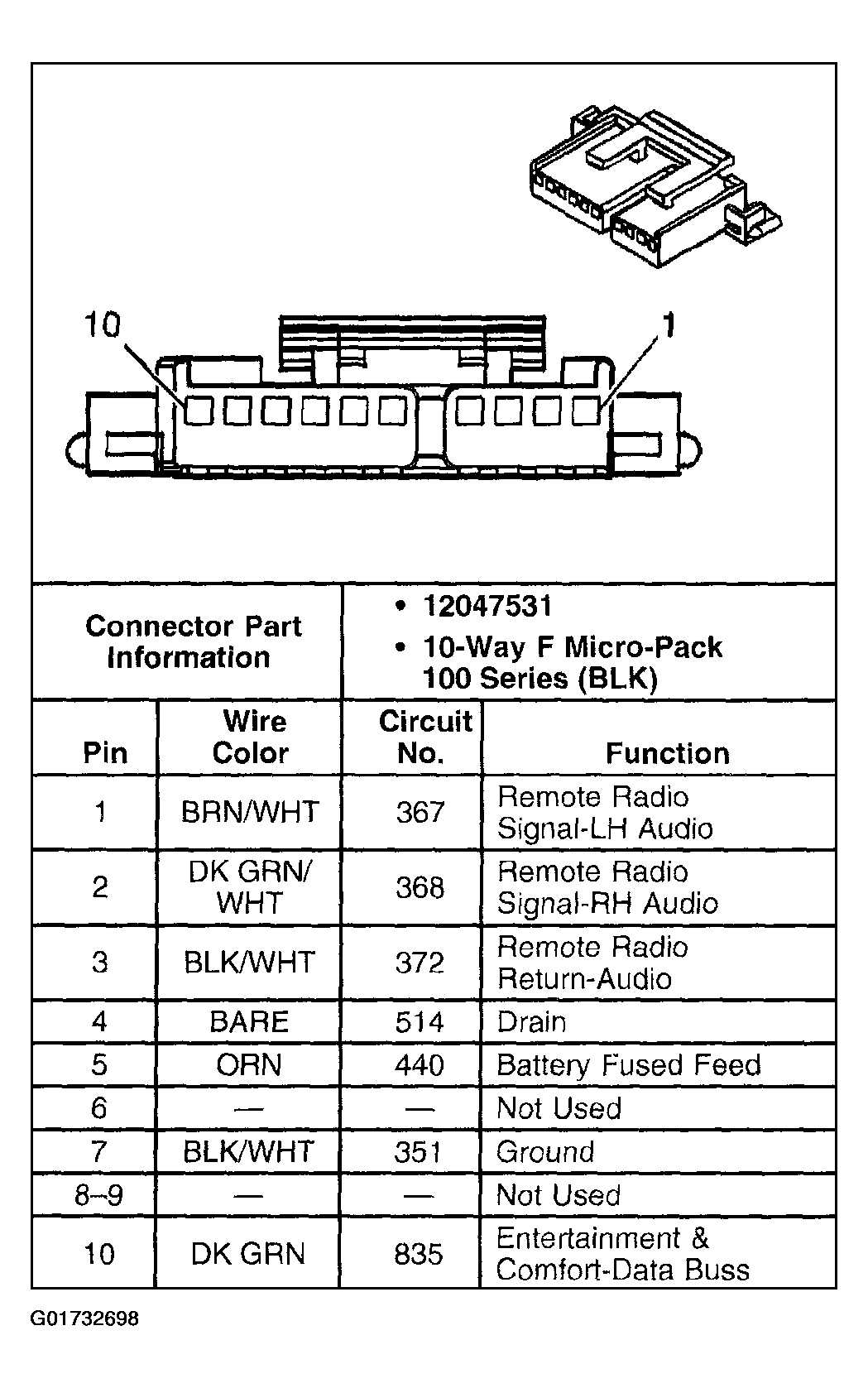

Fig 10: Remote Playback Device-CD Changer

Courtesy of GENERAL MOTORS CORP.

Fig 11: Remote Playback Device-CD Changer - Dealer Installed

Courtesy of GENERAL MOTORS CORP.

Fig 12: Speaker-LF Door

Courtesy of GENERAL MOTORS CORP.

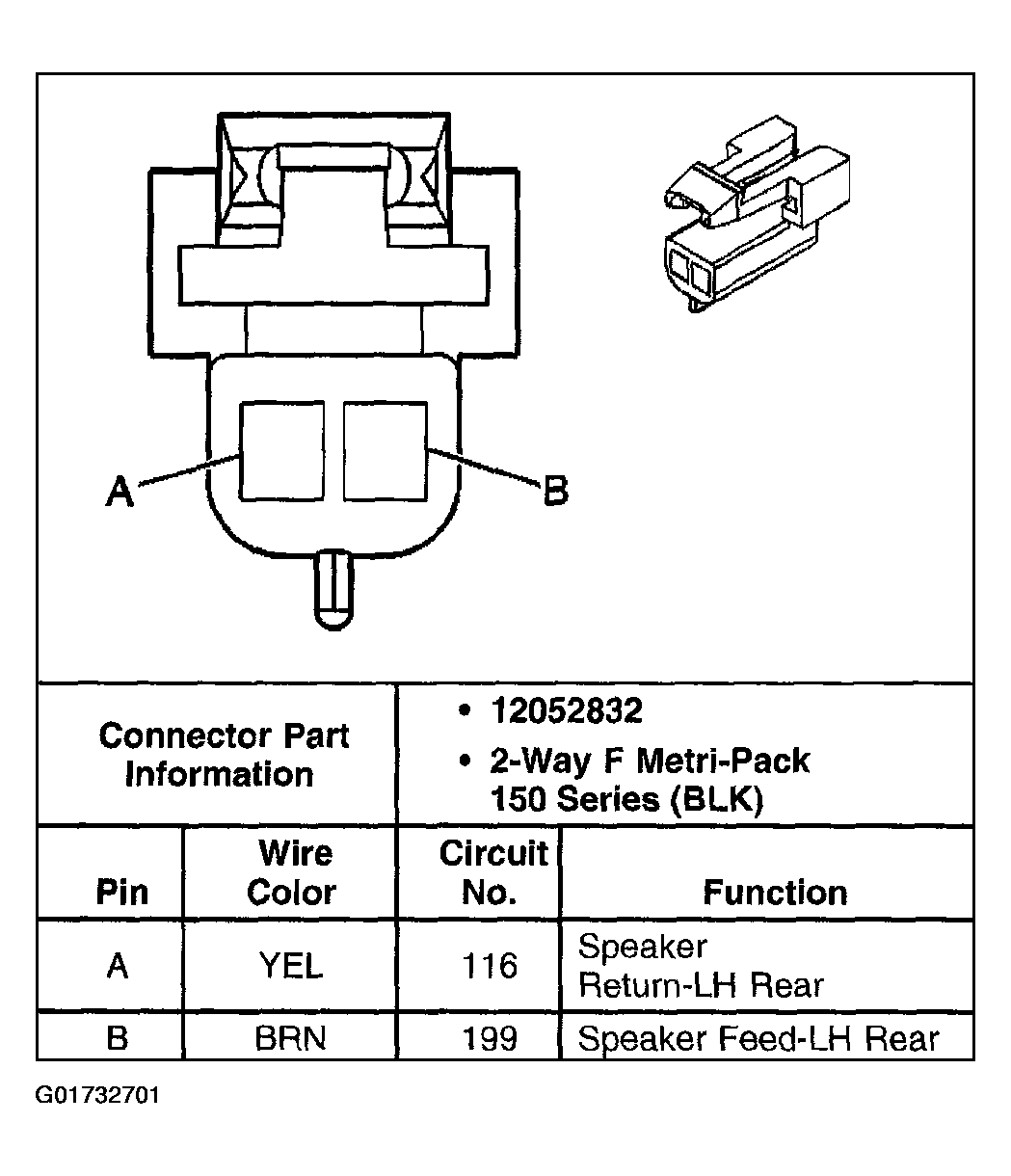

Fig 13: Speaker-LR

Courtesy of GENERAL MOTORS CORP.

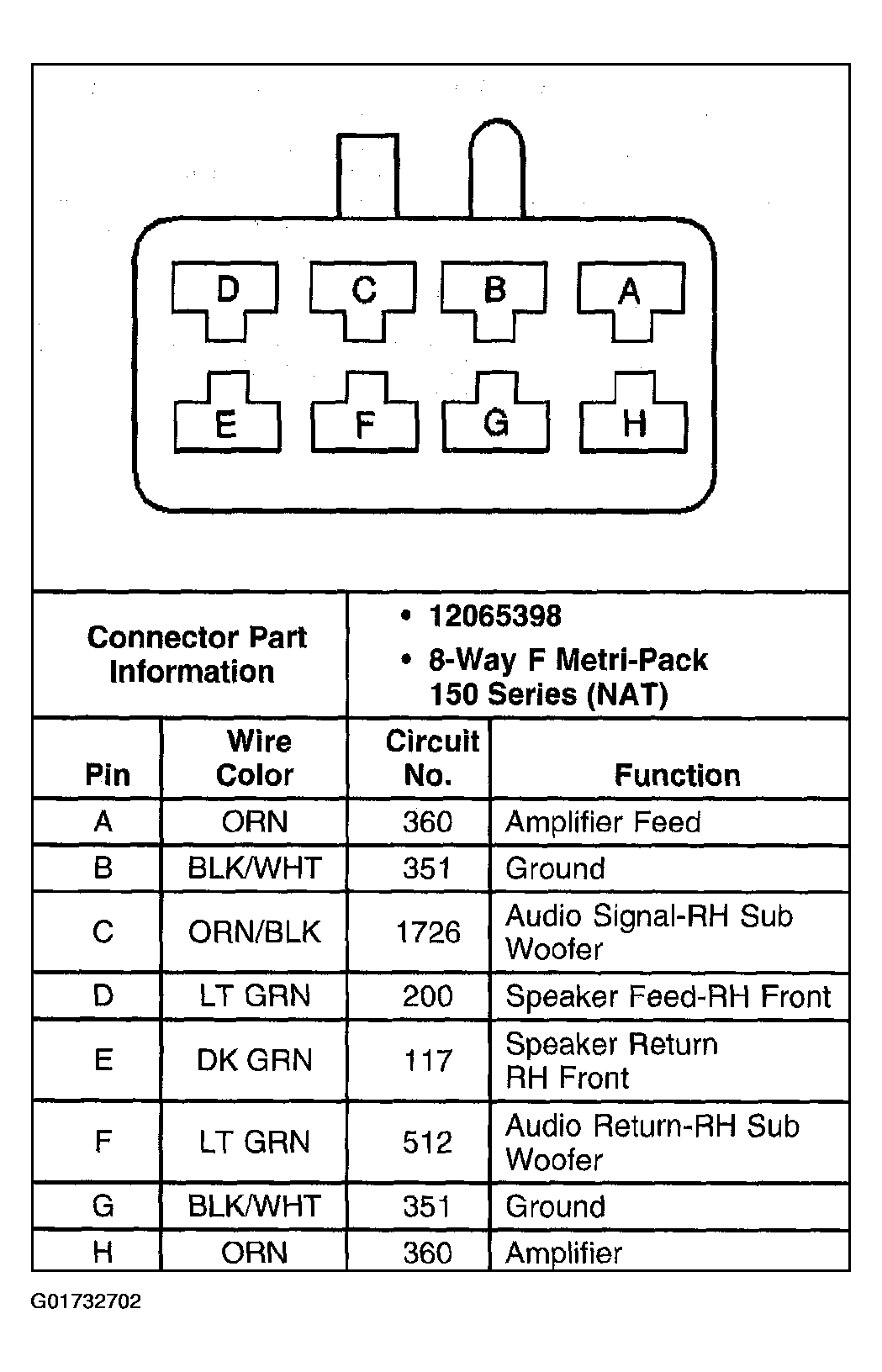

Fig 14: Speaker-RF Door

Courtesy of GENERAL MOTORS CORP.

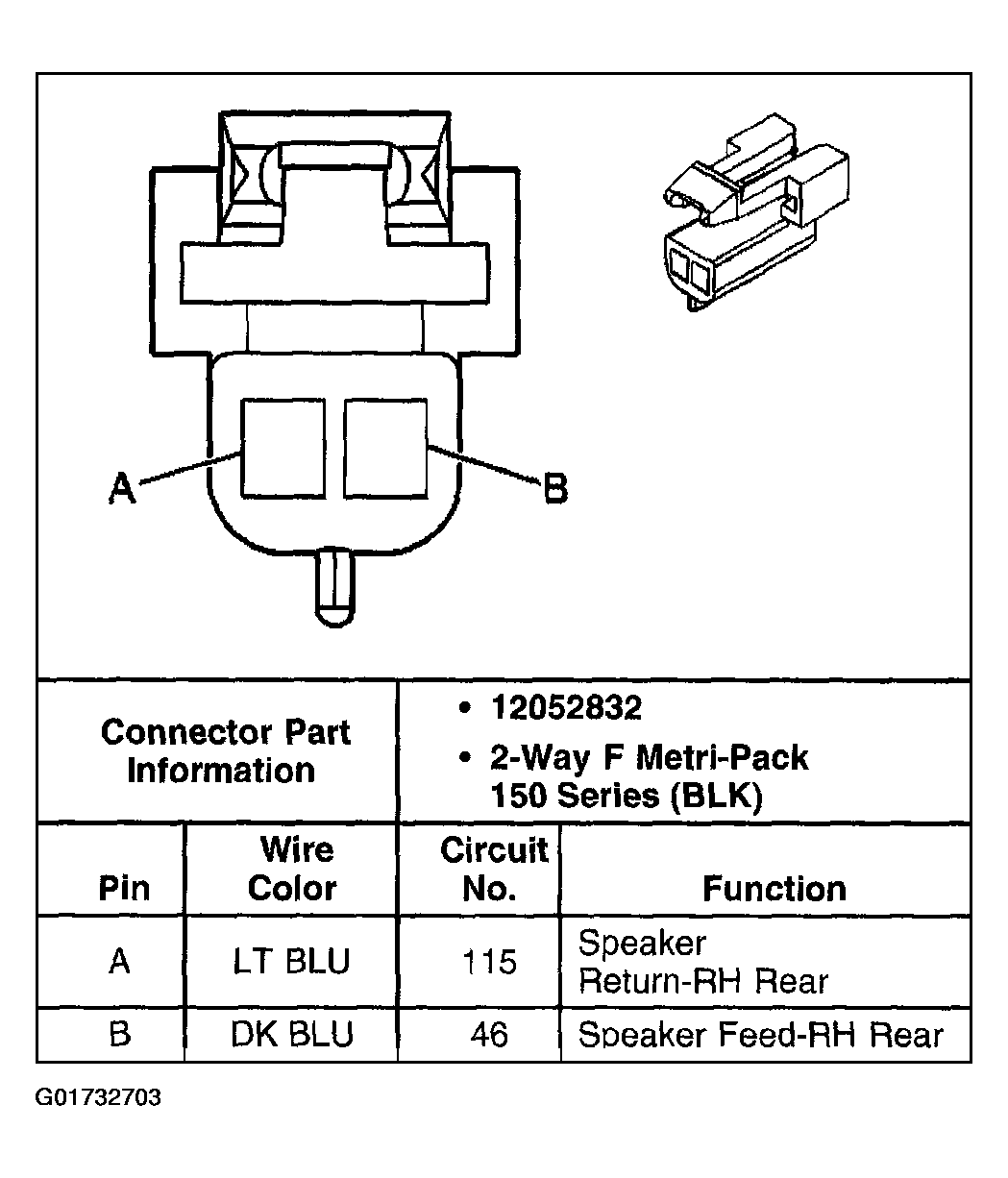

Fig 15: Speaker-RR

Courtesy of GENERAL MOTORS CORP.
