Removal Procedure

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.
  2. Remove the instrument panel (I/P) storage compartment. Refer to Compartment Replacement - Instrument Panel (I/P) in Instrument Panel, Gages and Console.
    3. Fig 1: Removing/Installing Right Side Heater Duct Assembly & Retainer
    GM896489Courtesy of GENERAL MOTORS CORP.
  3. Remove the right side heater duct assembly retainer.
  4. Remove the right side heater duct assembly.

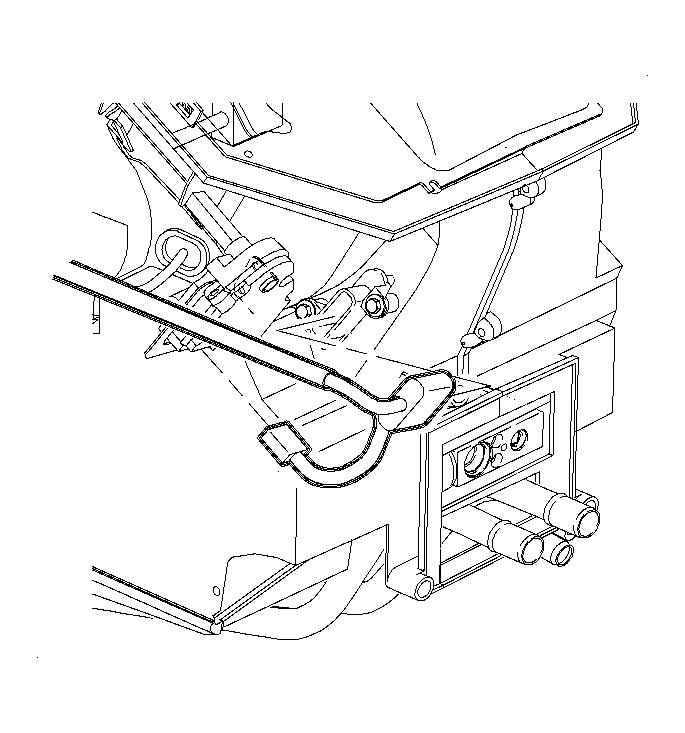

    5. Fig 2: Locating Recirculation Actuator Electrical Connector & Aspirator Hose
    GM894265Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the recirculation actuator electrical connector.
    6. Fig 3: Removing/Installing Recirculation Actuator
    GM892697Courtesy of GENERAL MOTORS CORP.
  6. Remove the recirculation actuator bracket screws.
  7. Remove the recirculation actuator assembly from the shaft.

    Remove by pulling the assembly towards the front of the dash.
