Wiper/Washer System Component Views

WARNING: This page is about a different car, the 2002 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

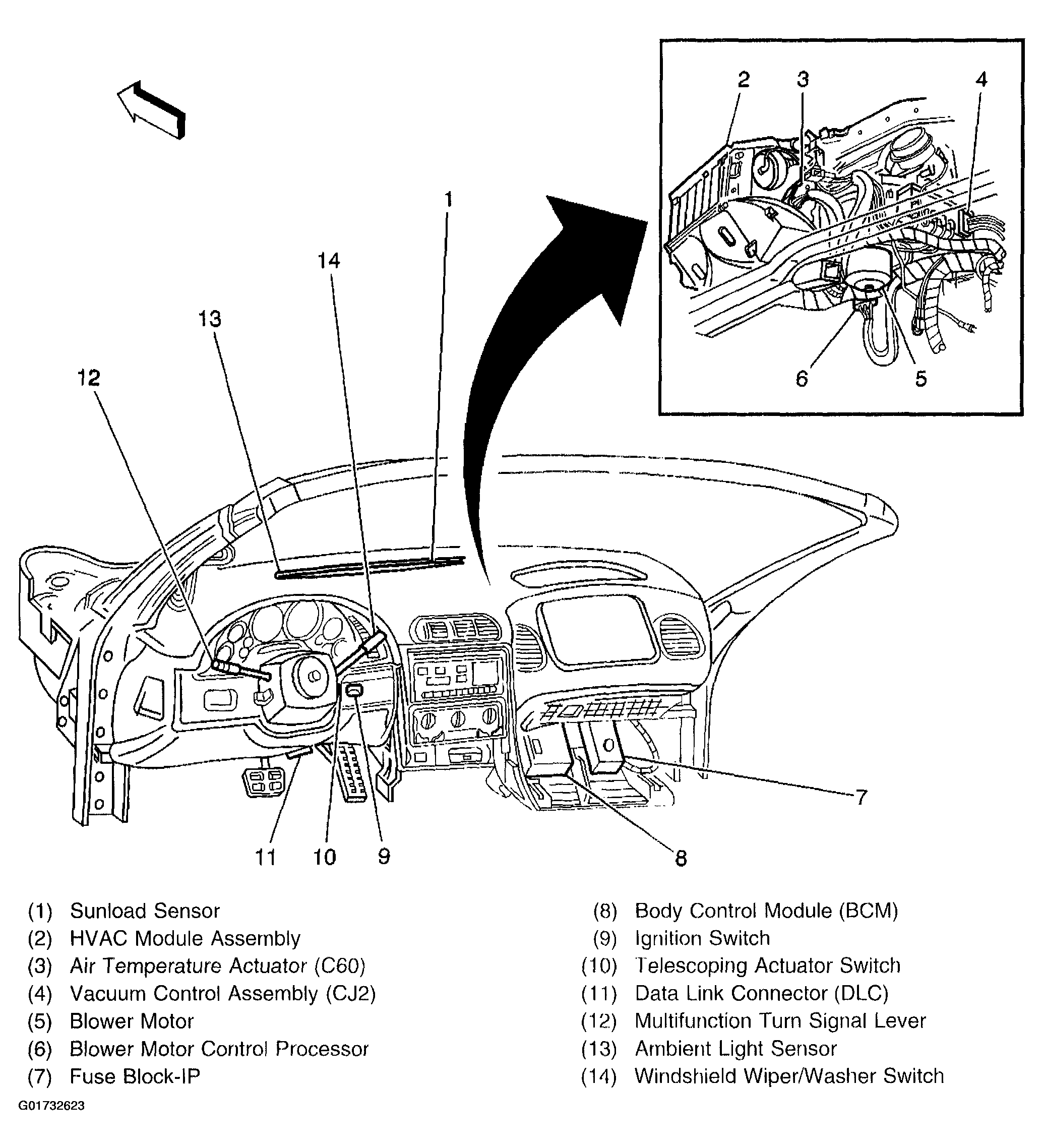

Fig 1: Instrument Panel
G01732623Courtesy of GENERAL MOTORS CORP.
