Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper arms. Refer to Wiper Arm Replacement .
  2. Remove the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT .
  3. Disconnect the wiper motor electrical connector.
  4. Remove the wiper motor module upper bolt.

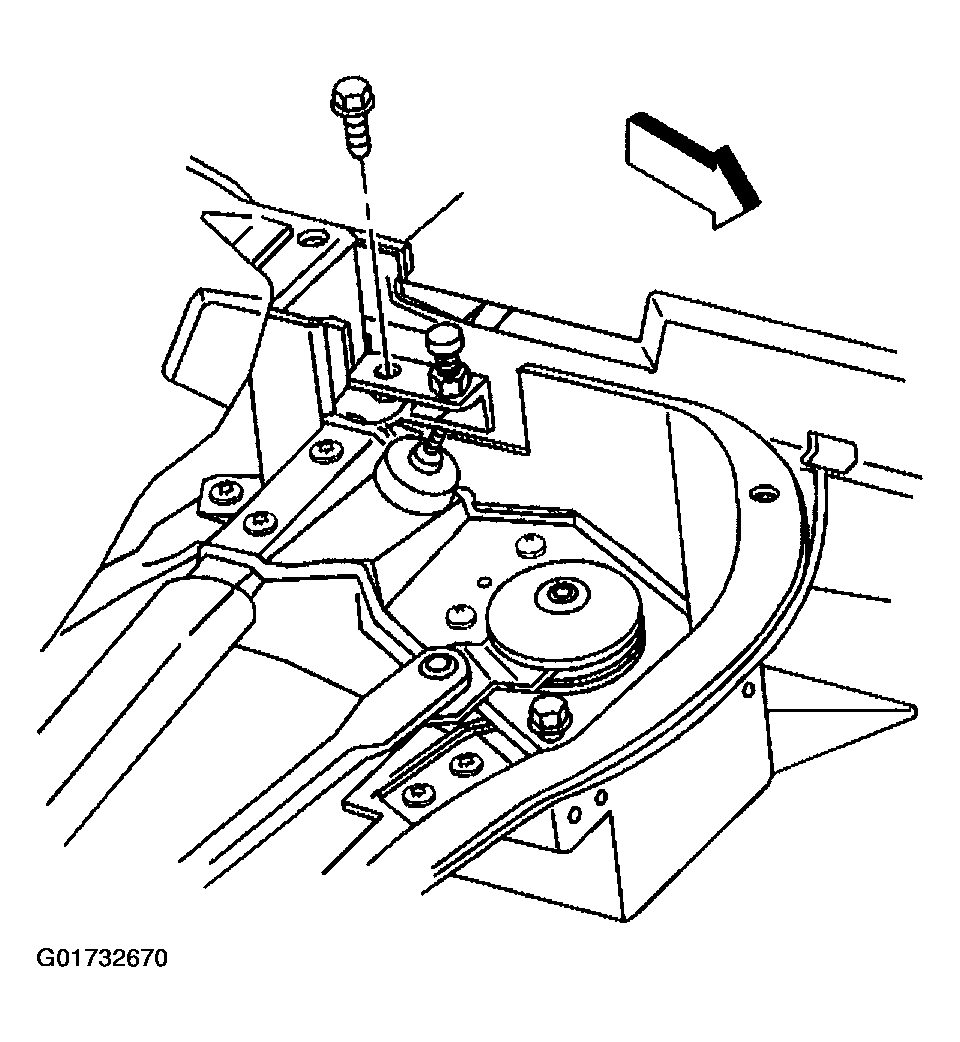

    Fig 1: Removing Wiper Motor Module Upper Bolt
    G01732670Courtesy of GENERAL MOTORS CORP.
  5. Remove the wiper motor module bolts.
  6. Remove the wiper motor module from the vehicle.

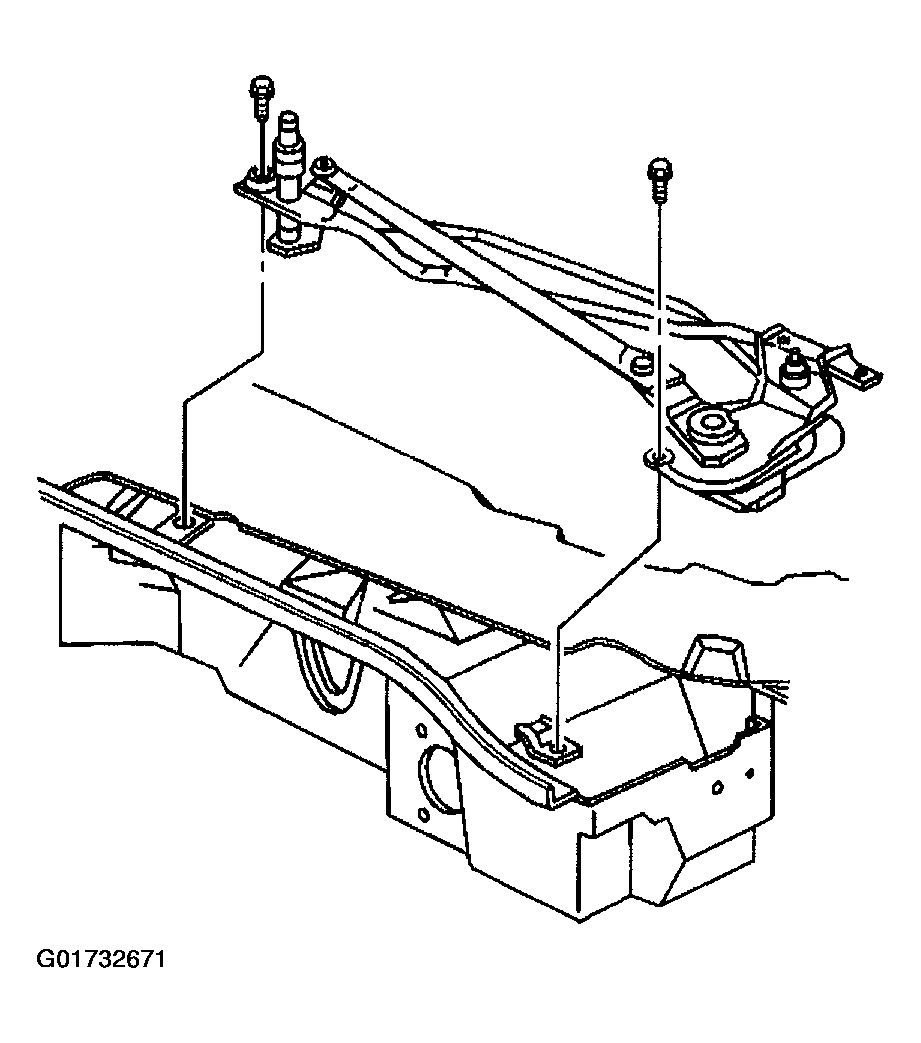

    Fig 2: Removing Wiper Motor Module
    G01732671Courtesy of GENERAL MOTORS CORP.
