Battery
Locations View:

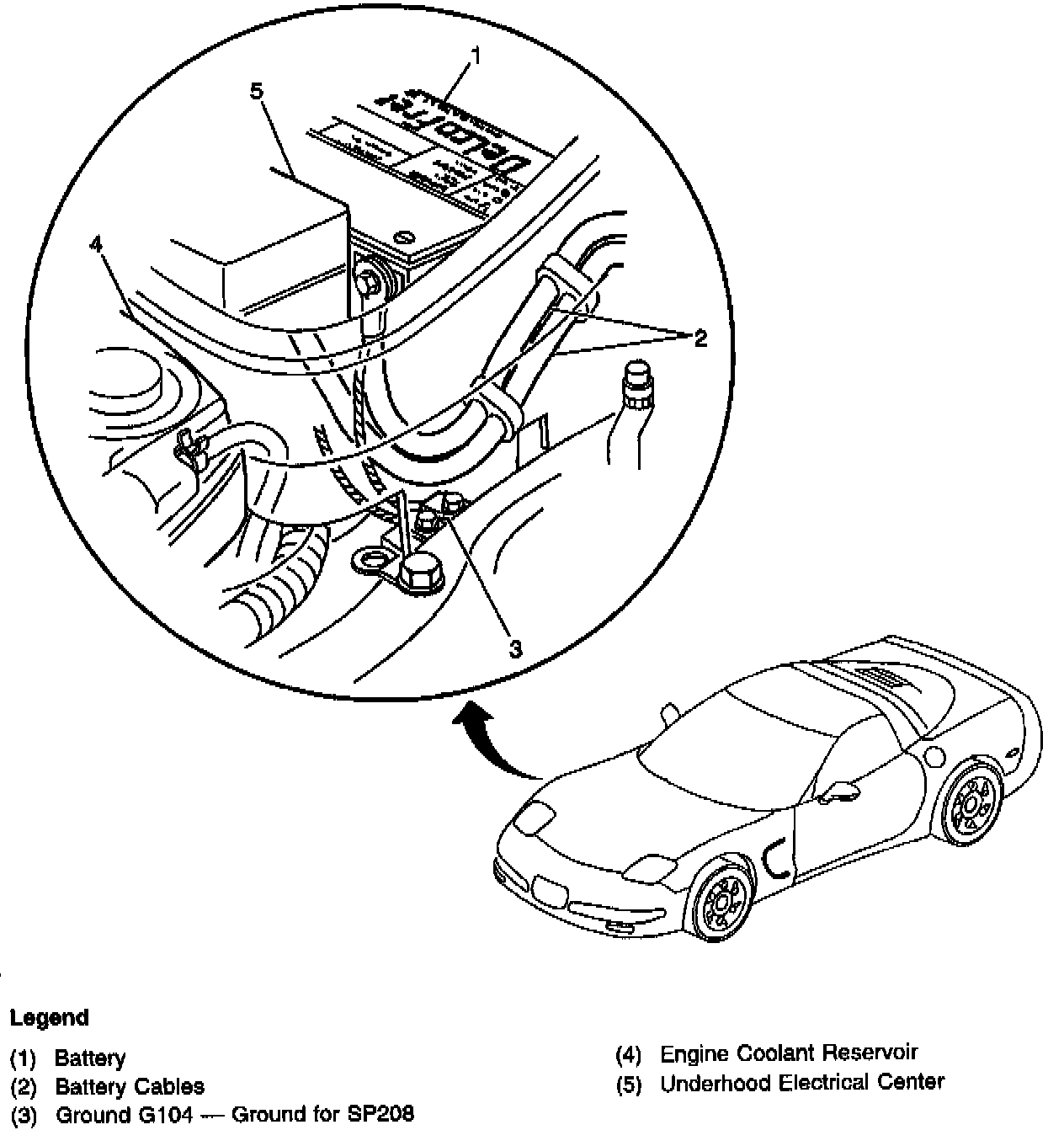

Locations View:
Rear RH side of the engine compartment, rearward of the RH wheelhouse.
