LH Seat Control Module (SCM) C1 (Telescopic and Memory)

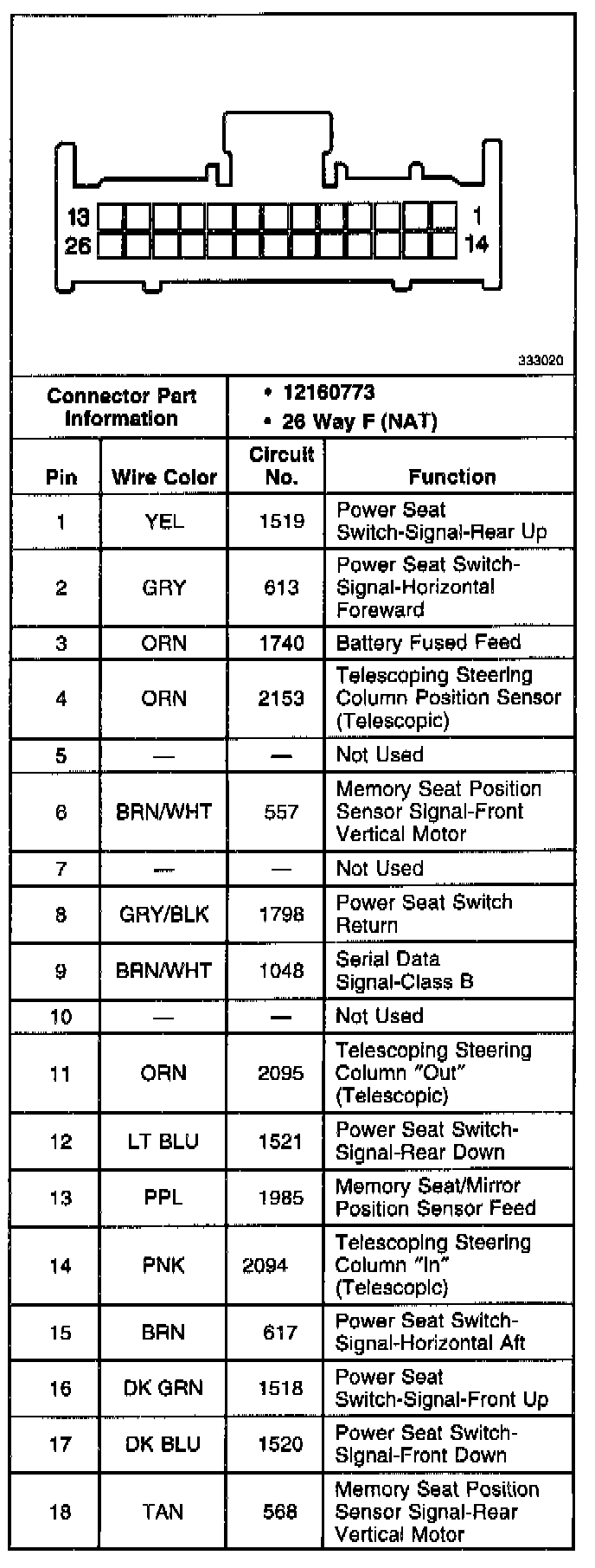

LH Seat Control Module (SCM) C1 (Telescopic And Memory):



LH Seat Control Module (SCM) C1 (Telescopic And Memory) (Part 2 of 2):
