LH Door Control Module (DCM)

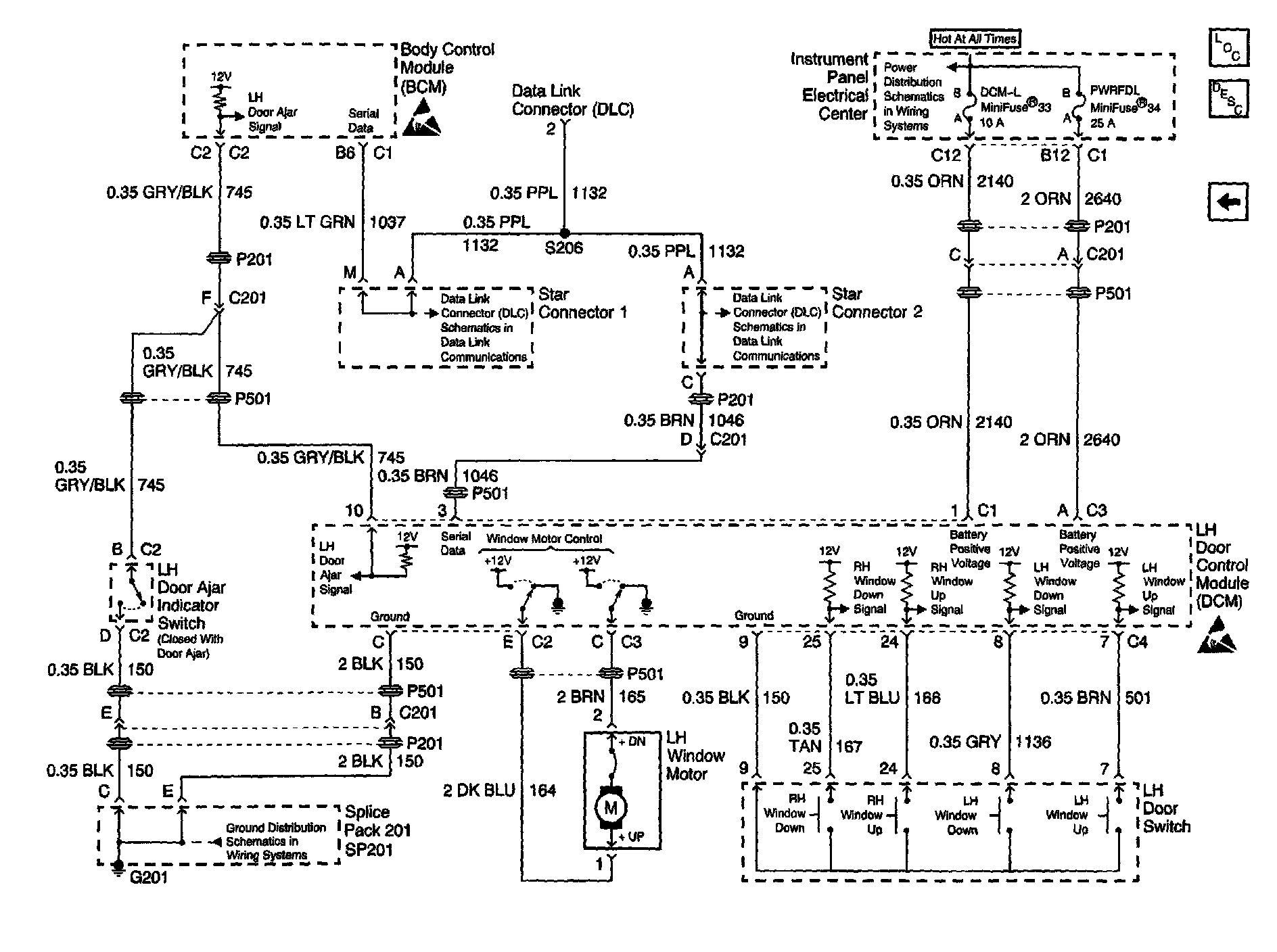

Retained Accessory Power (RAP) Schematics: LH Door Control Module (DCM):
