RH Door Control Module (DCM)

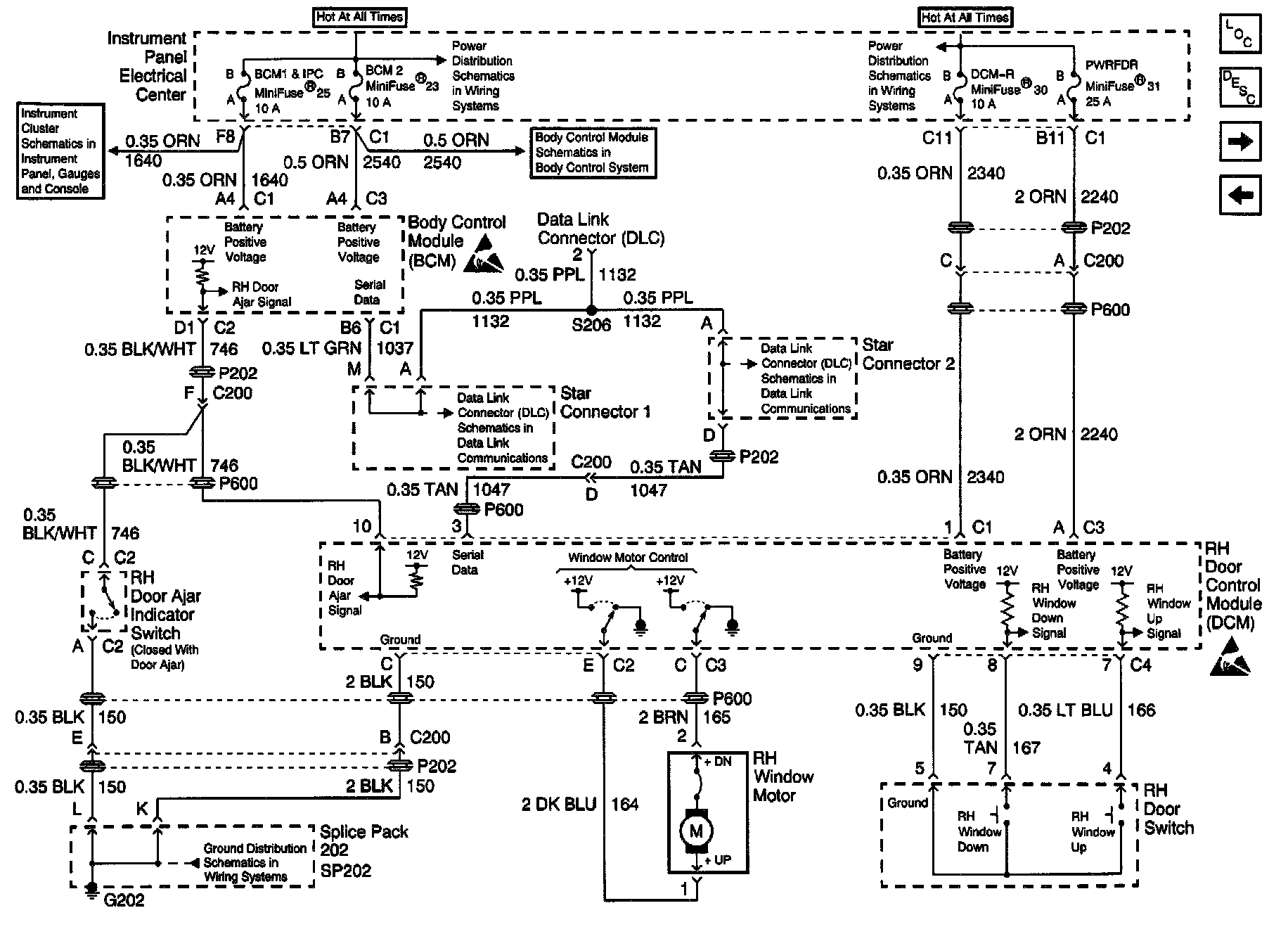

Retained Accessory Power (RAP) Schematics: RH DOOR CONTROL MODULE (DCM)):
