Manual Transmission/Transaxle

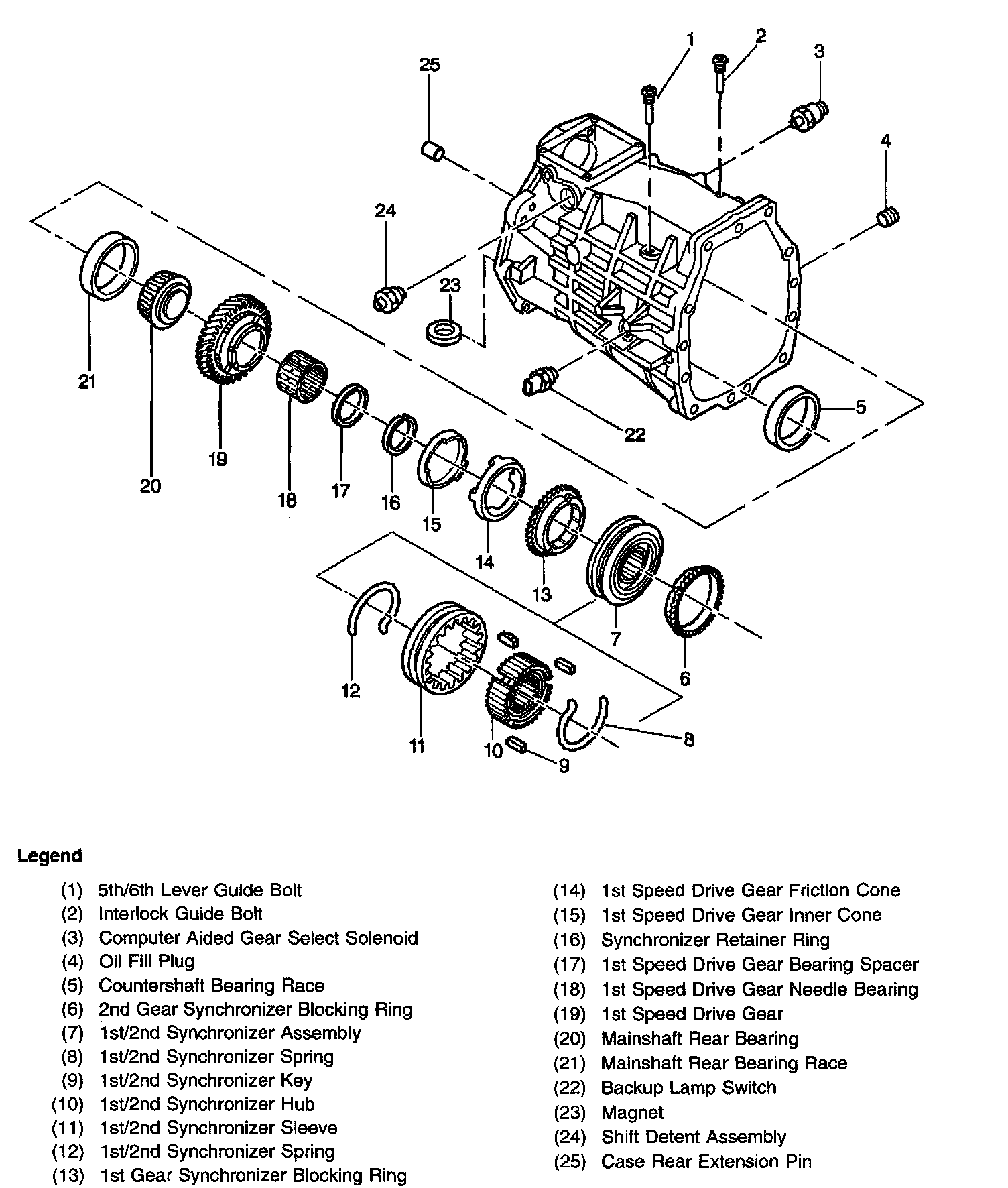

Transmission Case (1 of 2)

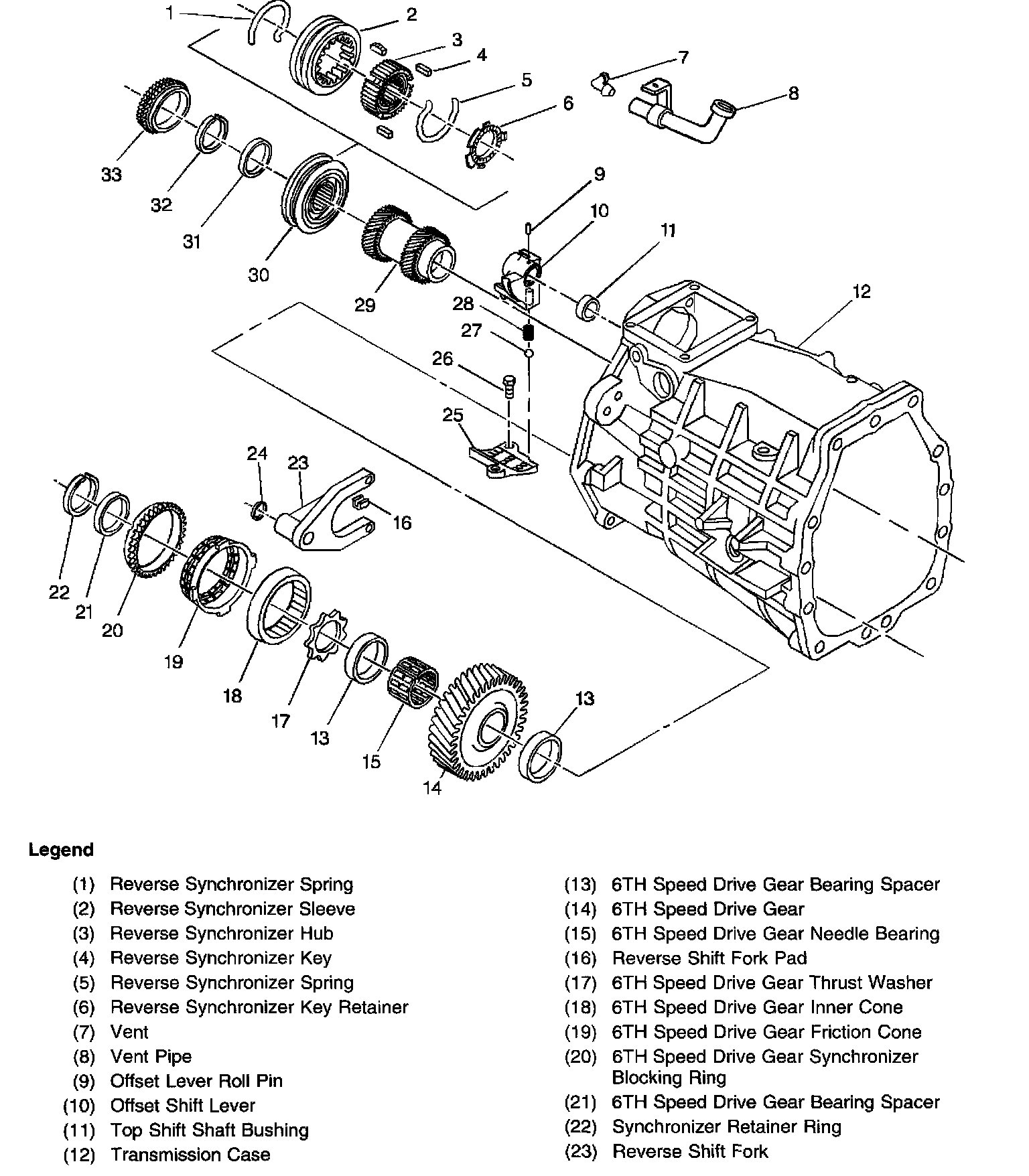

Transmission Case (2 of 2)

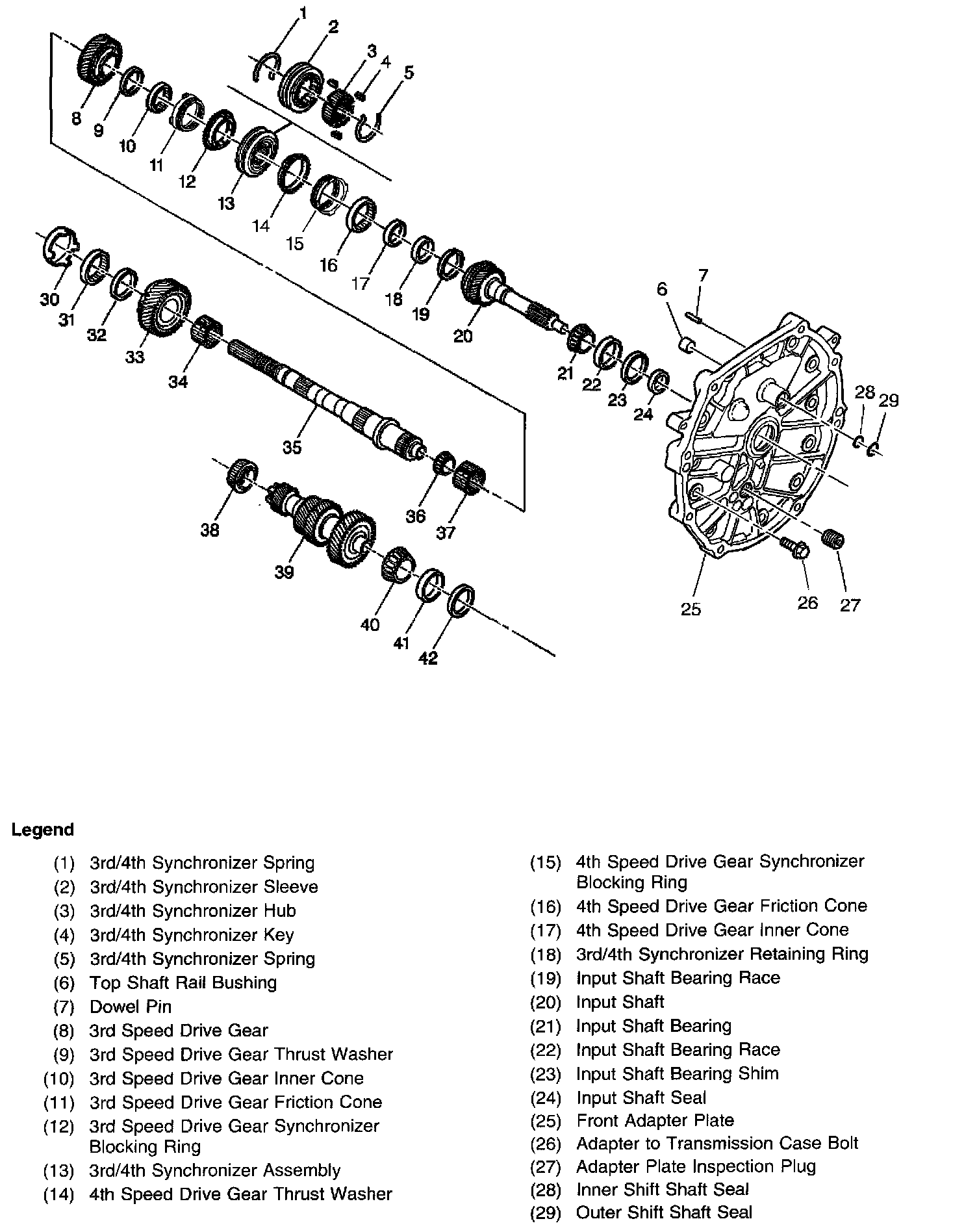

Adapter Plate and Gears

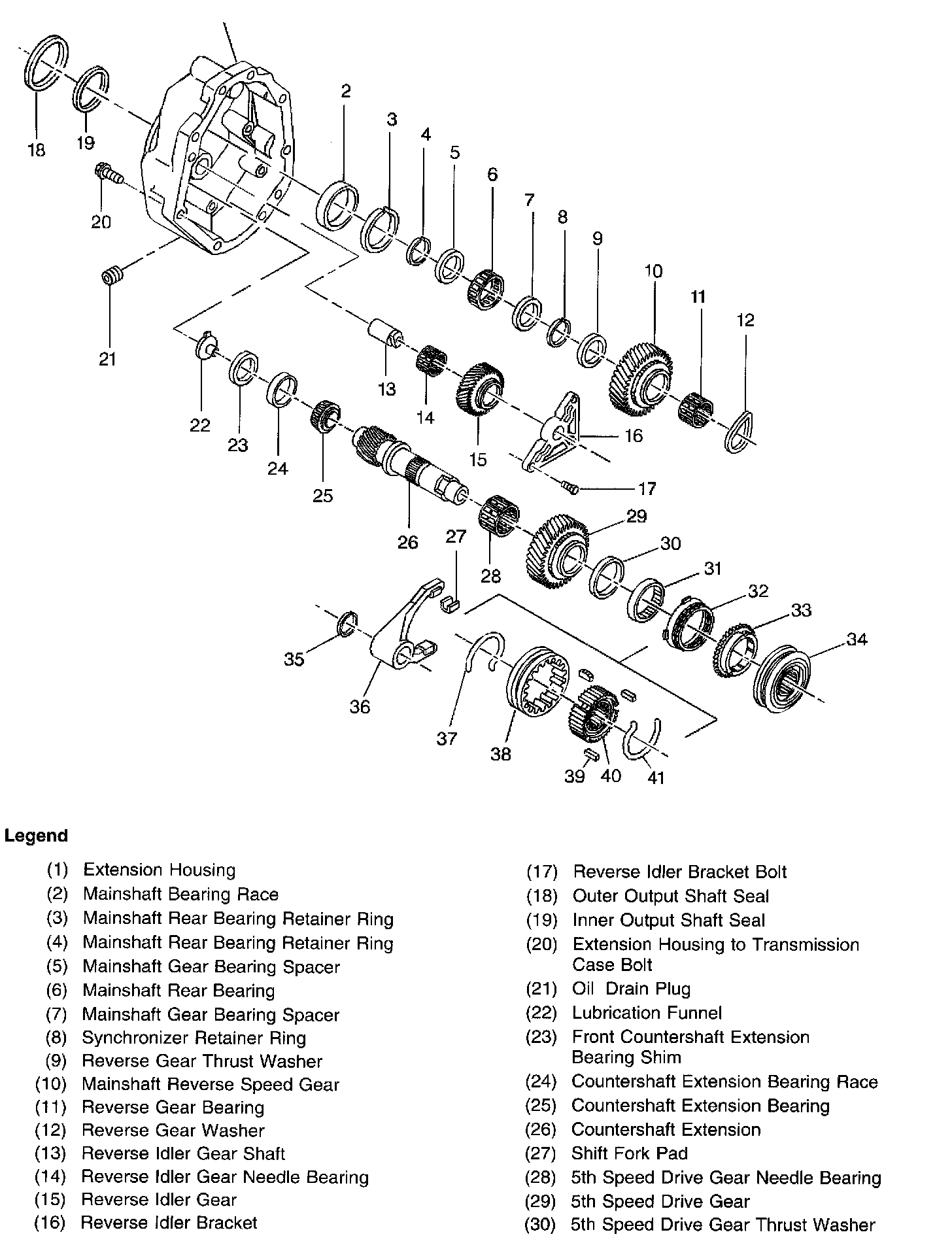

Extension Housing





Reverse Lockout

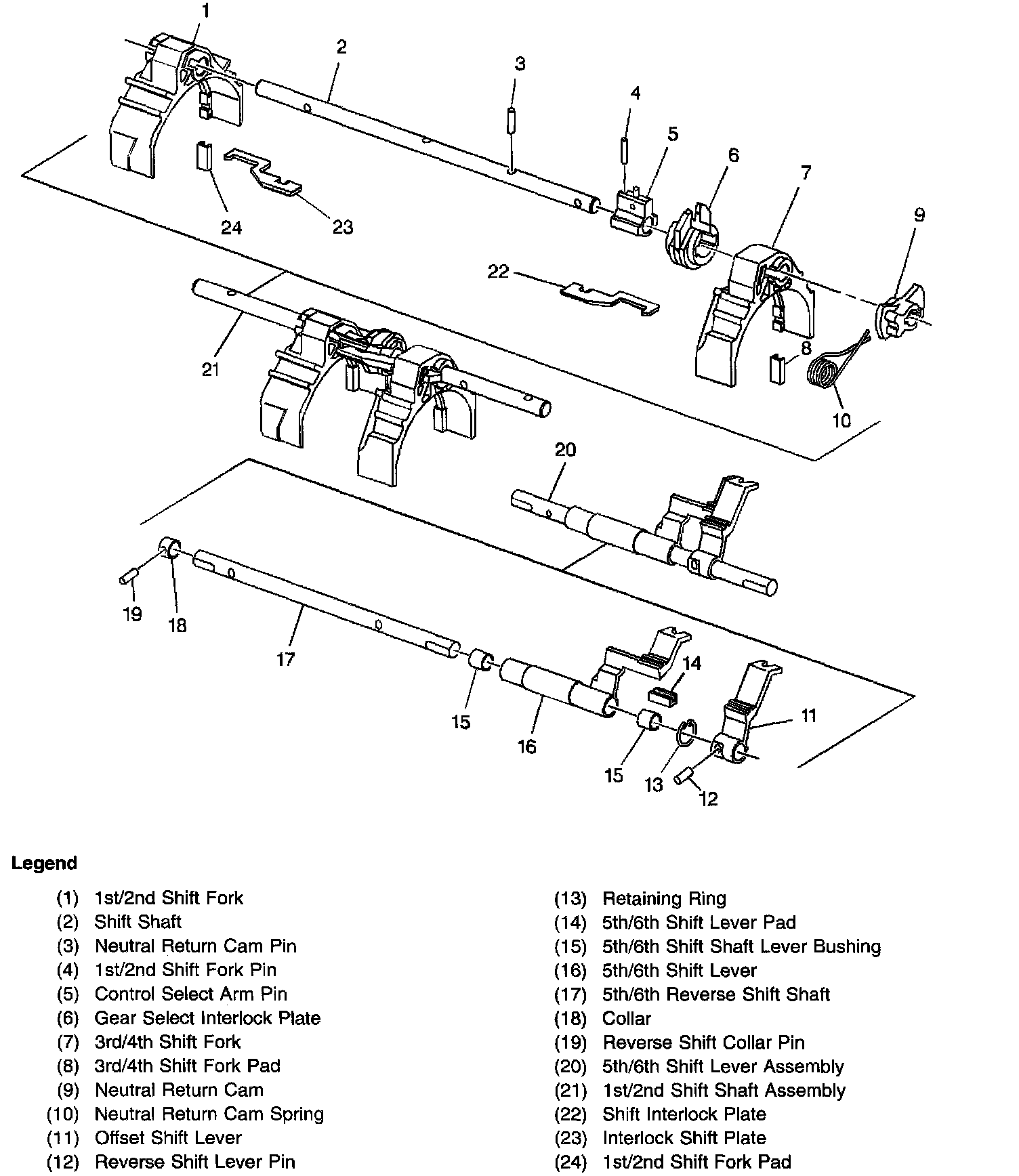

Shift Shafts
