Keyless Entry Receiver: Diagrams

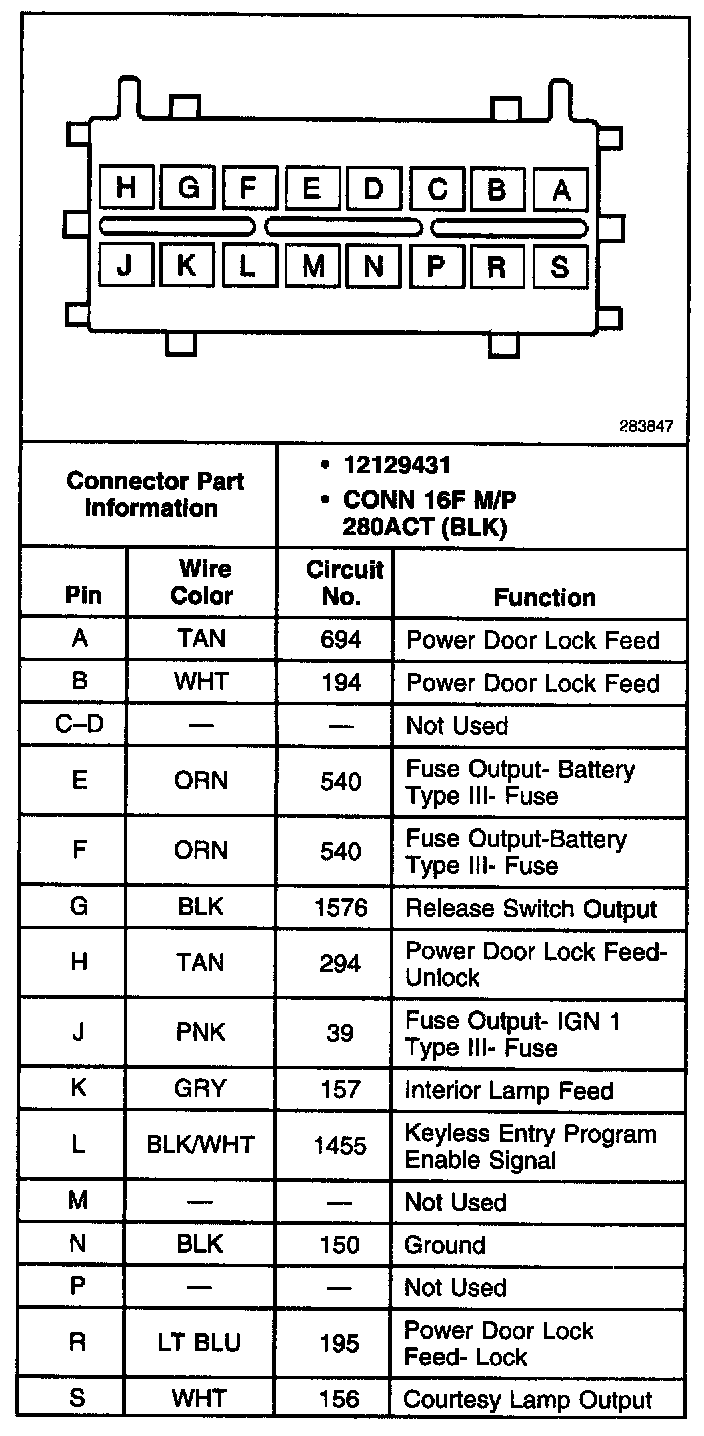

Remote Control Door Lock Receiver Connector (AUO):

For a Description of RPO Code(s) shown in this article refer to the RPO Code List found at Vehicle/Application and ID Application and ID
