IP Fuse Block Connector

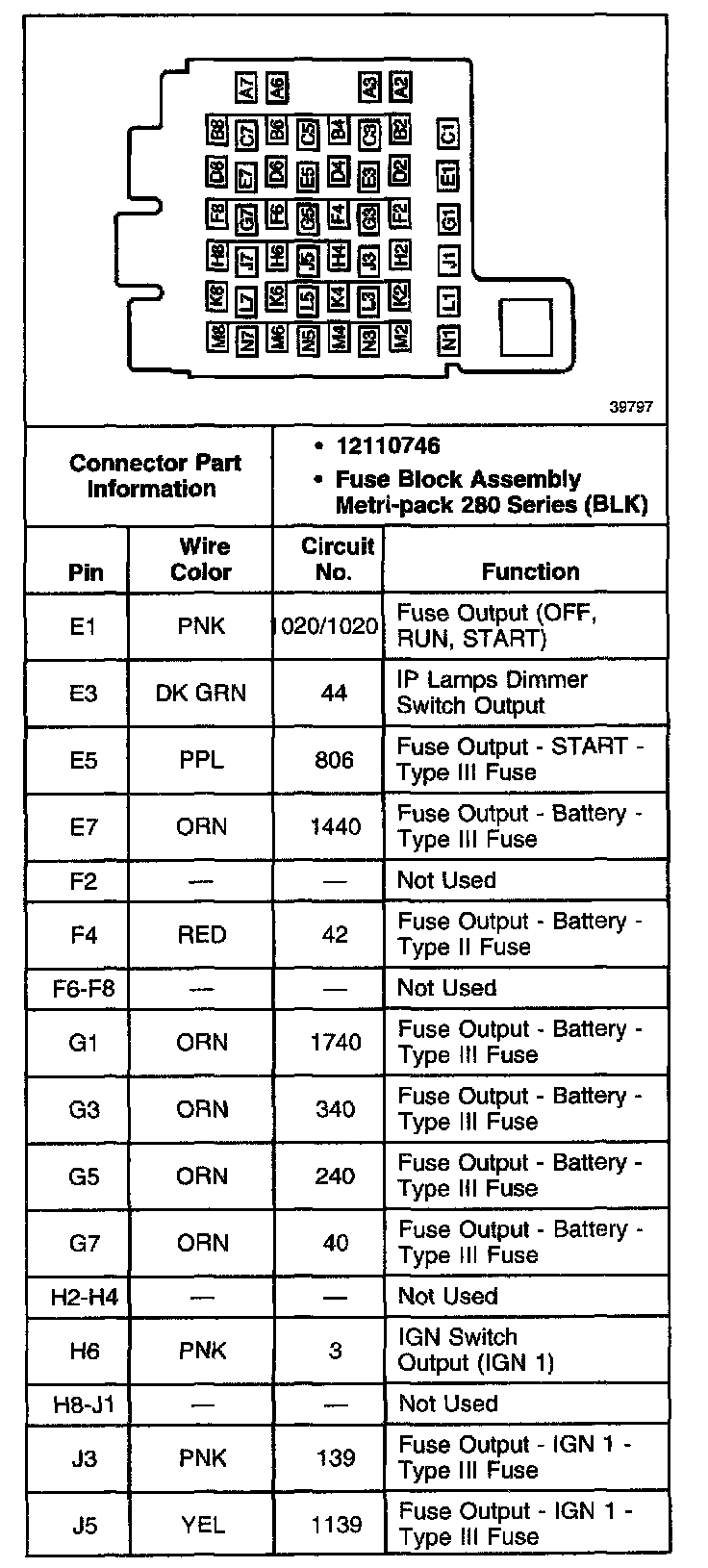

IP Fuse Block Connector (Part 1 Of 3):

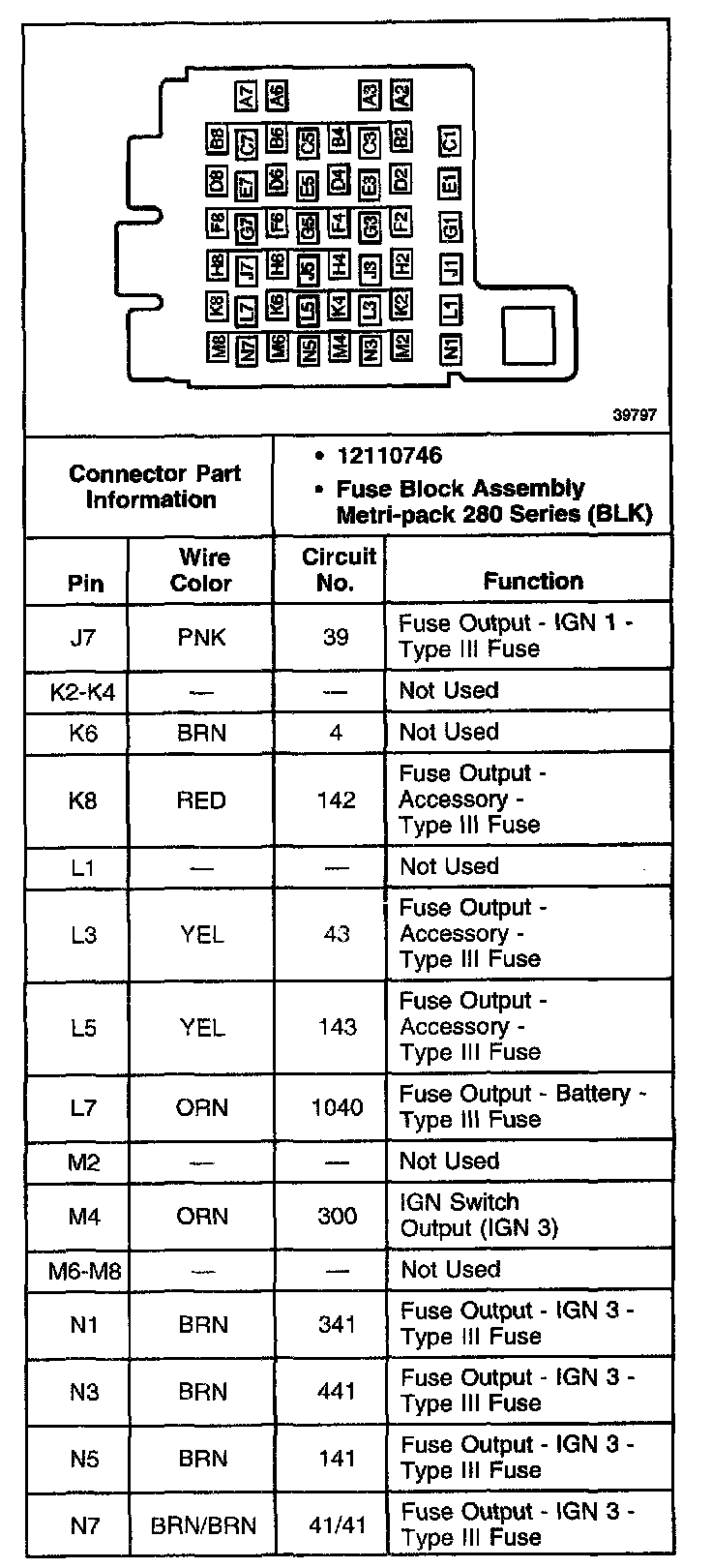

IP Fuse Block Connector (Part 2 Of 3):

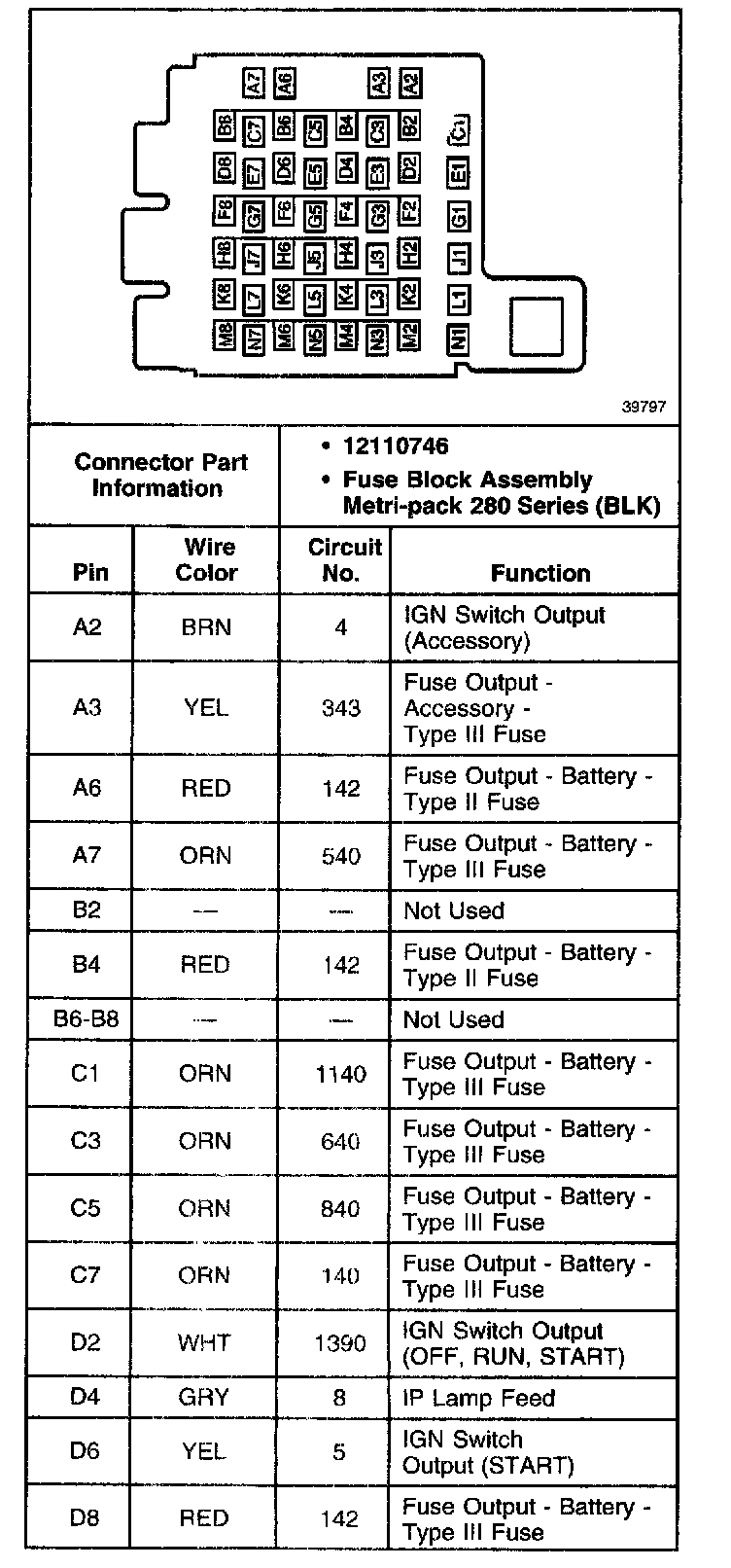

IP Fuse Block Connector (Part 3 Of 3):
