Differential Assembly

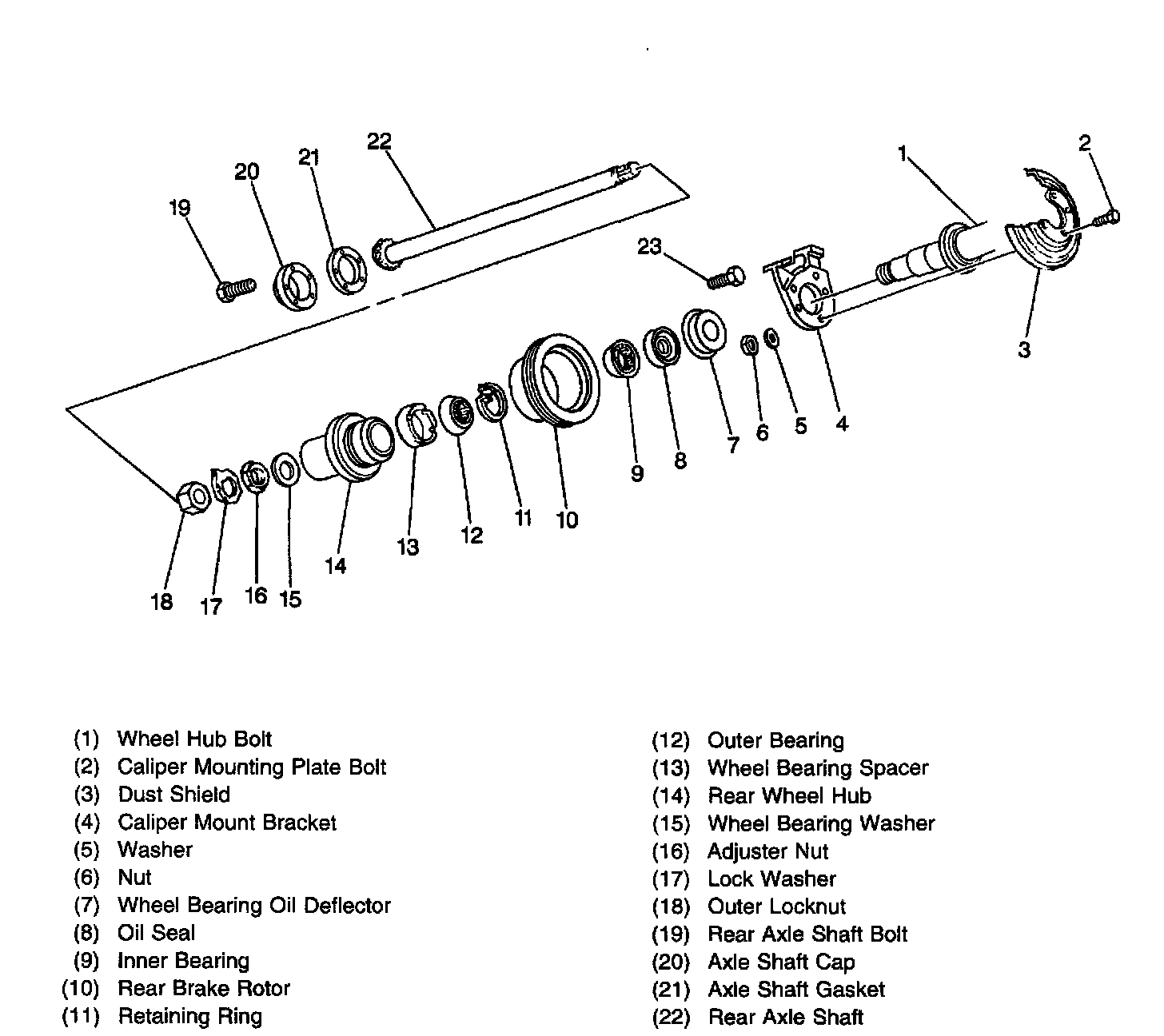

Full-Floating Axle Wheel End Components





8.6 9 1/2 Rear Axle Differential Pinion Disassemble





8.6 9 1/2 Differential Case Disassemble
