Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb to the IP compartment lamp switch.
  2. Connect the electrical connector to the IP compartment lamp switch.
  3. Position the IP compartment lamp switch into the opening in the IP compartment. Press to secure the retaining tabs.
  4. Close the IP compartment door.

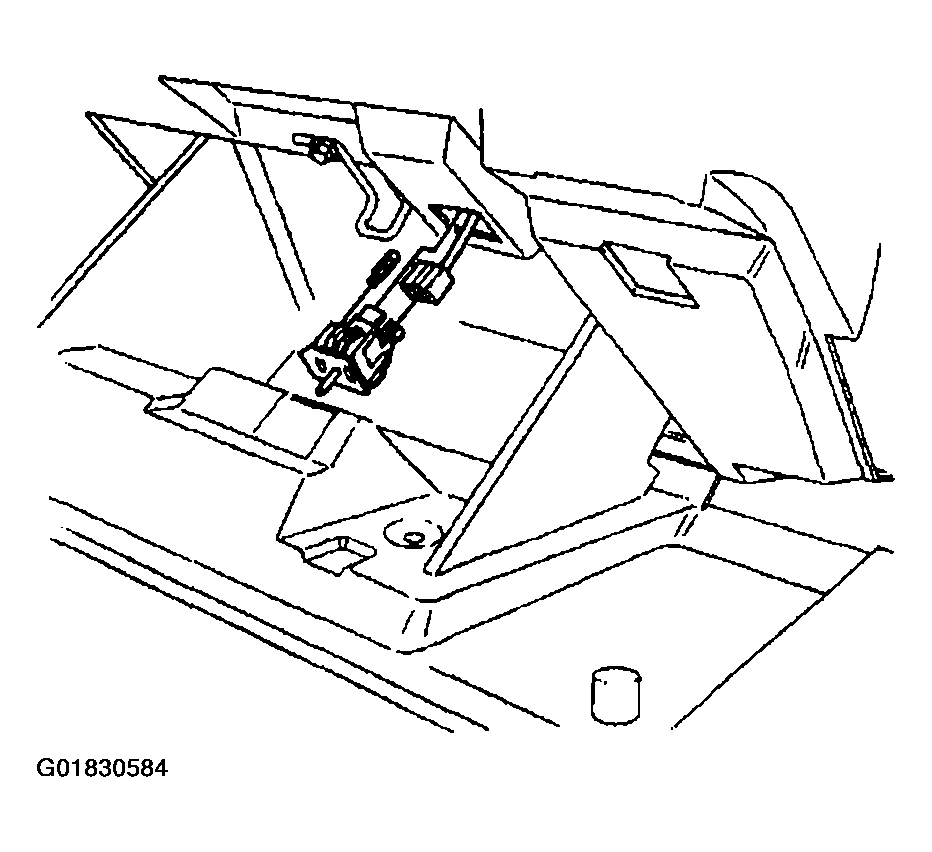

    Fig 1: Installing Electrical Connector To IP Compartment Lamp Switch
    G01830584Courtesy of GENERAL MOTORS CORP.
