Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the cruise control cable adjuster lock.
  2. Rotate the cruise control cable counterclockwise. Remove the cruise control cable from the cruise control module.
    Fig 1: Remove Cruise Control Cable & Cruise Control Adjuster Lock
    G01831002Courtesy of GENERAL MOTORS CORP.
  3. Remove the cruise control cable from the retainer on the cruise control module bracket.

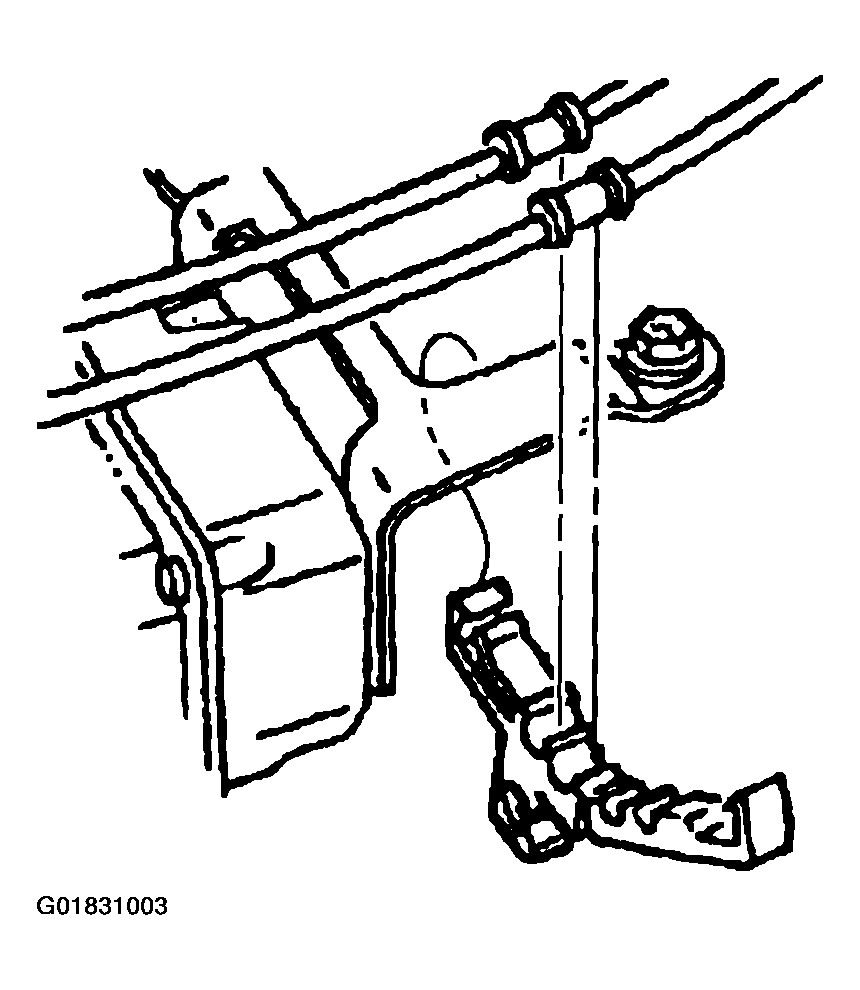

    Fig 2: Remove Cruise Control Cable From Retainer On Cruise Control Module Bracket
    G01831003Courtesy of GENERAL MOTORS CORP.
  4. Remove the cruise control cable from the cam pin.
  5. Remove the cruise control cable from the throttle body bracket.
  6. Remove the cruise control cable from the vehicle.
    Fig 3: Remove Cruise Control Cable From Vehicle
    G01831004Courtesy of GENERAL MOTORS CORP.
