Data Link Connector (DLC)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Data Link Connector (DLC)
Locations View:
Locations View:

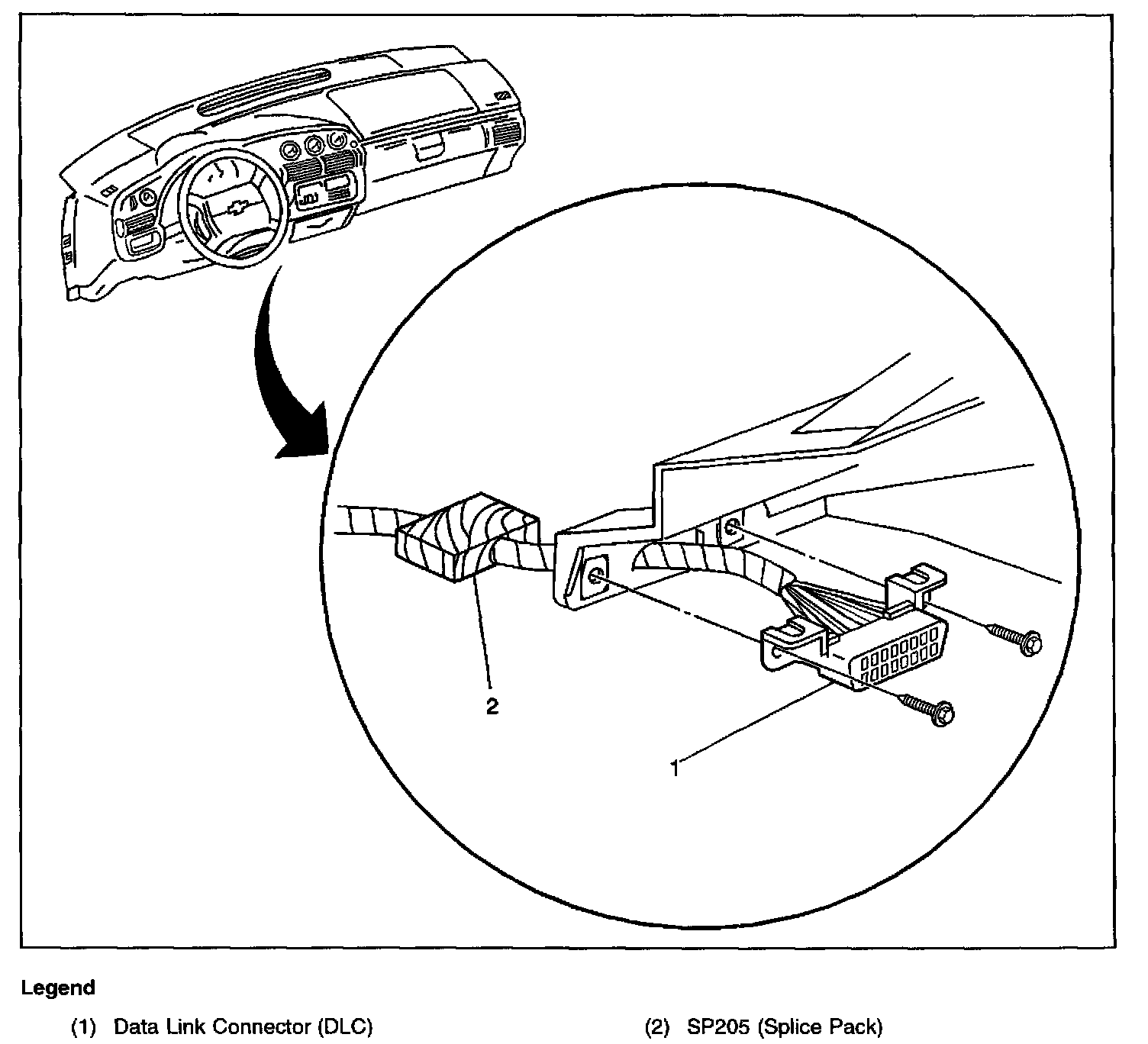

On the bottom of the instrument panel, to the right of the steering column.
