Driver/Vehicle Information Display

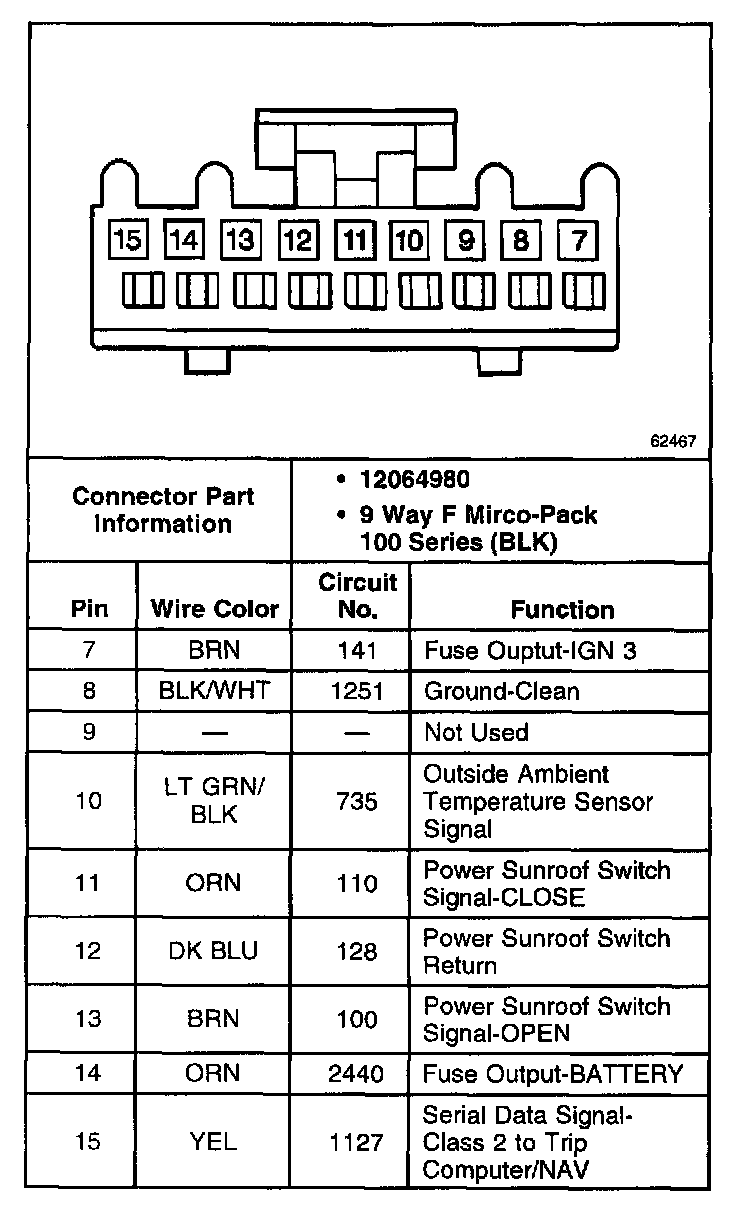

Driver Information Display:





RPO U68: For a Description of RPO Code(s) shown in this article refer to the RPO Code List found at Vehicle/Application and ID RPO Codes
