Sensing & Diagnostic Module: Installation

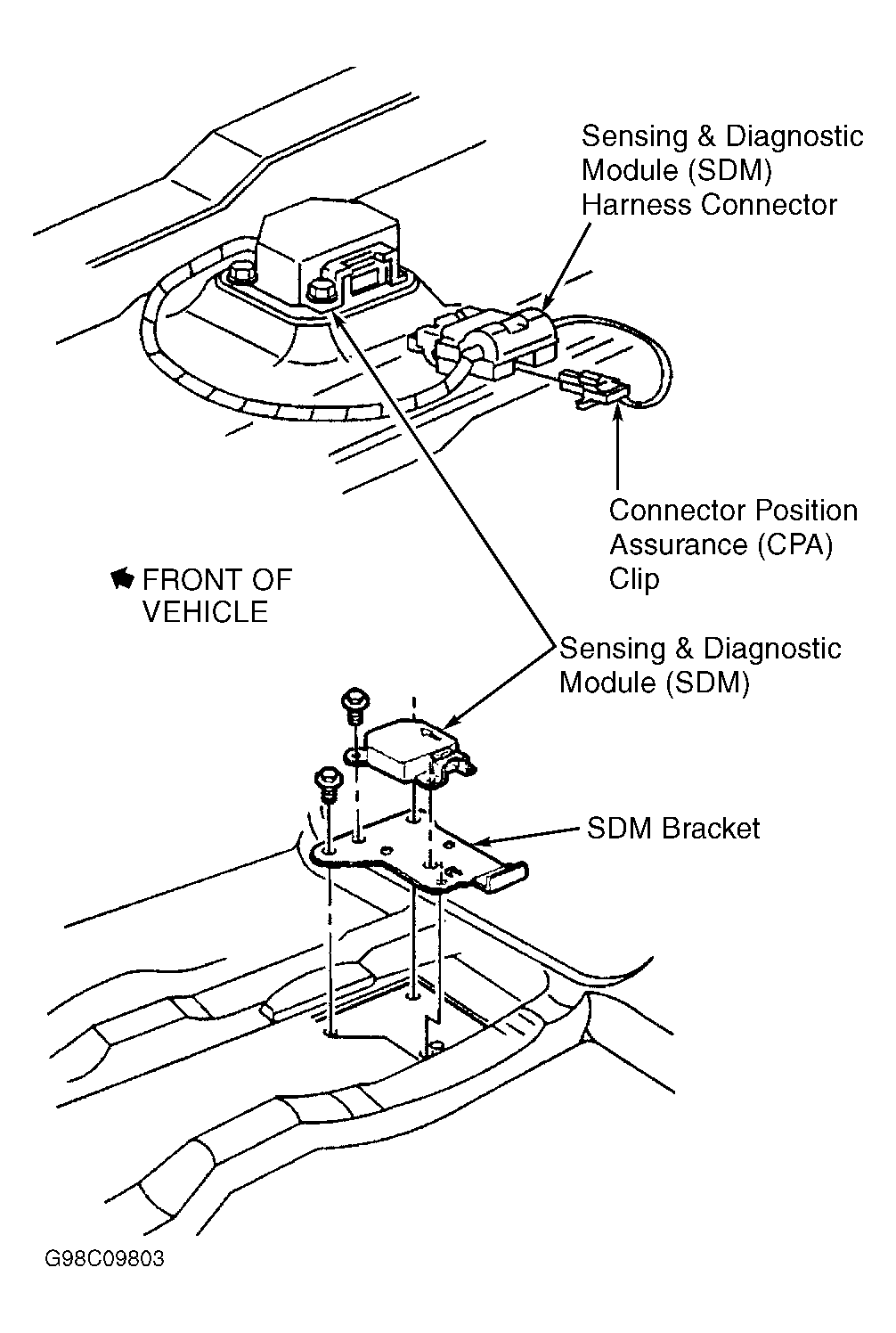

- Mount SDM on vehicle, ensuring arrow is pointing toward front of vehicle. Install SDM fasteners and tighten to 53 INCH lbs. (6 N.m). Reconnect SDM connector and CPA clip.
- Position insulation and carpet over SDM. Reinstall right-front seat and carpet retainer. Activate air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM in appropriate AIR BAG RESTRAINT SYSTEMS article. Check system for proper operation. See SYSTEM OPERATION CHECK in appropriate AIR BAG RESTRAINT SYSTEMS article.
