Installation (Rear)

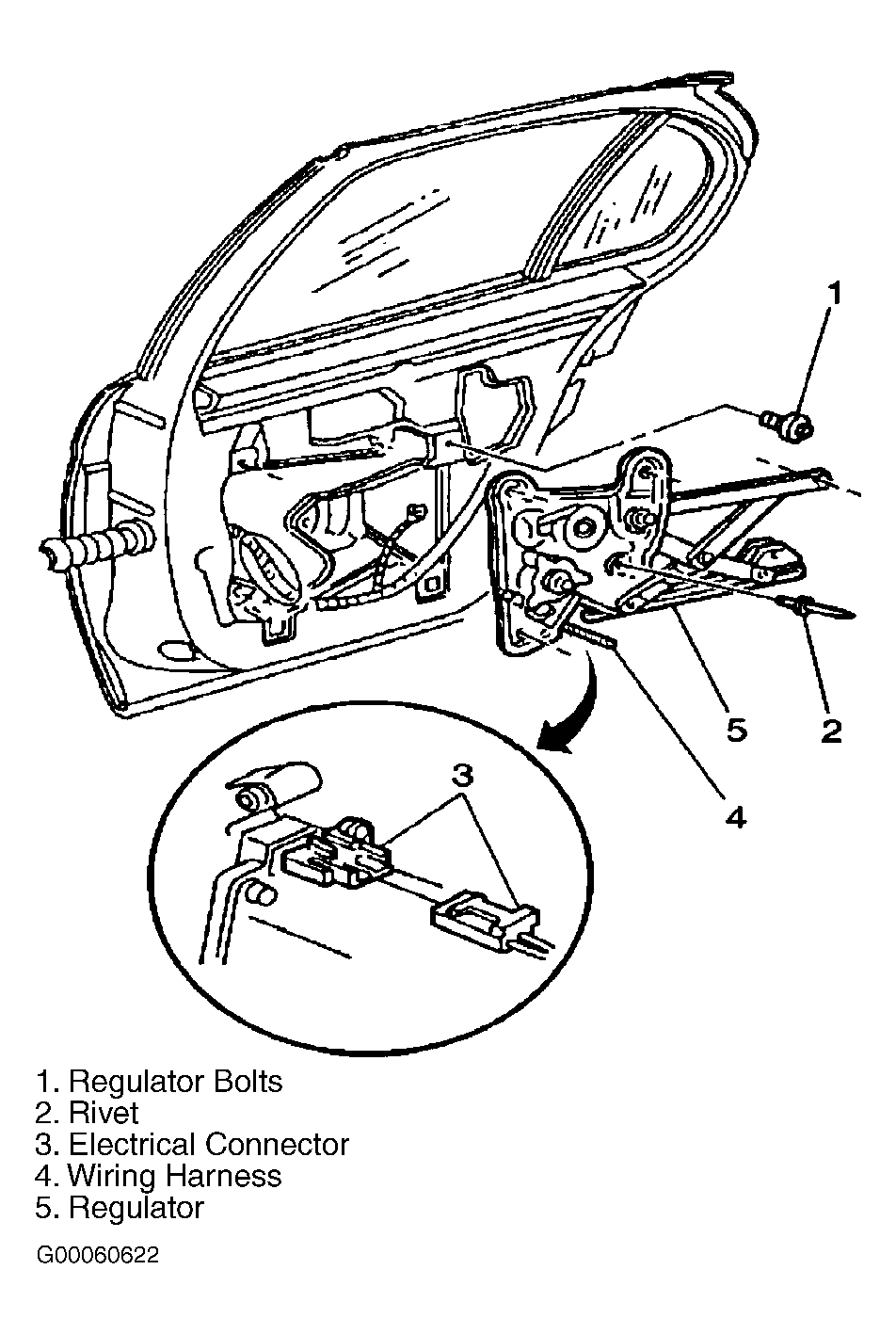

  1. Install rear side door regulator (5). See Figure .
  2. Connect electrical connector.
  3. Install rivets (2).
  4. Install door window regulator bolts (1). Tighten door window regulator bolts to 89 INCH lbs. (10 N.m).
  5. Install rear side door window.
