Instrument Panel Fuse Block

NOTE: Instrument panel fuse block is located on passenger's end of instrument panel. See Fig 1 .

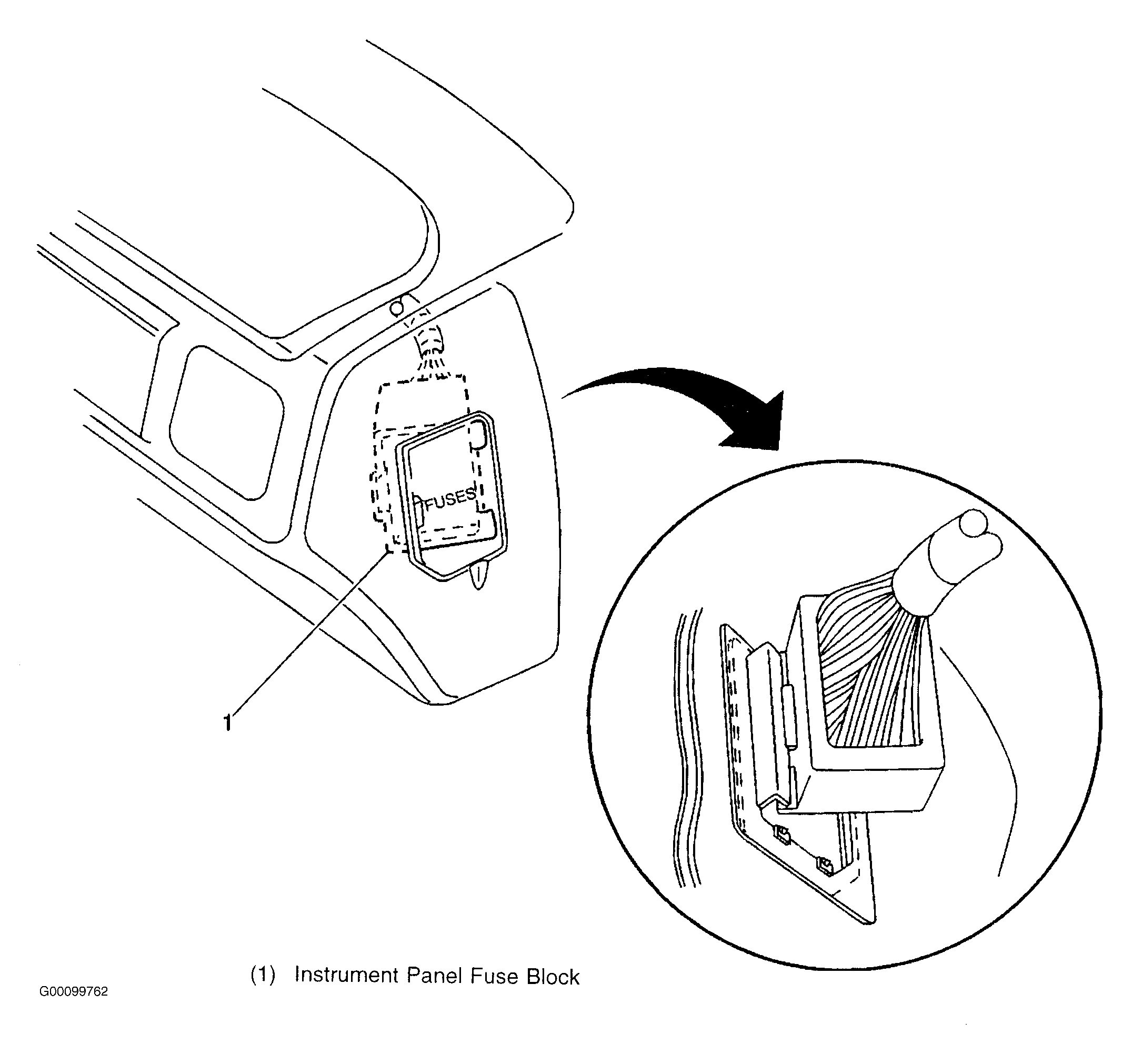

Fig 1: Locating Instrument Panel Fuse Block
G00099762Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Instrument Panel Fuse Block Components
G00027331Courtesy of GENERAL MOTORS CORP.

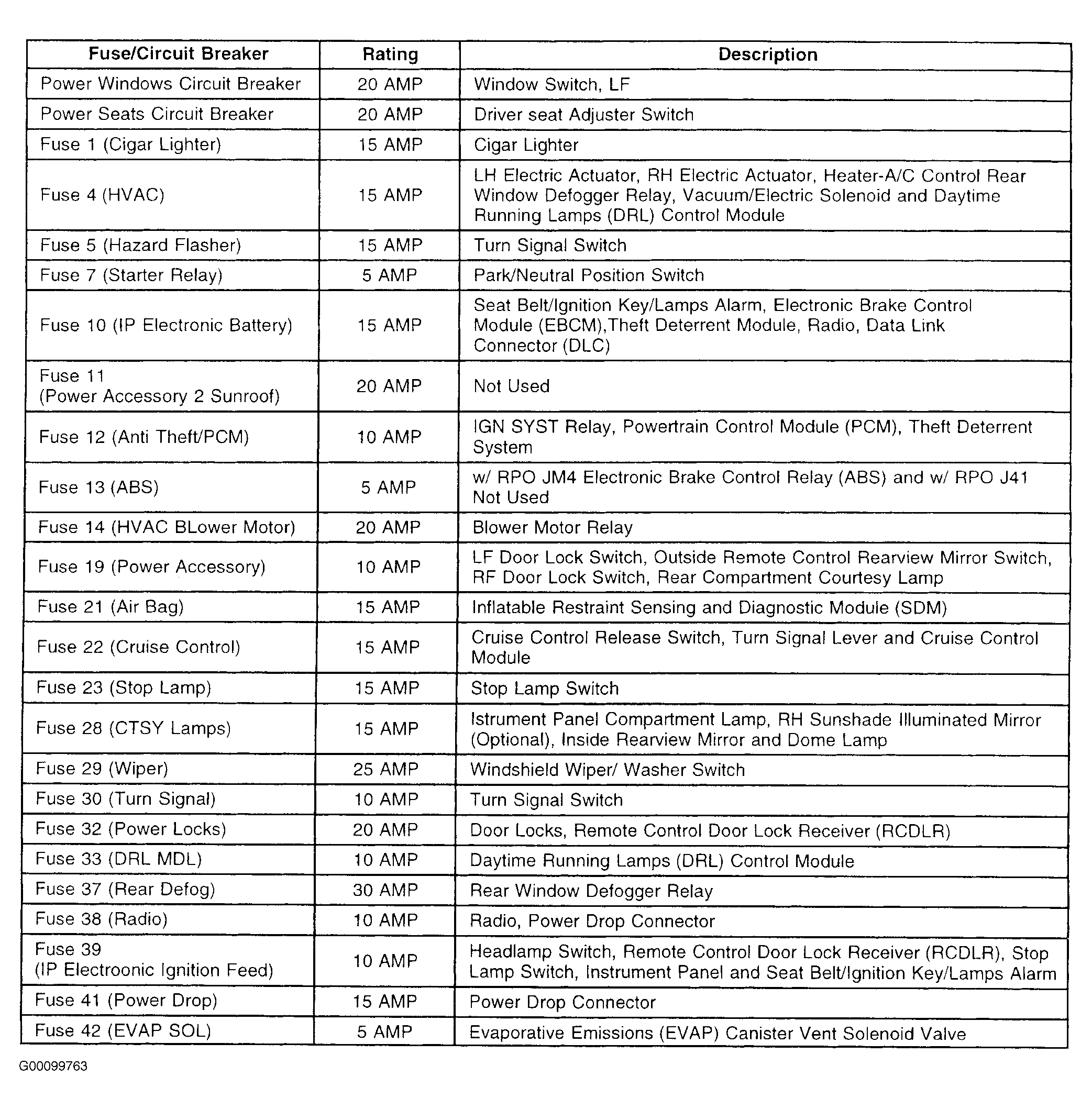

Fig 3: Instrument Panel Fuse Block Legend
G00099763Courtesy of GENERAL MOTORS CORP.
