Starting System: Overhaul

NOTE: Use appropriate illustration for exploded view of starter. See Fig 1 or Fig 2 .

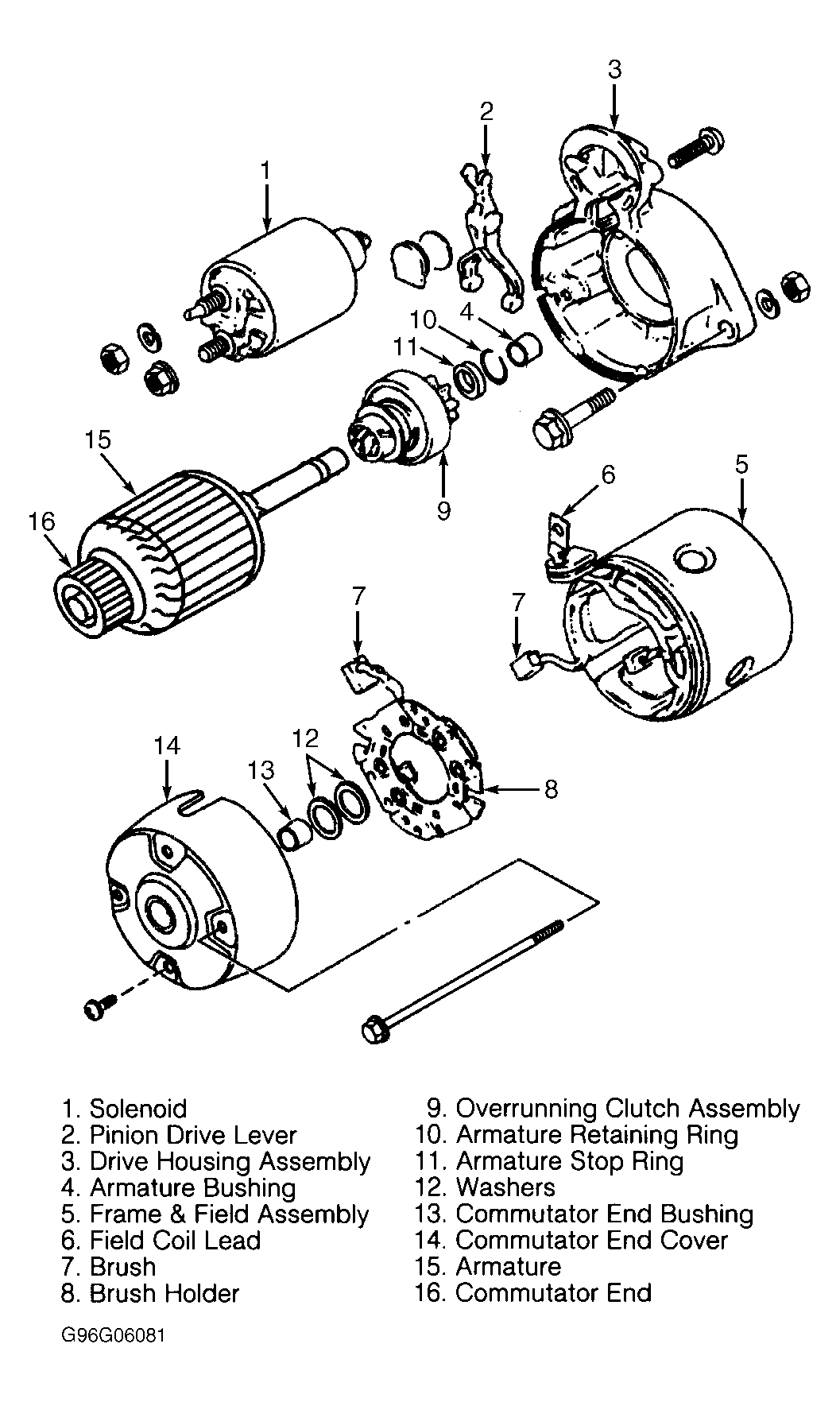

Fig 1: Exploded View Of Mitsubishi Starter (Automatic Transaxle)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Exploded View Of Nippondenso Direct-Drive Starter (Manual Transaxle)

Courtesy of GENERAL MOTORS CORP.
