Mode Control Cable

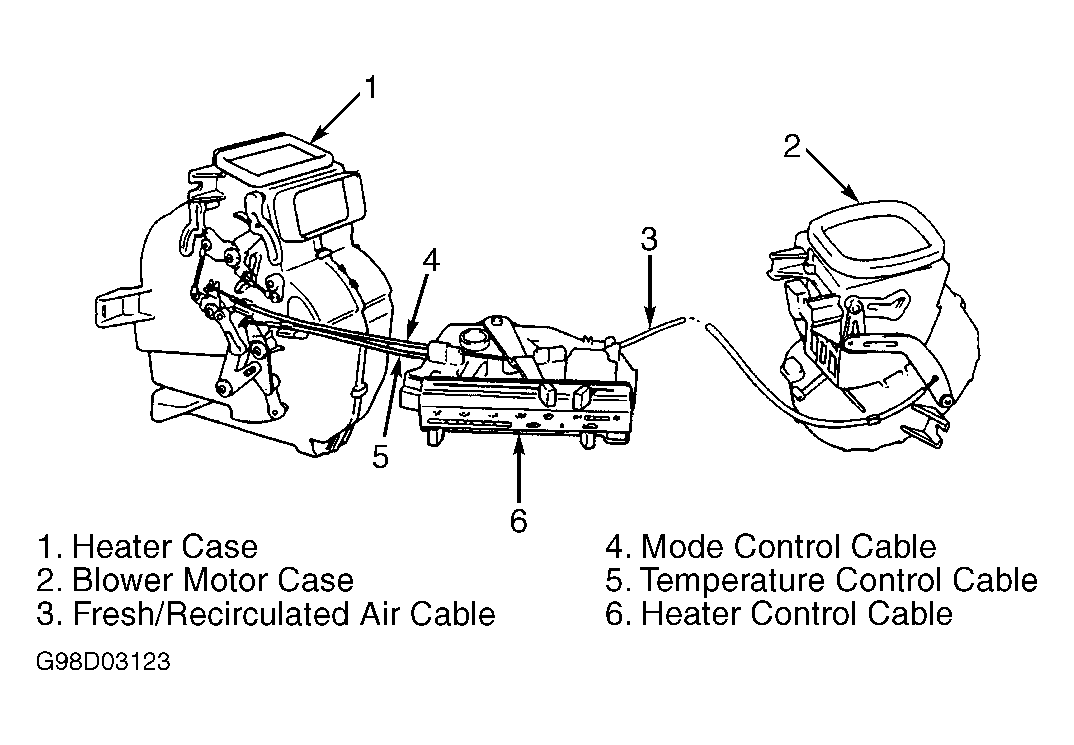

Disconnect mode control cable from clip and door at heater case. Set mode lever to vent position. At heater case, push door lever fully forward (counterclockwise) and attach cable with cable clip. See Figure. Check mode lever for smooth operation and ensure that it stops in correct spots.
