Junction Blocks

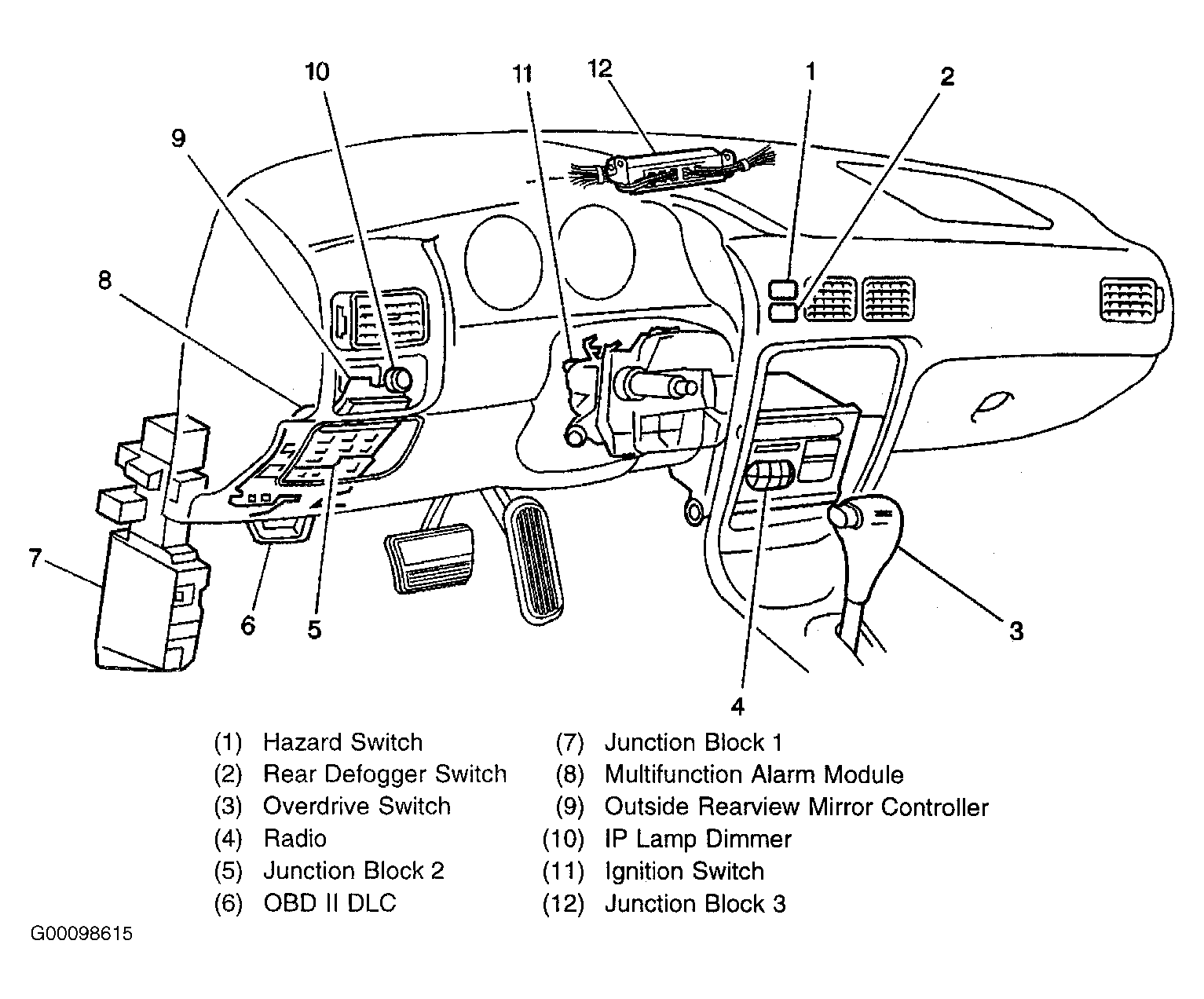

Fig 1: Locating Junction Blocks
G00098615Courtesy of GENERAL MOTORS CORP.

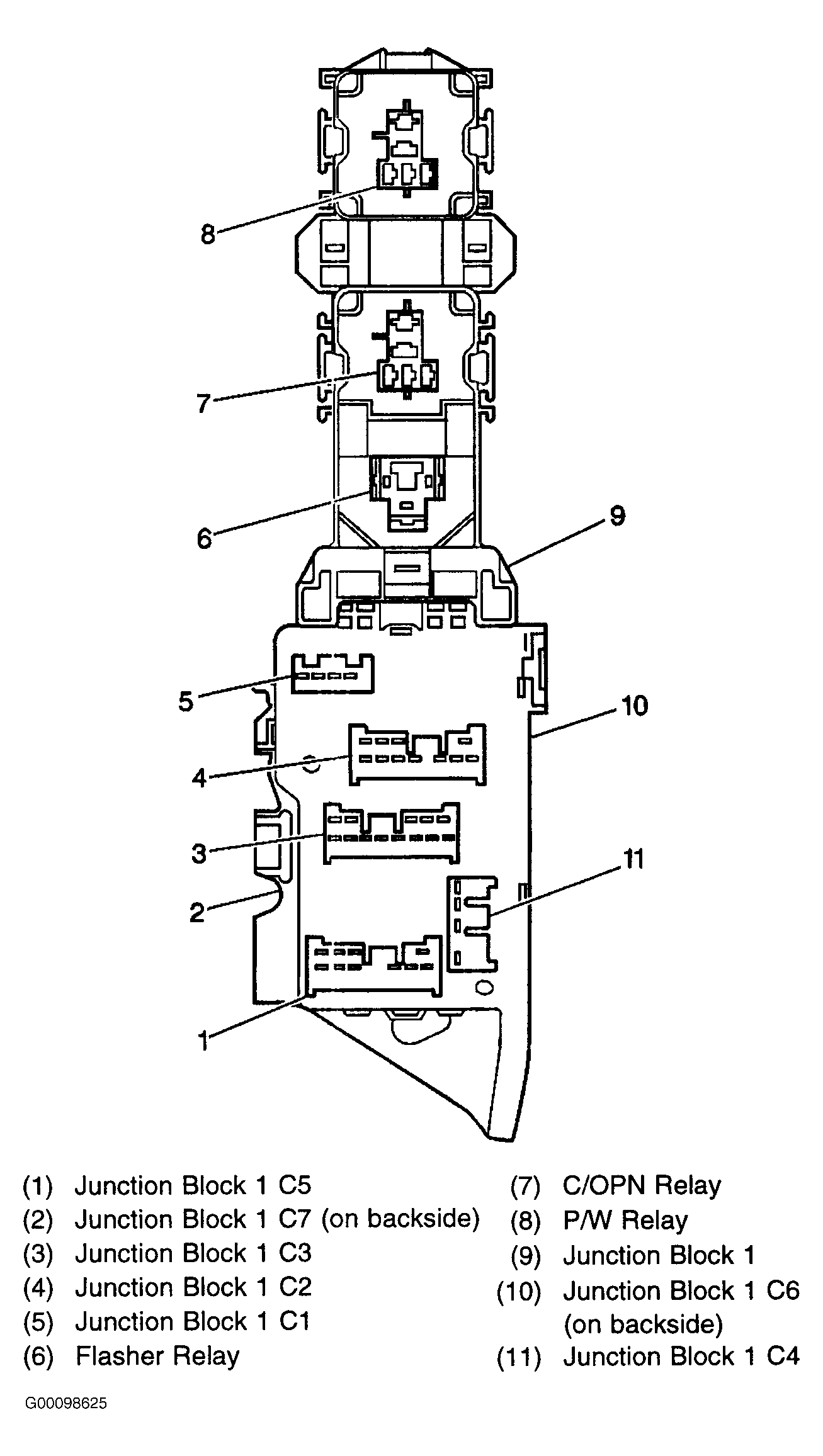

Fig 2: Identifying Junction Block 1
G00098625Courtesy of GENERAL MOTORS CORP.

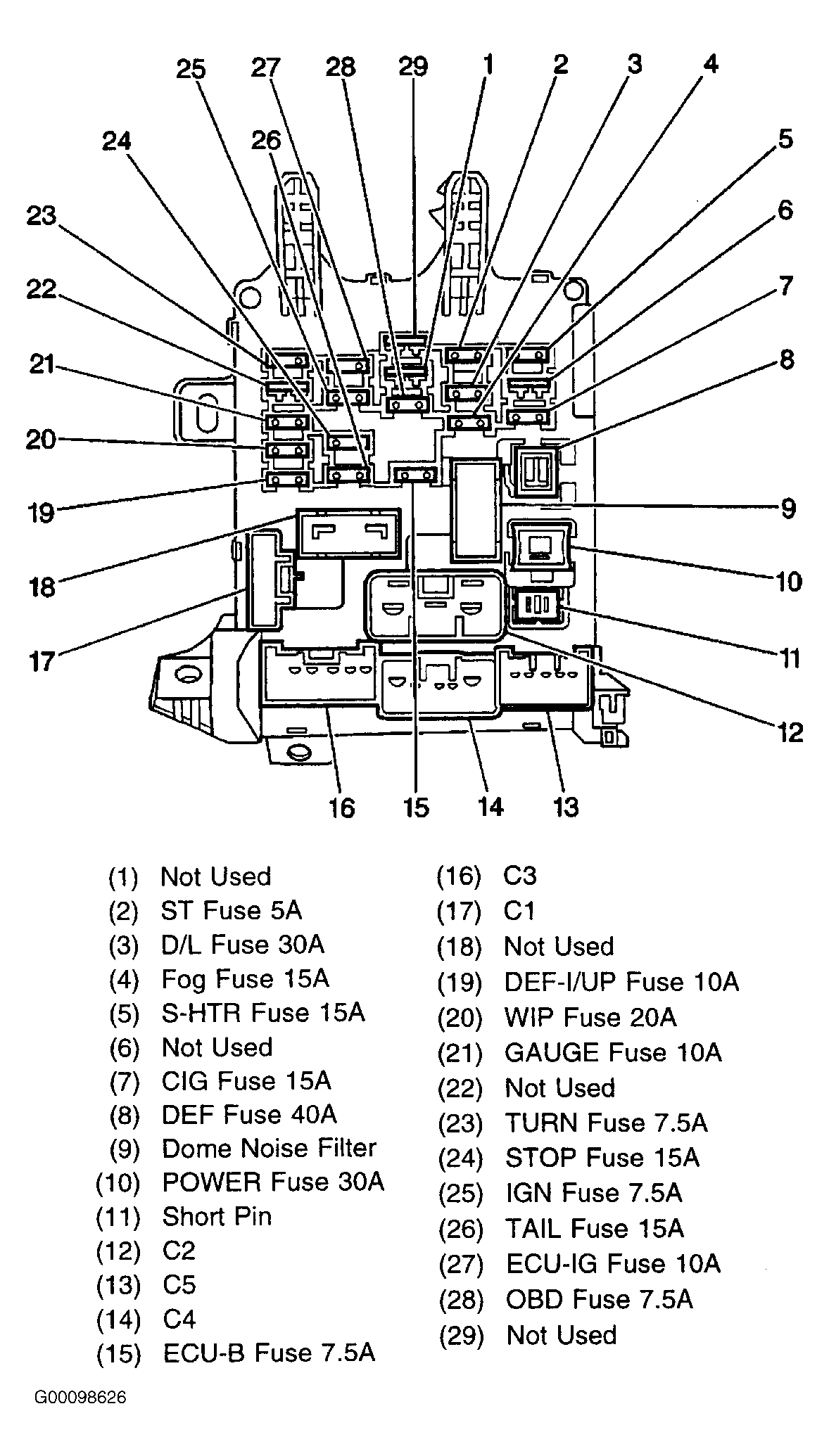

Fig 3: Identifying Junction Block 2
G00098626Courtesy of GENERAL MOTORS CORP.
