Generator Bracket Replacement

REMOVAL PROCEDURE




1. Remove the generator from the vehicle.
2. Remove the bolt from the oil level indicator tube bracket.

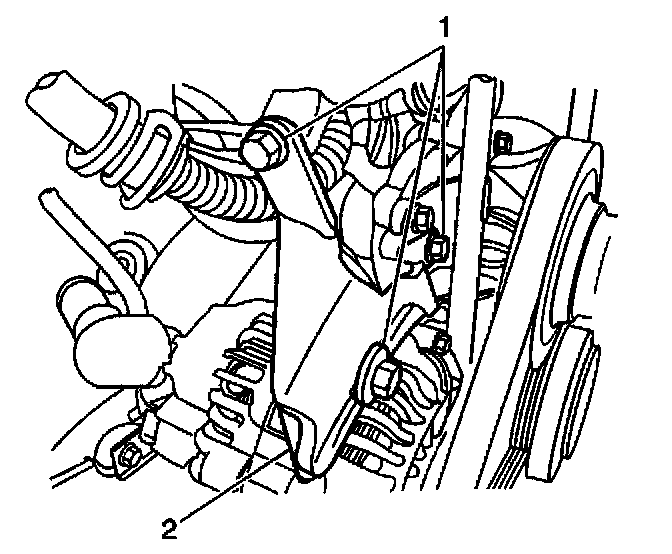

3. Remove the 3 bolts (1) and the upper generator bracket (2) from the vehicle.




4. Remove the 1 nut and 1 bolt and the lower generator bracket from the vehicle.

INSTALLATION PROCEDURE




1. Install the upper generator bracket (2) to the vehicle. Secure with the 3 bolts (1).
2. Install oil level indicator tube bracket bolt.




3. install the lower generator bracket to the vehicle. Secure with the 1 nut and 1 bolt.
4. Install the generator to the vehicle.
