Vehicle Speed Sensor: Installation

Install the one bolt (1) and the vehicle speed sensor (2) to the transmission adapter case. See Fig 1 . On all models, install the vehicle speed sensor electrical connector. Lower the vehicle. Connect the negative battery cable.

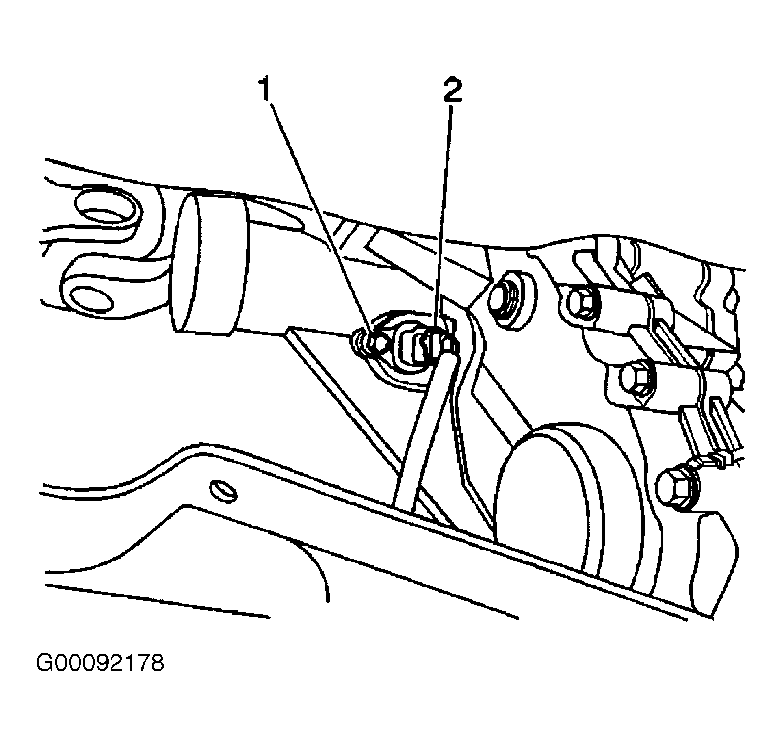

Fig 1: Removing & Installing Vehicle Speed Sensor

Courtesy of GENERAL MOTORS CORP.
