Test B: Scan Tool Does Not Communicate With Components

For diagnostic procedures, refer to flowchart. See Fig 1.

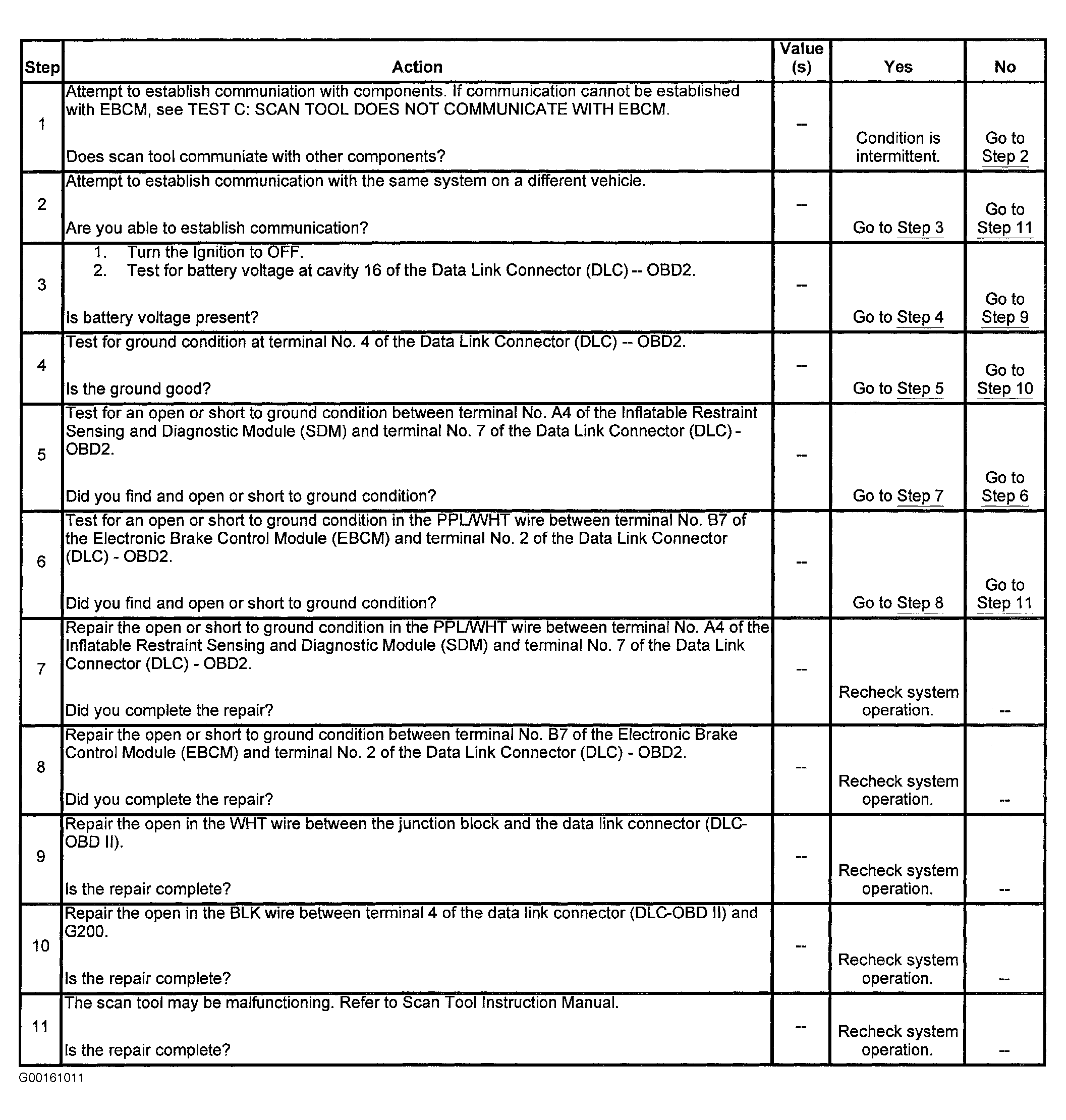

Fig 1: Test B: Scan Tool Does Not Communicate With Components
G00161011Courtesy of GENERAL MOTORS CORP.
