Fuse Block Application Table

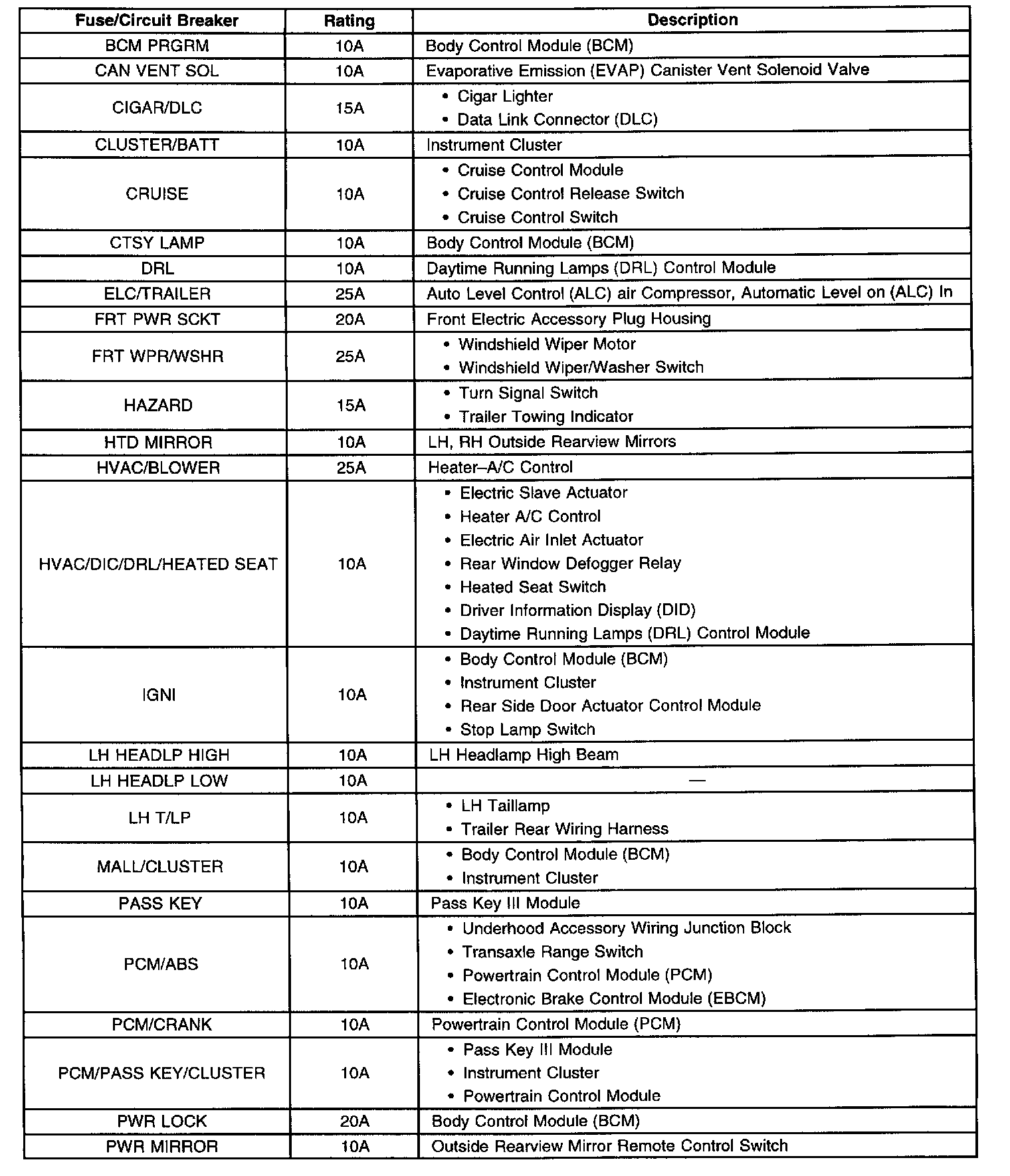

Fuse Block Application Table (Part 1 Of 2):

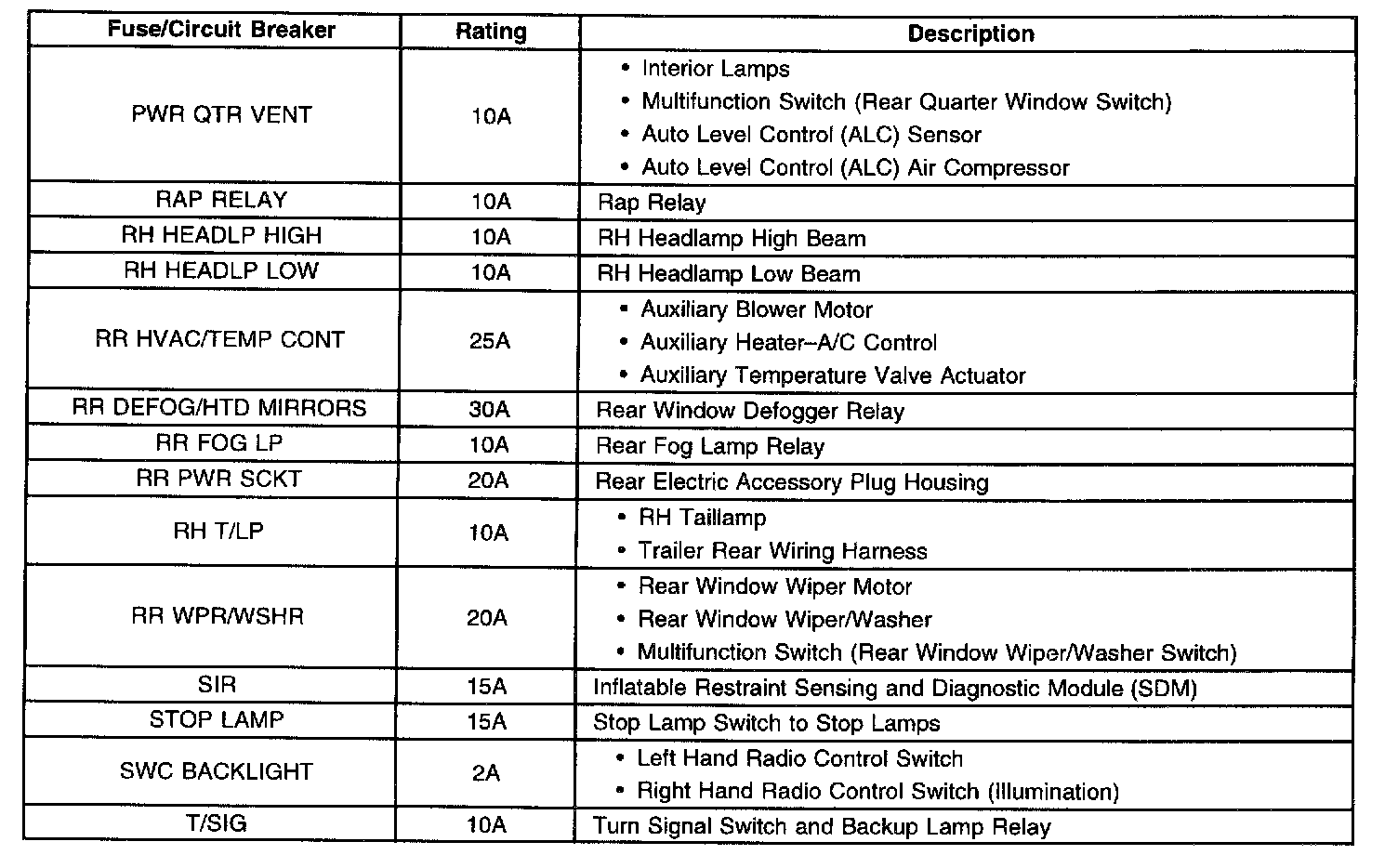

Fuse Block Application Table (Part 2 Of 2):
