Component Locations

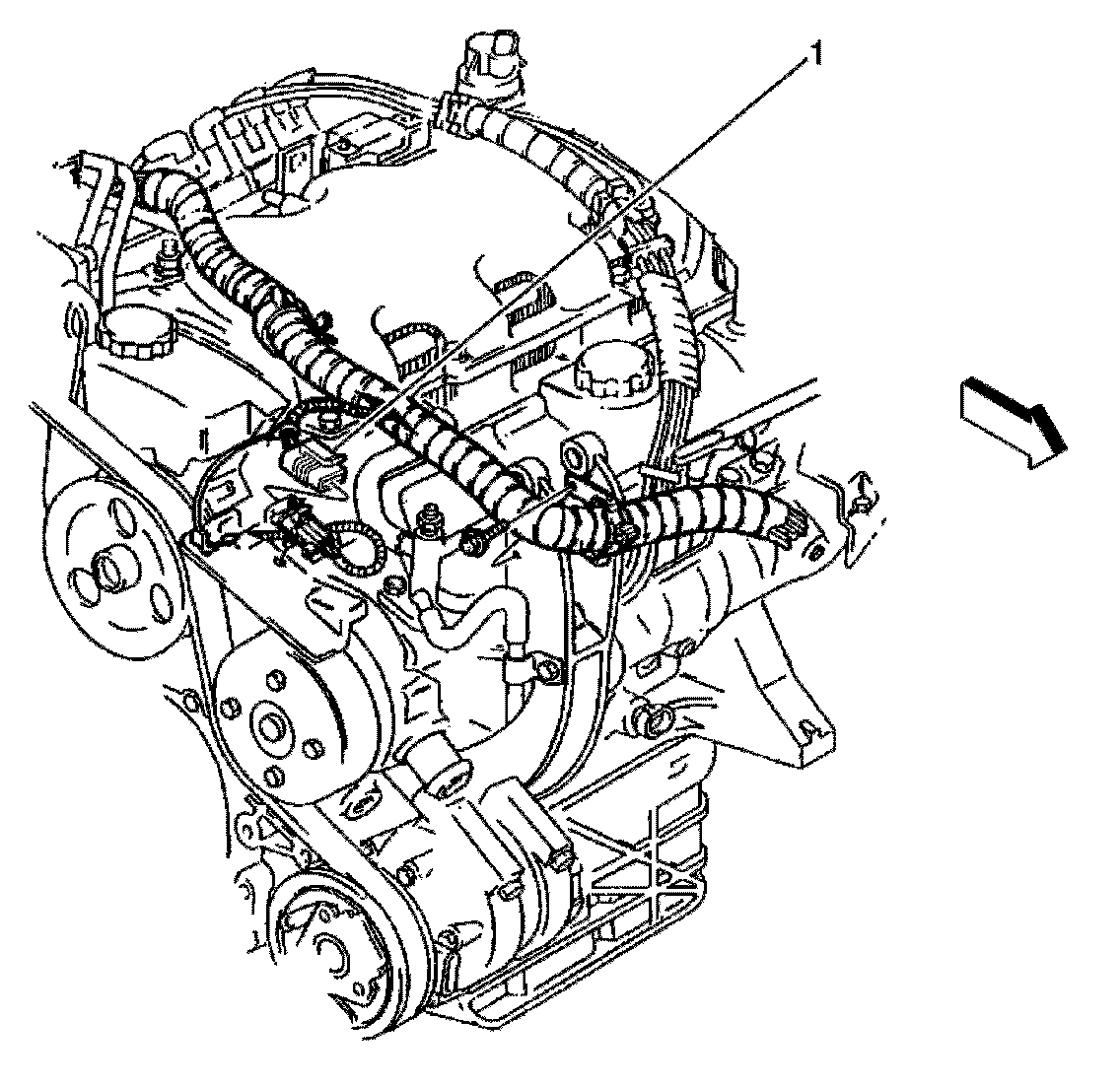

Camshaft Position (CMP) Sensor






(1) Camshaft Position Harness Connector

Note: The Camshaft Position (CMP) Sensor is located in the engine compartment, right side of the engine, above the A/C compressor clutch.
