Automatic Transaxle (C111)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

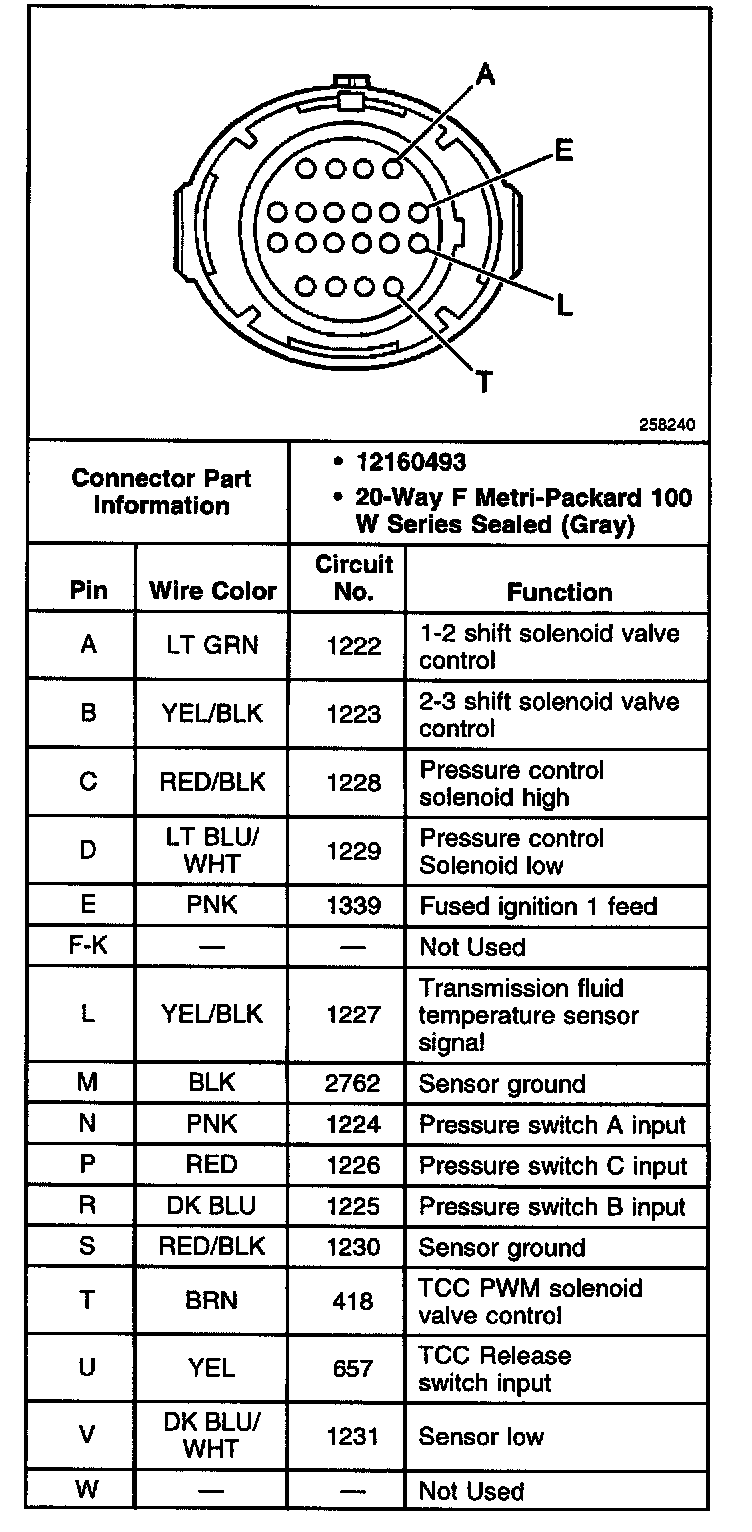

Automatic Transaxle (C111)
Automatic Transaxle (C111):
