RAP Fuse, Body Control Module

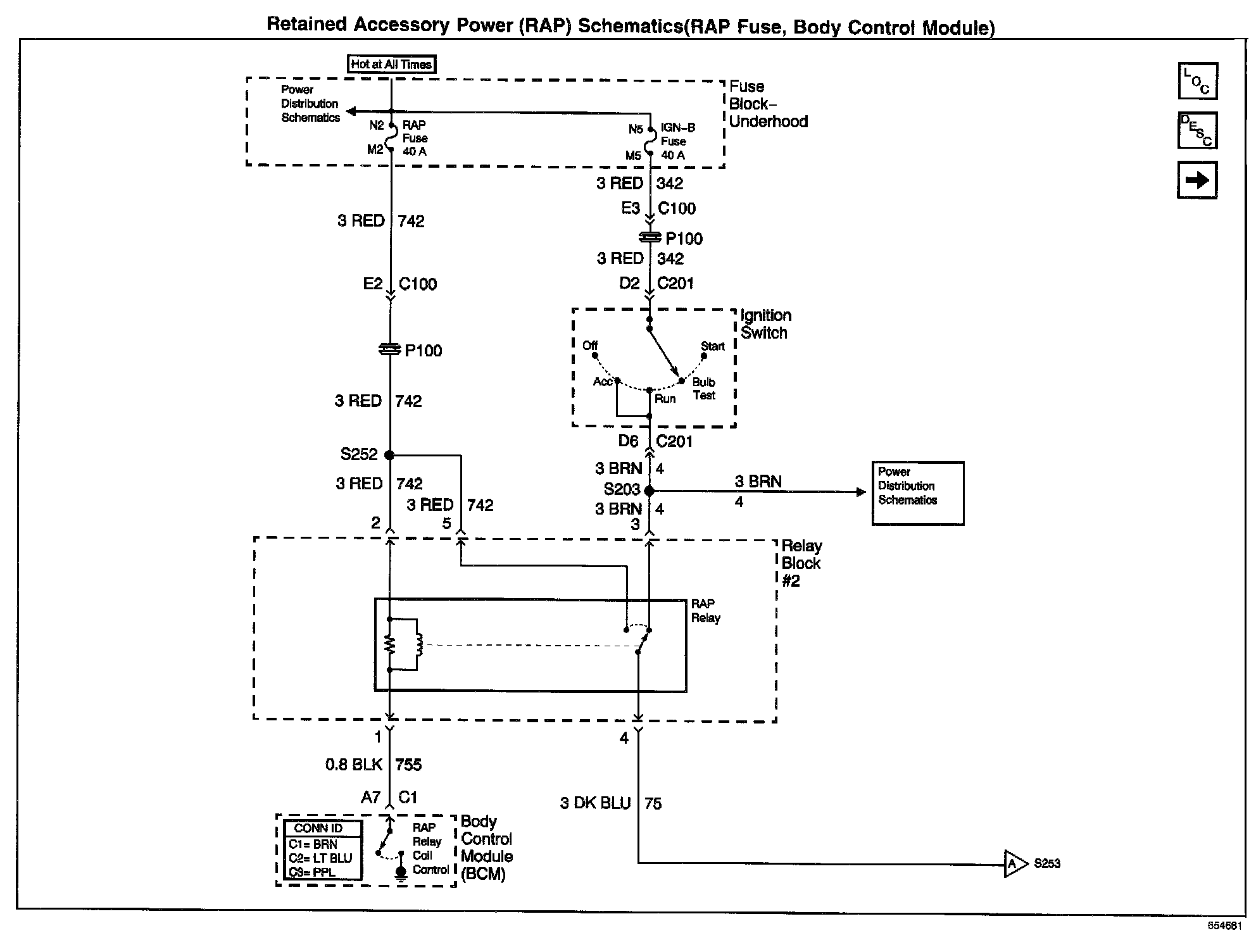

Retained Accessory Power (RAP) Schematics: RAP Fuse, Body Control Module:
