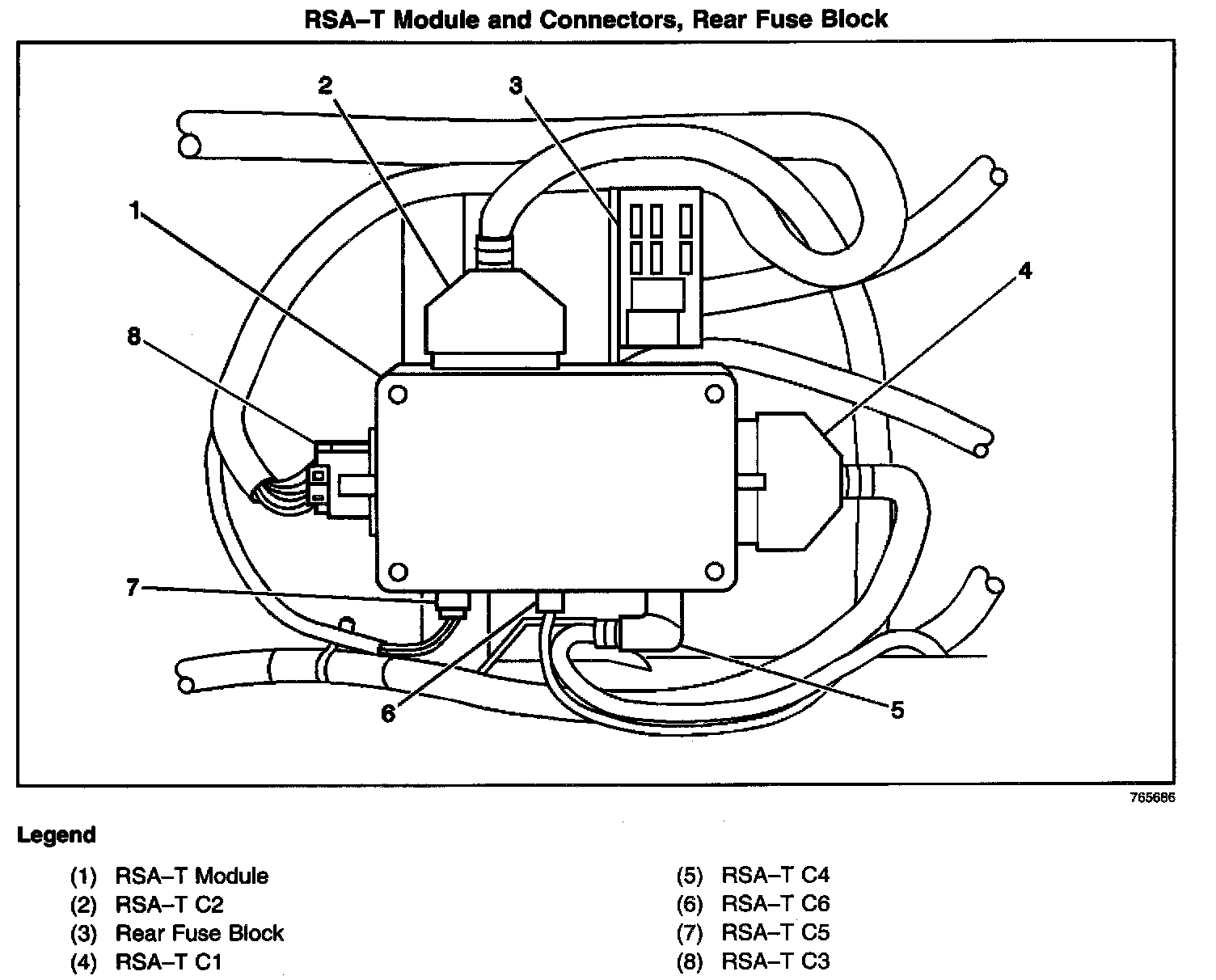

RSA-T Module

Locations View:




Behind the left side interior panel to the rear of the driver door, above the rear heater duct
