Passlock Module Connector (Domestic)

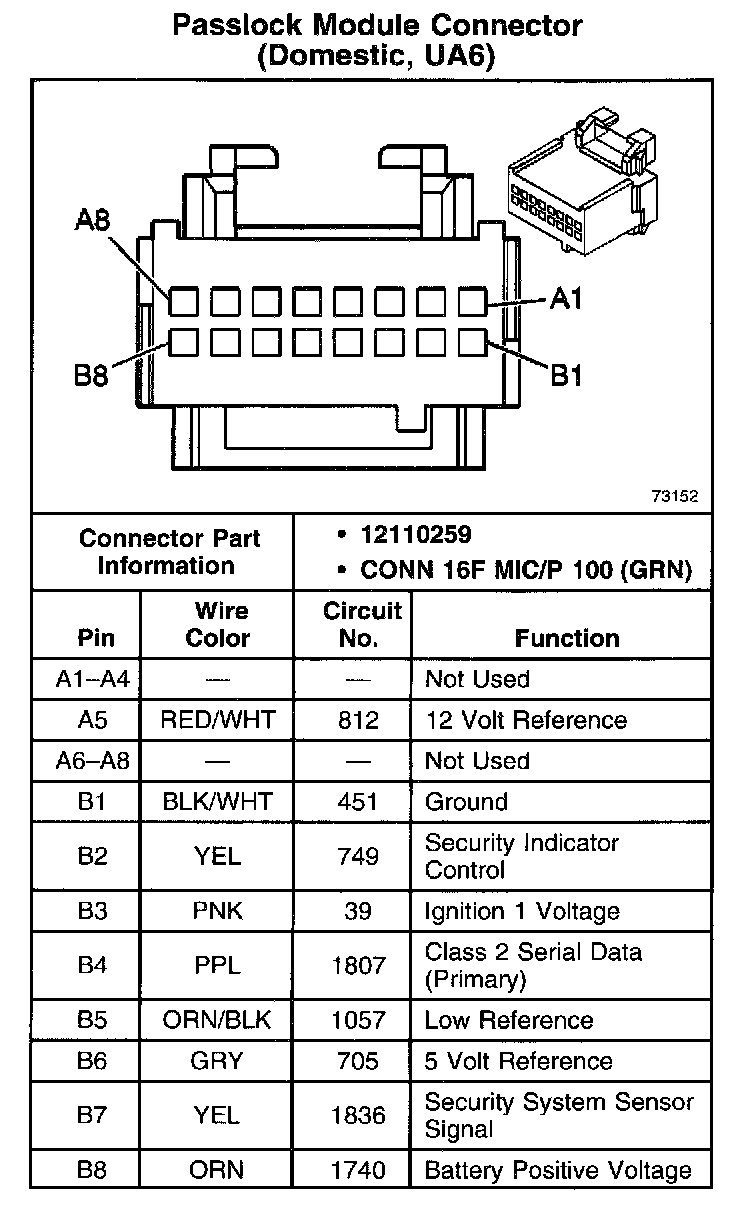

Passlock Module Connector (Domestic, UA6):





"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID". RPO Codes
