Chevrolet
>>
2001
>>
Impala V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Power Window Switch
>>
Diagrams
>>
Connector Views
>>
Window Switch-Driver, C2
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Window Switch-Driver, C2

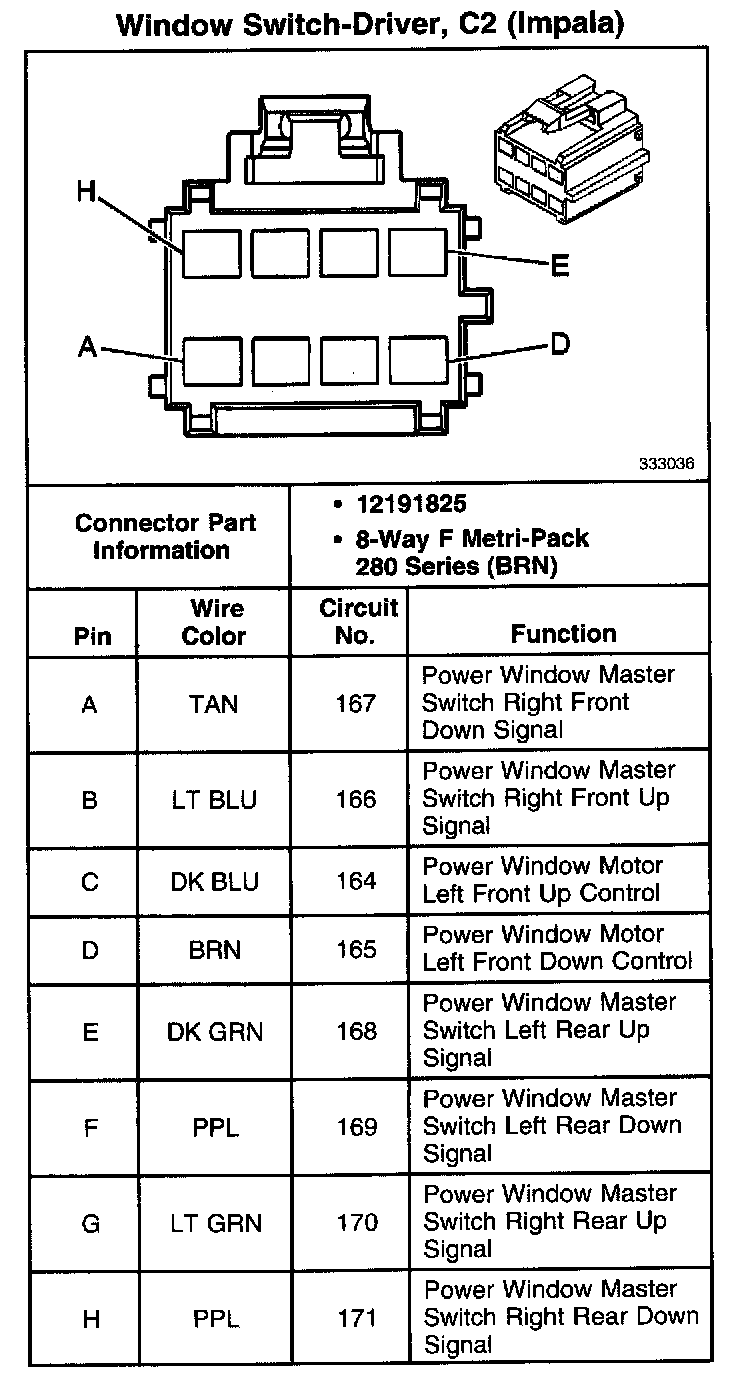

Window Switch-Driver, C2 (Impala):
