Transaxle Range Switch: Installation

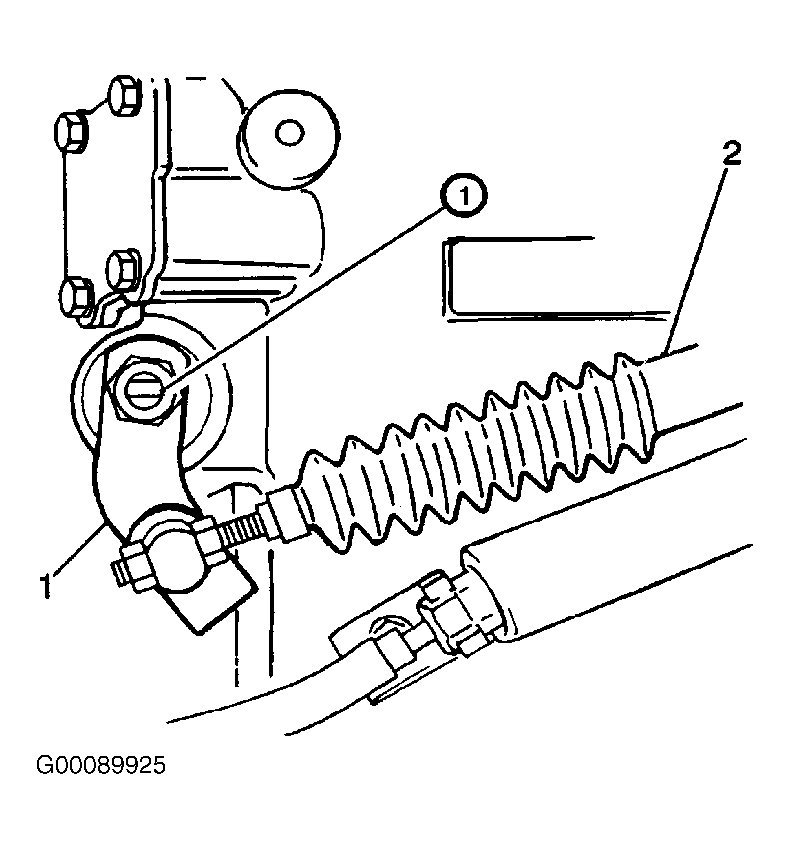

- Move the transaxle lever (1) to the NEUTRAL position. See Fig 2.
- Adjust the TR switch (1) by using a standard flat-bladed screwdriver. Turn the TR switch clockwise or counterclockwise until you hear 2 clicks. See Figure.
- Install the TR switch (4) to the transaxle. Install the bolt (1) in order to retain the switch and tighten the TR switch mounting bolt to specification. See TORQUE SPECIFICATIONS .
- Connect the TR switch electrical connector at the engine wiring harness. Install the TR switch harness into the retaining clamps. Connect the negative battery cable.
- Upon completion of the TR switch installation, perform the following steps in order to ensure proper operation:
- Apply the parking brake, and block the vehicle wheels.
- With the gearshift lever (5) in the PARK position, turn the ignition switch to the START position. Verify that the starter motor operates.
- Stop the engine, and return the ignition switch to the ON position.
- Move the shift selector lever (5) from the PARK position to the NEUTRAL position. Turn the ignition switch to the START position, and verify that the starter motor operates.
- Verify that the starter motor does not operate in DRIVE, DRIVE-2, or LOW positions.
