Rear Window Motor/Regulator Assembly: Removal

  1. Remove rear door window.
  2. Remove 4 retaining bolts (1) and rear side door window regulator (3). See Fig 1 .

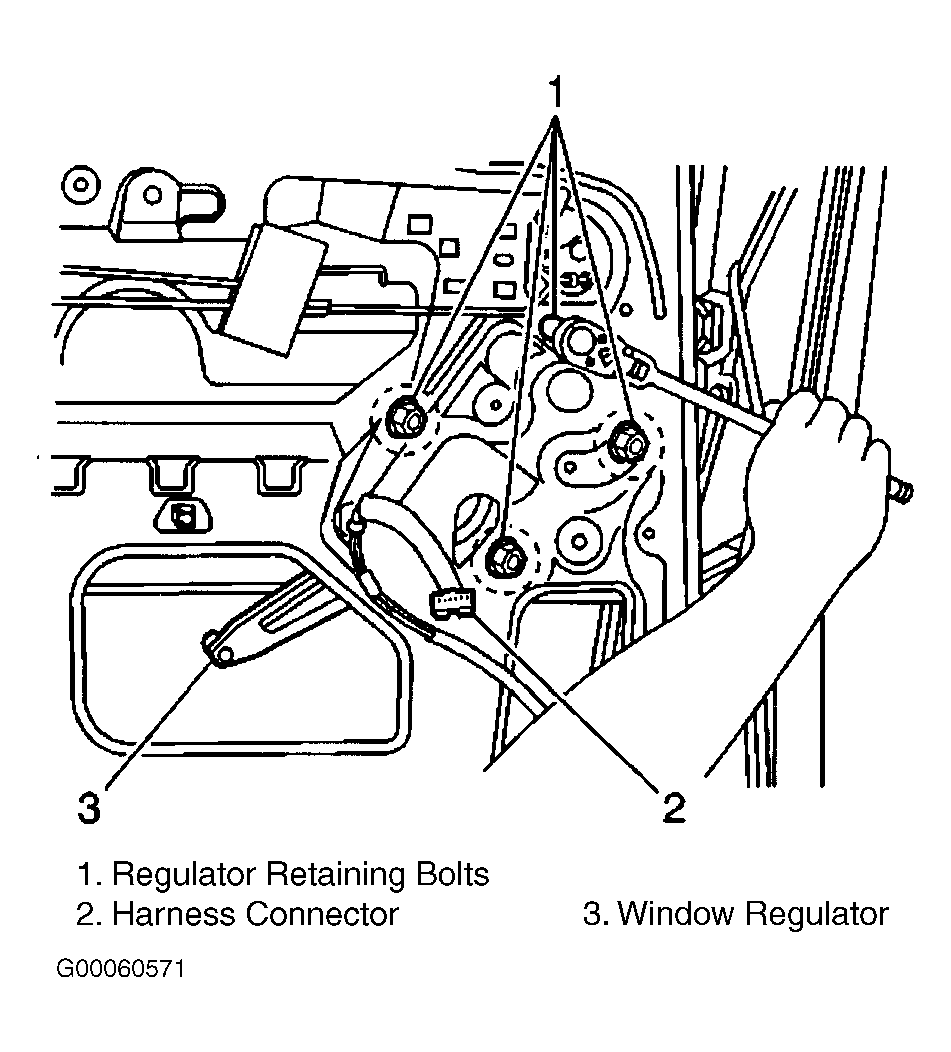

Fig 1: Removing Rear Window Regulator
G00060571Courtesy of GENERAL MOTORS CORP.
