Removal & Installation

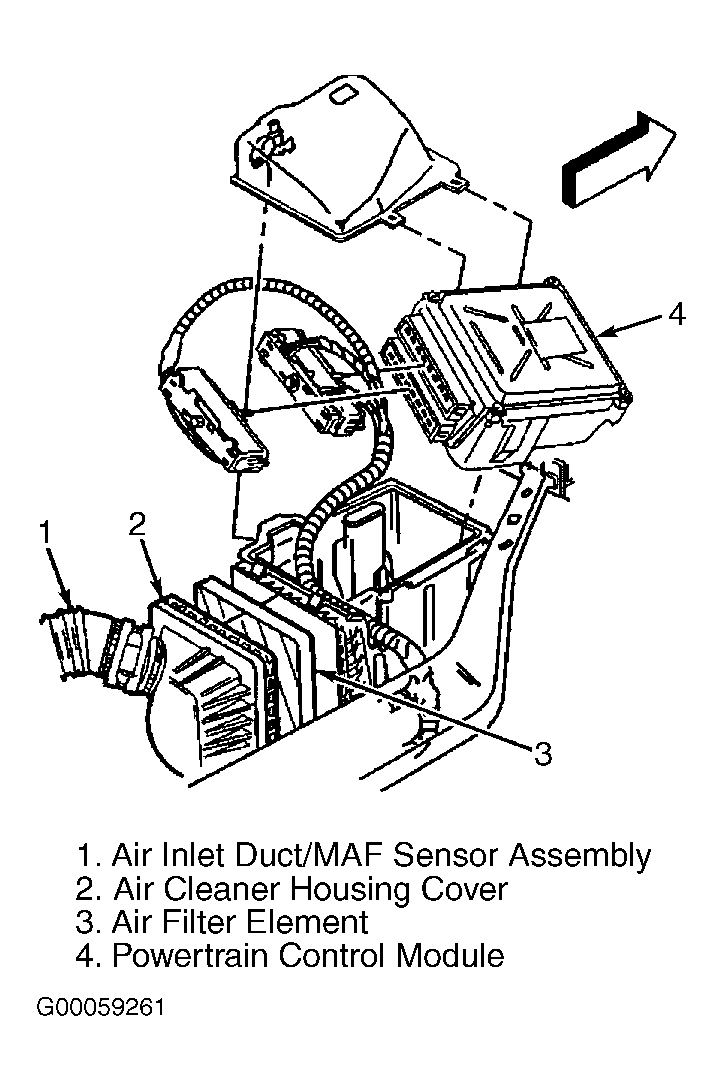

  1. Powertrain Control Module (PCM) is located in air cleaner housing. See Figure . Disconnect negative battery cable. Remove fastener from coolant tank. Remove coolant tank and set aside. Remove 3 bolts from support brace and remove brace. Disconnect Mass Air Flow (MAF) sensor harness connector. Loosen 2 clamps on air intake duct/MAF sensor assembly. Remove air inlet duct/MAF sensor assembly.
  2. Unsnap 2 air cleaner housing cover latches. Remove air cleaner housing cover. Remove air filter element. Unsnap latch on upper cover. Remove upper cover.
  3. Remove 2 PCM cover bolts. Remove PCM cover. Remove PCM. Disconnect PCM harnesses connectors. To install, reverse removal procedure. After repair, program PCM. See POWERTRAIN CONTROL MODULE  under PROGRAMMING.
