Installation Procedure

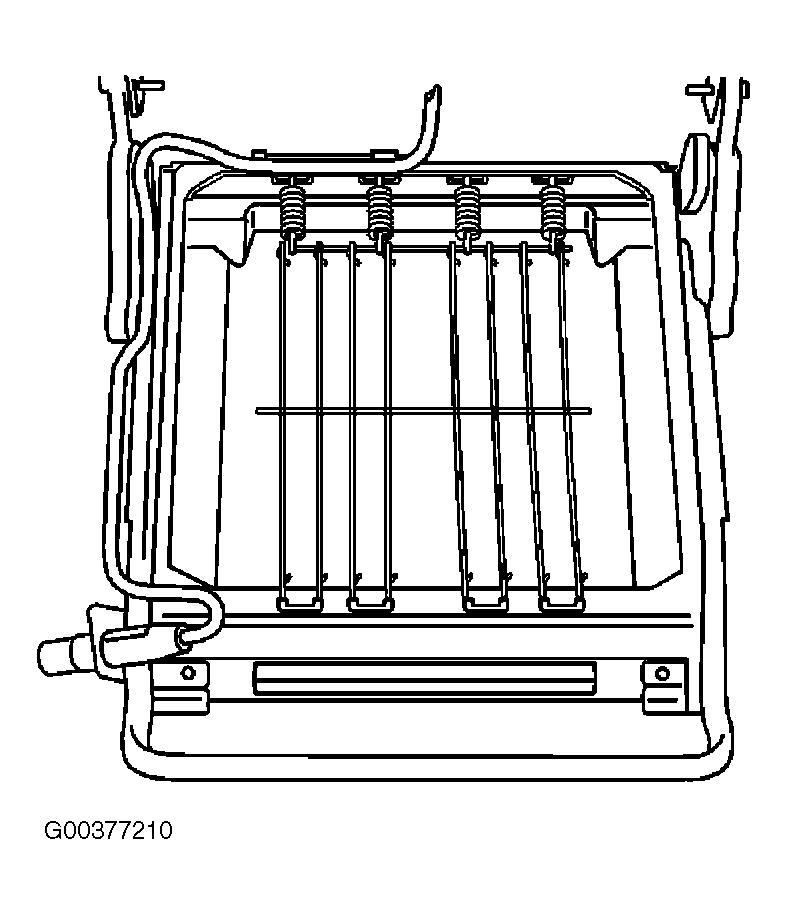

  1. Install the lumbar support cable and housing to the bucket seat cushion frame. See Figure.

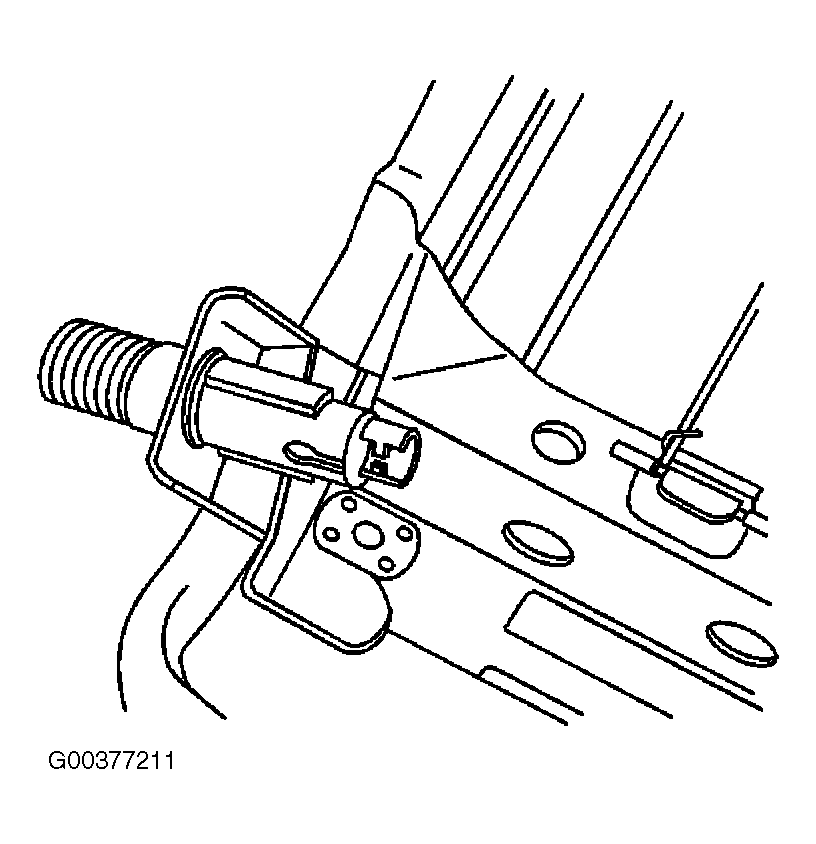

  2. Install the lumbar support cable to the side of the bucket seat cushion frame. See Figure.
  3. Install the lumbar support cable clip.
  4. Install the bucket seat cushion cover and pad. Refer to Seat Cushion Cover Replacement - Front (YC5 and YC6)  or Seat Cushion Cover Replacement - Front (YC7)  .

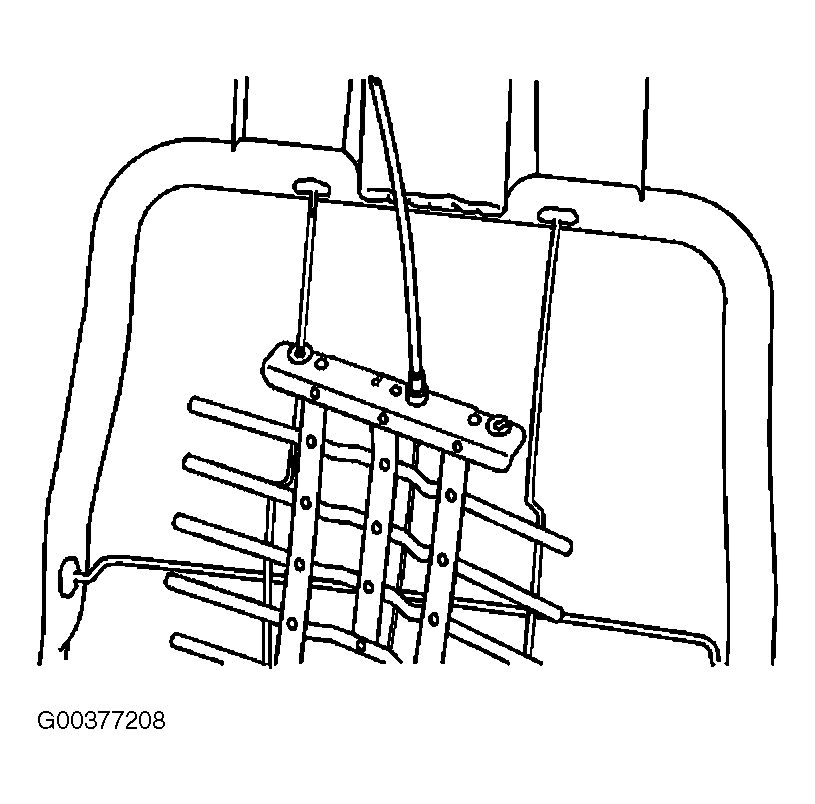

  5. Install the lumbar plate to the seat back frame. See Figure.
  6. Snap the corners of the lumbar plate to the seat back frame. See Figure.
  7. Connect the lumbar plate cable (1) to the lumbar plate. See Figure.
  8. Install the seat back cover and pad to the seat back frame. Refer to Seat Back Cover and Pad Replacement (YC5 and YC6)  or Seat Back Cover and Pad Replacement (YC7)  .
  9. Install the bucket seat in the vehicle. Refer to Seat Replacement - Bucket .
