Installation Procedure

IMPORTANT: Install new plastic retainer clips whenever the lock rods are removed.
  1. Install the lock rod lever to the door.
  2. Install the remote lock lever to the clip (2).
  3. Use the M 39010 in order to install door rivets.
    4. Fig 1: Removing & Installing Remote Lock Lever
    G02506750Courtesy of GENERAL MOTORS CORP.
  4. Install the lock rods to the remote lock lever.
  5. Install the water deflector and the armrest bracket. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  6. Install the trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR  .

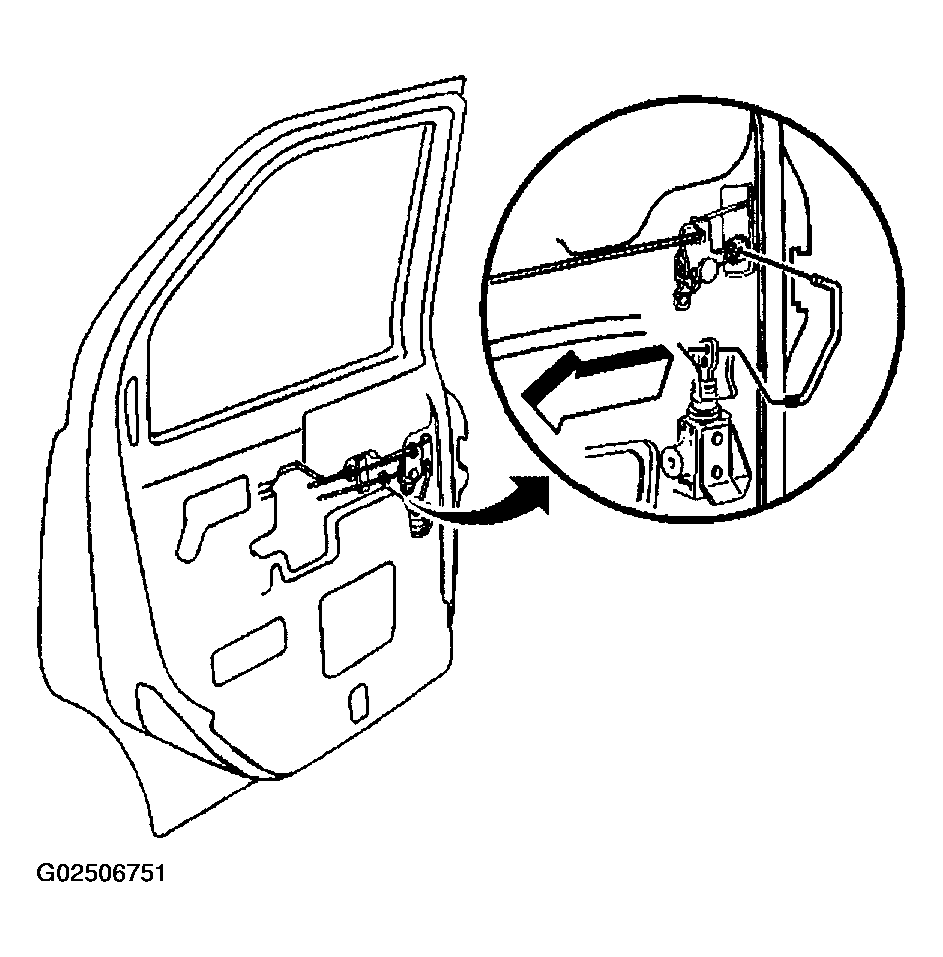

    7. Fig 2: Removing & Installing Remote Lock Lever Lock Rods
    G02506751Courtesy of GENERAL MOTORS CORP.
