Installation Procedure

  1. Install a stationary window into the opening. Refer to Urethane Adhesive Installation of Stationary Windows  .
  2. Connect the electrical connector to the rear window defogger on the liftgate window.
  3. Install the liftgate window garnish molding. Refer to GARNISH MOLDING REPLACEMENT - REAR UPPER .
  4. Close liftgate window.
  5. Install the back window wiper arm to the liftgate. Refer to WIPER ARM REPLACEMENT - REAR .
  6. Connect the washer hose to the liftgate.
  7. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.

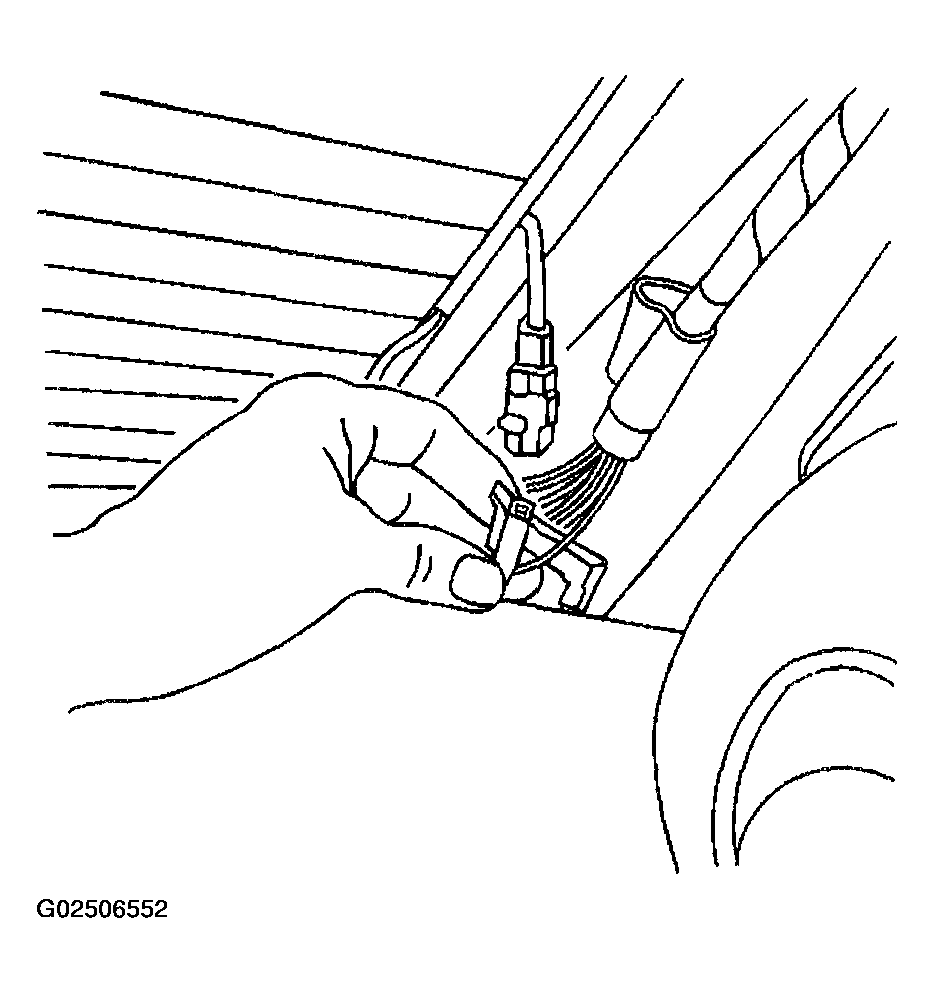

    Fig 1: Connecting Washer Hose
    G02506552Courtesy of GENERAL MOTORS CORP.
