Horns Component Views

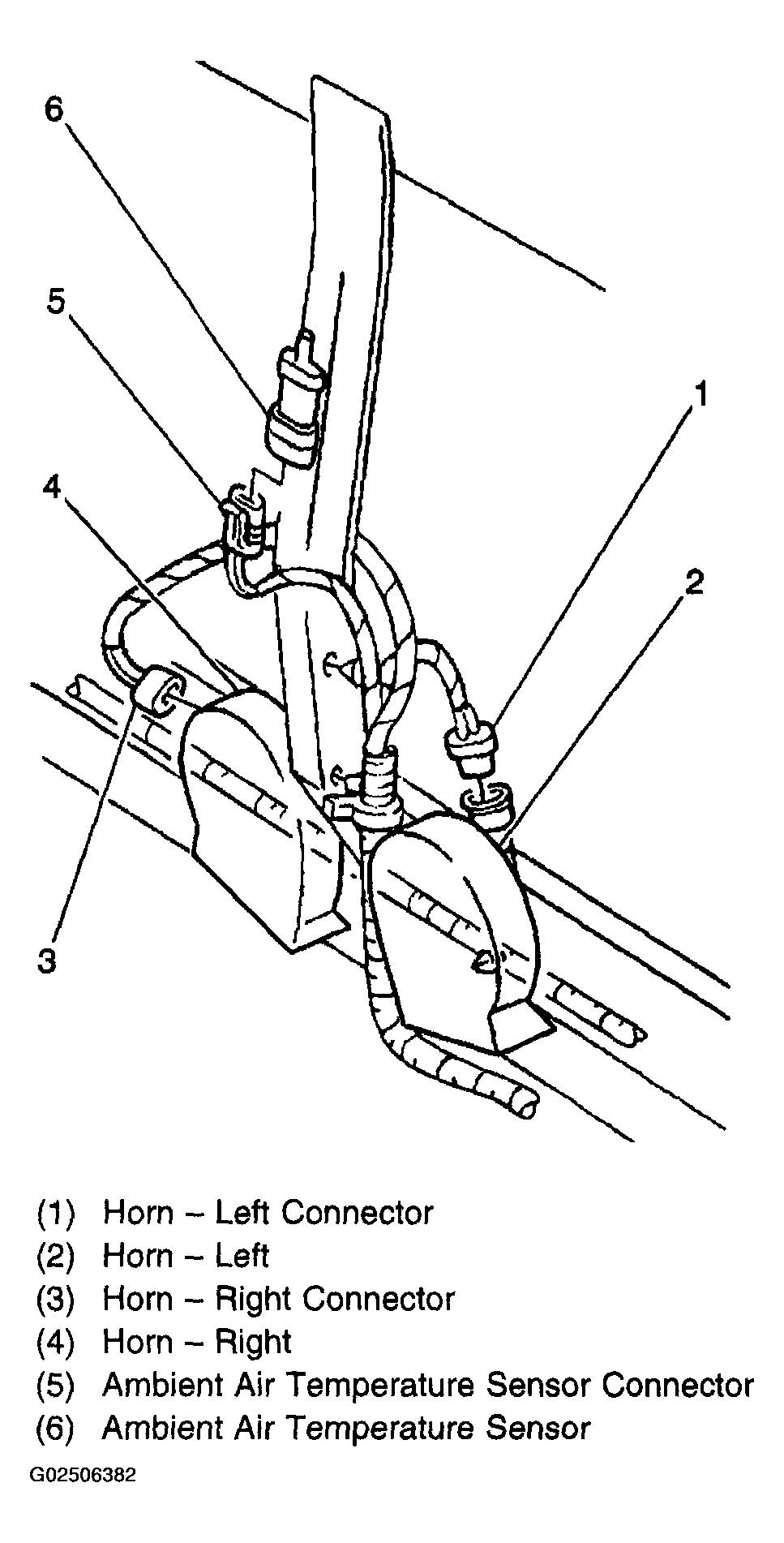

Fig 1: Identifying Front End Center Wiring Components
G02506382Courtesy of GENERAL MOTORS CORP.

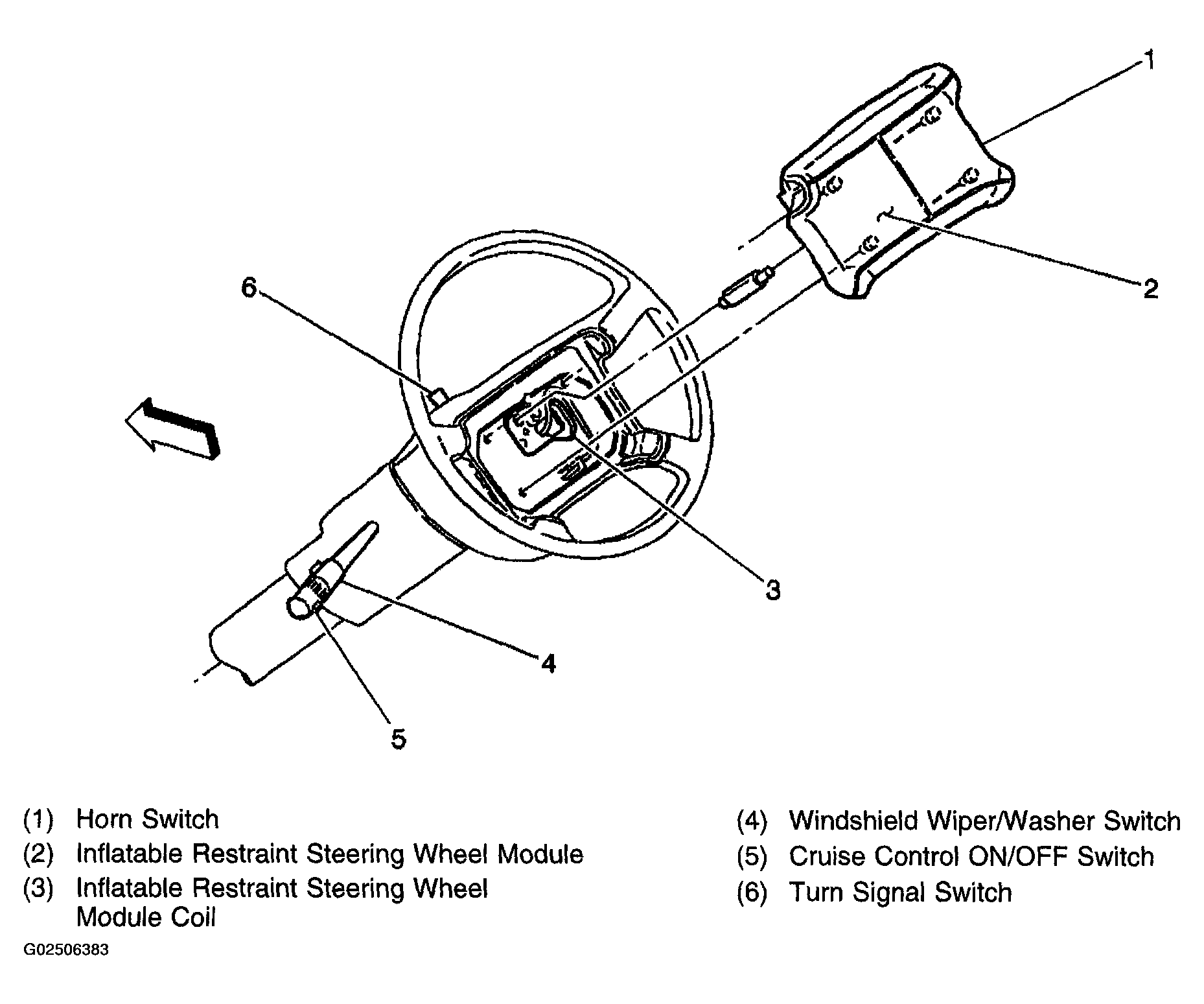

Fig 2: Identifying Steering Column Components
G02506383Courtesy of GENERAL MOTORS CORP.
