Camshaft Position Sensor: Removal
- Turn ignition off. Remove engine cover. Locate Camshaft Position (CMP) sensor. CMP sensor is located within distributor. See Fig 1
.
- Reference mark spark plug wires at distributor cap for reassembly. Slightly twist all spark plug wires and ignition coil wire at distributor cap. Remove all spark plug wires and ignition coil wire at distributor cap by pulling on the wire boot.
- Disconnect CMP sensor harness connector. Remove distributor cap retaining screws and distributor cap. Remove distributor rotor retaining screws and distributor rotor.

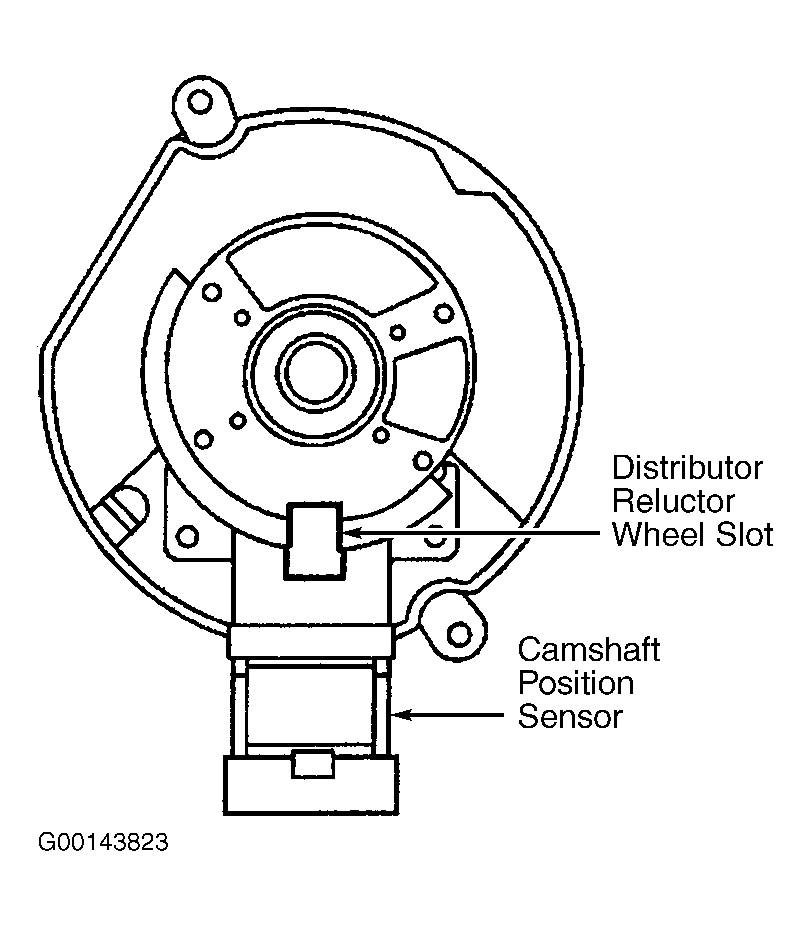

- Align square slot in distributor reluctor wheel with CMP sensor. See Fig 2
. Remove CMP sensor retaining screws and CMP sensor from distributor. See Fig 3
.
