Removal Procedure

  1. Open the child tether anchor bezel using a small flat-bladed tool.
  2. Remove the bolt from the child tether anchor.
  3. Remove the child tether anchor from the rear shelf.

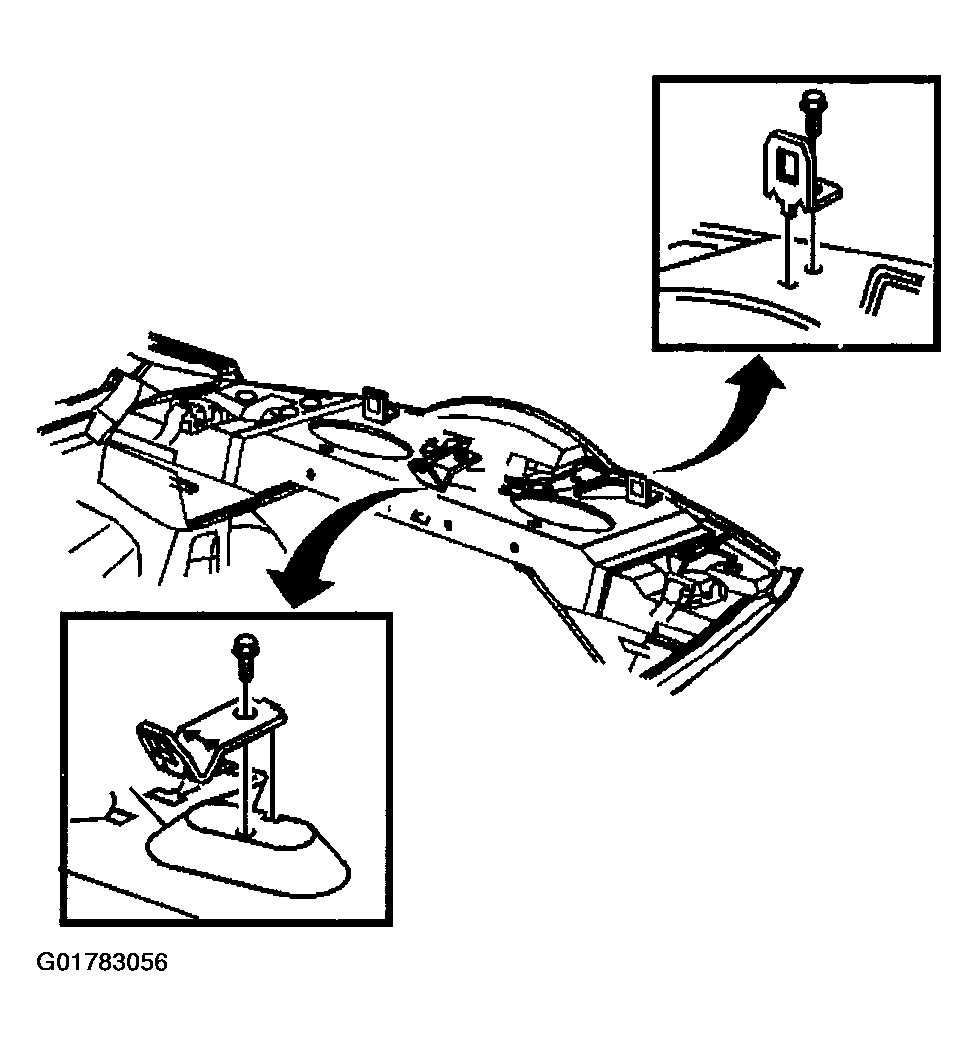

    Fig 1: Child Tether Anchor
    G01783056Courtesy of GENERAL MOTORS CORP.
